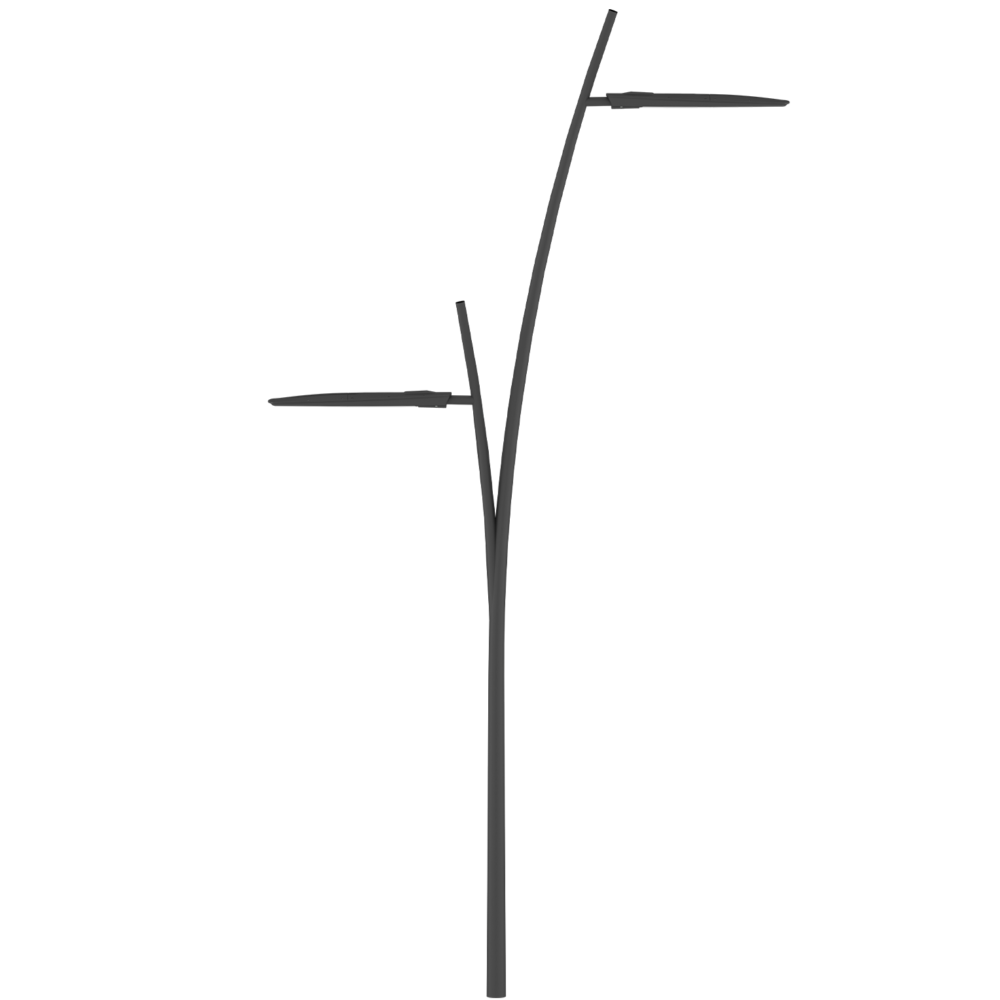

PI S2 series

Double staggered and unbeaded design pole

Pole PI S2 for public street lighting, conical in welded and unbeaded steel, made in a double section bent longitudinally with a plastic end piece. The pole is equipped with a standard shank with a diameter of 60 mm. Underground fixing. Slot for a terminal block with a cut edge finish is also suitable for the application of a recessed door flush with the pole.

Sezione circolare Made in Italy

Pole PI S2 for public street lighting, conical in welded and unbeaded steel, made in a double section bent longitudinally with a plastic end piece. The pole is equipped with a standard shank with a diameter of 60 mm. Underground fixing. Slot for a terminal block with a cut edge finish is also suitable for the application of a recessed door flush with the pole.

Sezione circolare

Made in Italy

Characteristics

Pole PI S2 for public street lighting in welded and unbeaded steel, made in a double section bent longitudinally with a plastic end piece. The pole is equipped with a standard shank with a diameter of 60 mm. Underground fixing.

Choose from the five available heights

PI 6 S2

Height 6000 mm
Staggered light point height 4000 mm
Dimension at the base Ø 136 mm
Dimension at the top Ø 60 mm
Spigot Ø 60 mm
In-ground 800 mm

PI 7 S2

Height 7000 mm
Staggered light point height 5000 mm
Dimension at the base Ø 146 mm
Dimension at the top Ø 60 mm
Spigot Ø 60 mm
In-ground 800 mm

PI 8 S2

Height 8000 mm
Staggered light point height 5500
Dimension at the base Ø 156 mm
Dimension at the top Ø 60 mm
Spigot Ø 60 mm
In-ground 800 mm

PI 9 S2

Height 9000 mm
Staggered light point height 6000
Dimension at the base Ø 166 mm
Dimension at the top Ø 60 mm
Spigot Ø 60 mm
In-ground 800 mm

PI 10 S2

Height 10000 mm
Staggered light point height 7000
Dimension at the base Ø 176 mm
Dimension at the top Ø 60 mm
Spigot Ø 60 mm
In-ground 800 mm

The available colours

Hot dip galvanizing according to ISO 1461 and subsequent brushing to ensure a perfect surface finish. Polyester powder coating.

Graphite

Code 01

Black

Code 02

Silver

Code 03

Sand

Code 04

Colore RAL

RAL colours

On request

Imagine the PI S2 pole combined with the product

Standard spigot for luminaires with Ø 60 mm fixing

ARMODUE

COMPASS

Q-DROME

STYLO

ITALO

Other poles that may interest you similar to the PI S2

Discover the other poles that complete the series for design public lighting

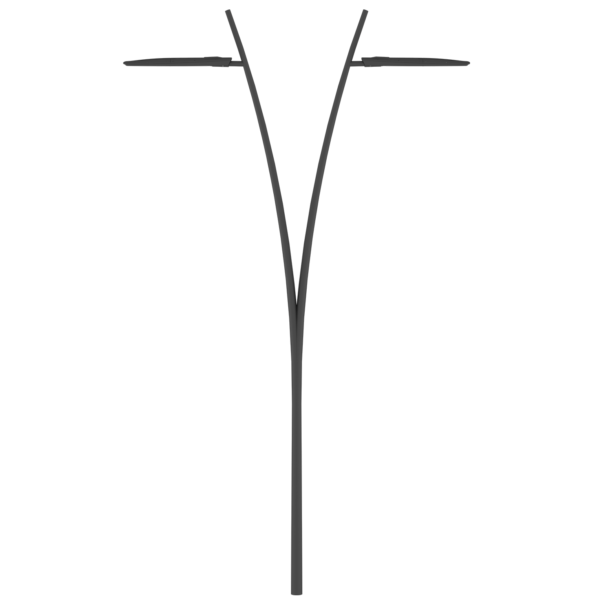

PI D2 series

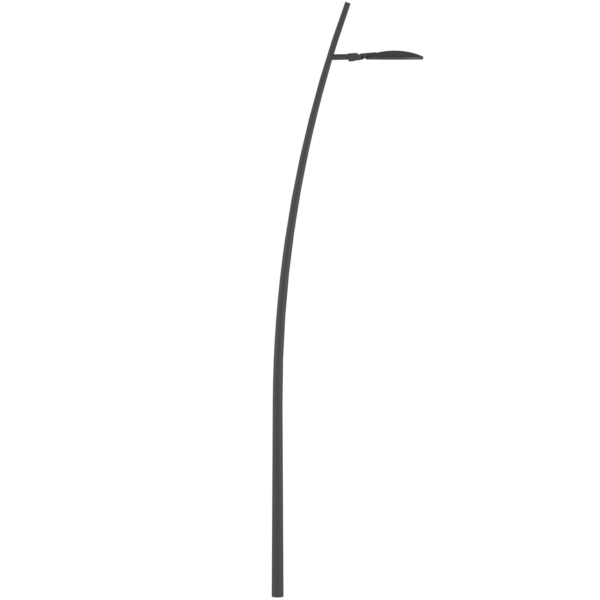

PI series

Do not miss the opportunity to learn more…

Our LED solutions for parking lot lighting areas

Discover our solutions

How to highlight the monuments of a city

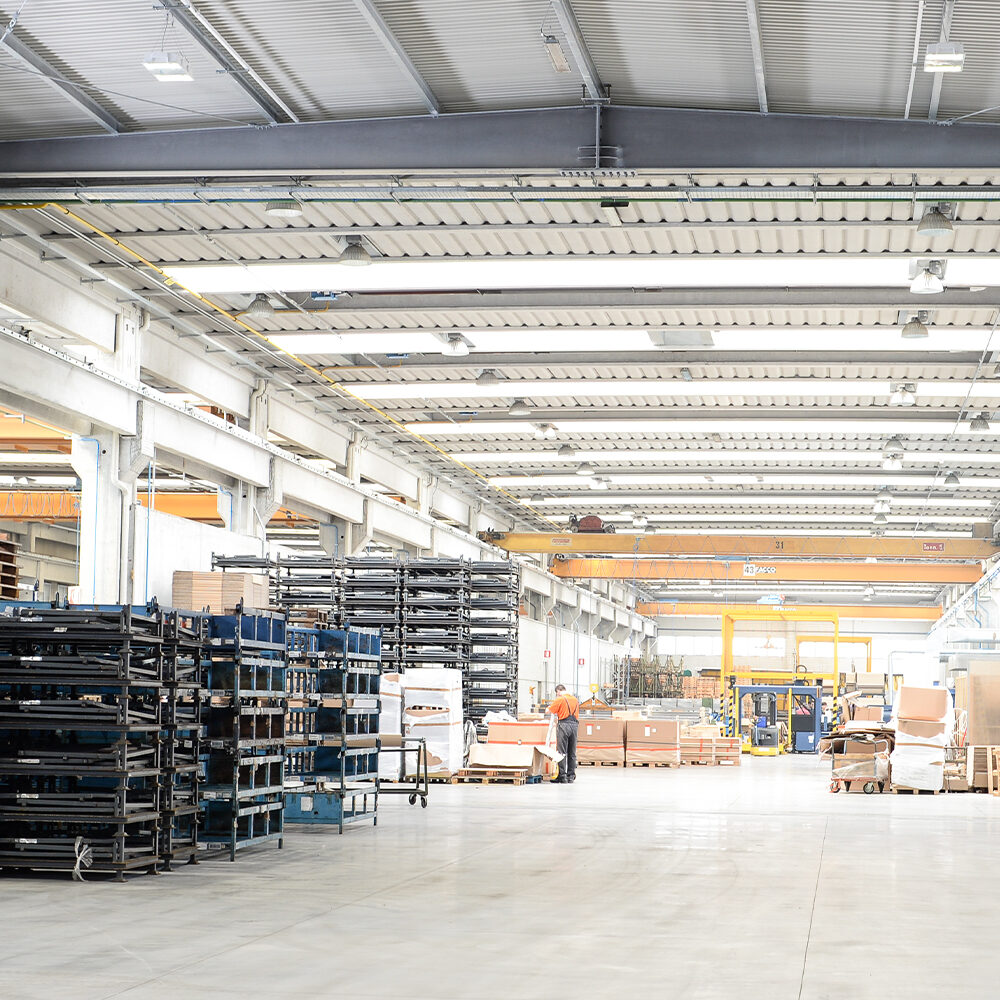

Efficient LED solutions for industrial warehouse
