PI D2 series

Double-section steel design pole

Conical pole PI D2 for public lighting in welded and unbeaded steel, made in double section bent longitudinally with plastic ends. The pole is equipped with a standard double tang with a diameter of 60 mm.

Go to download

Circular section Made in Italy

Circular section

Made in Italy

Characteristics

The conical pole has two standard elbows with a diameter of 60 mm. Slot for terminal block with fineness of the cut edge, also suitable for the application of the recessed door with stick edge. Hot dip galvanizing according to UNI EN ISO 1461 and subsequent brushing to ensure a perfect surface finish. Polyester powder coating.

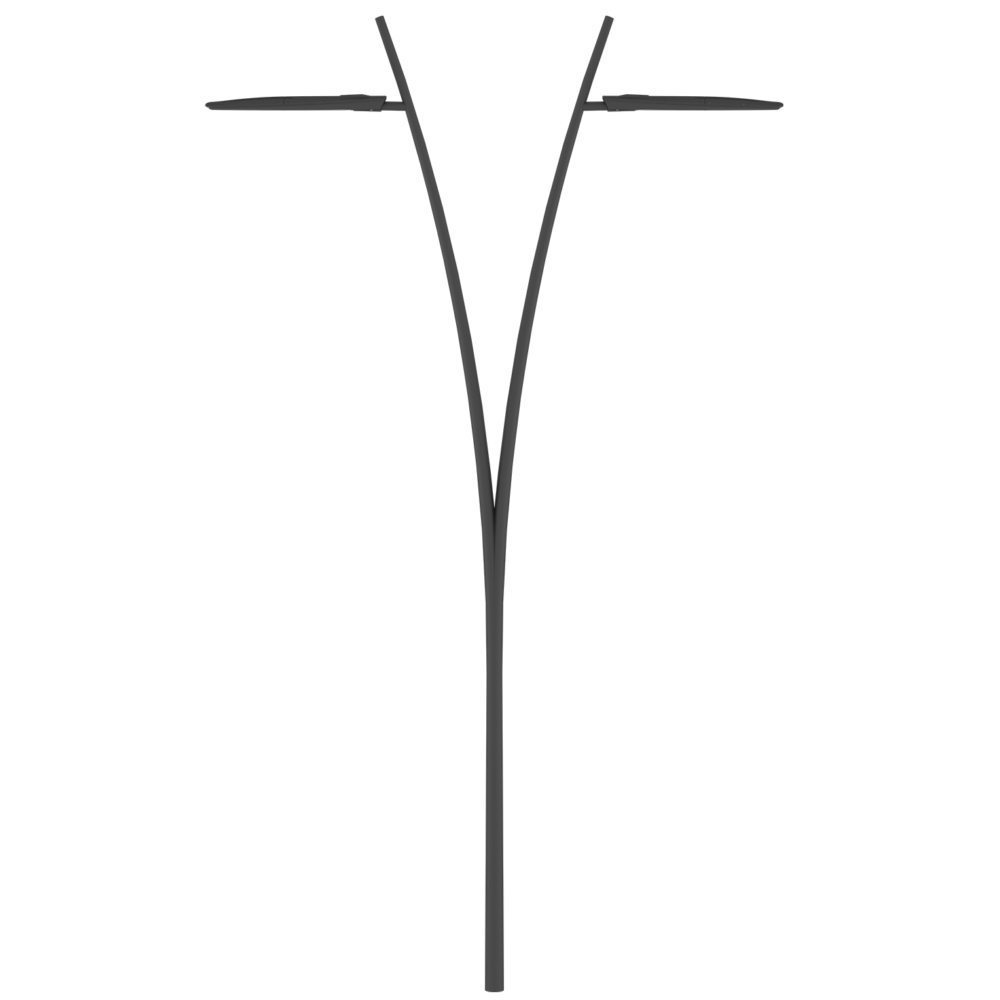

Pole PI D2

Ideal for urban lighting

Download the DWG

Five heights available

PI 6 D2

Height of light points 6000 mm
Base dimension Ø 136 mm
Dimension at the top Ø 60 mm
Spigot connection Ø 60 mm
In-ground 800 mm

PI 7 D2

Height of light points 7000 mm
Base dimension Ø 146 mm
Dimension at the top Ø 60 mm
Spigot connection Ø 60 mm
In-ground 800 mm

PI 8 D2

Height of light points 8000 mm
Base dimension Ø 156 mm
Dimension at the top Ø 60 mm
Spigot connection Ø 60 mm
In-ground 800 mm

PI 9 D2

Height of light points 9000 mm
Base dimension Ø 166 mm
Dimension at the top Ø 60 mm
Spigot connection Ø 60 mm
In-ground 800 mm

PI 10 D2

Height of light points 10.000 mm
Base dimension Ø 176 mm
Dimension at the top Ø 60 mm
Spigot connection Ø 60 mm
In-ground 800 mm

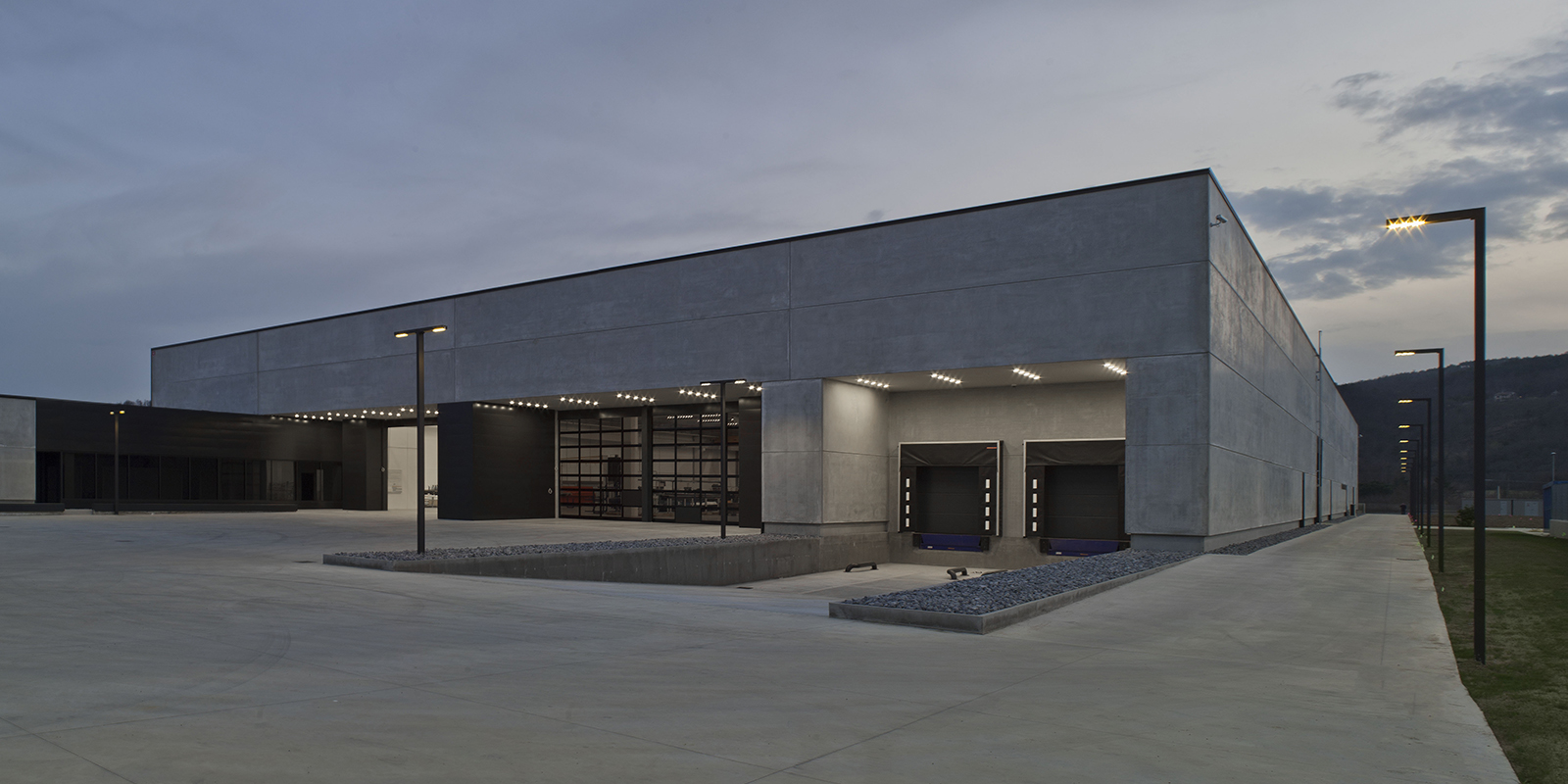

Did you know that our poles are all made in Tuscany?

Discover more

Check out the poles similar to PI D2

Pali di design per illuminazione pubblica stradale e urbana

PV series

PI S2 series

Available colours

Hot dip galvanizing according to UNI EN ISO 1461 and subsequent brushing to ensure a perfect surface finish. Polyester powder coating.

Graphite

Code 01

Black

Code 02

Silver

Code 03

Sand

Code 04

RAL

On request

LED luminaires compatible with the PI D2 pole

Standard connection spigot for luminaires with Ø 60 mm connection
