Poles

PI series

Curved conical pole with single shelf

Conical pole in welded and unbeaded steel, made in a single section bent longitudinally with a plastic end piece. The pole is equipped with a standard tang with a diameter of 60 mm. Underground fixing. Slot for a terminal block with a cut edge finish, also suitable for the application of a recessed door flush with the pole.

Go to download

Circular section Made in Italy

Conical pole in welded and unbeaded steel, made in a single section bent longitudinally with a plastic end piece. The pole is equipped with a standard tang with a diameter of 60 mm. Underground fixing. Slot for a terminal block with a cut edge finish, also suitable for the application of a recessed door flush with the pole.

Circular section

Made in Italy

Characteristics

Conical pole PI for public street lighting in welded and unbeaded steel, made in a single section bent longitudinally with a plastic end piece. The pole is equipped with a standard tang with a diameter of 60 mm. Underground fixing. Slot for a terminal block with a cut edge finish, also suitable for the application of a recessed door flush with the pole.

Five available heights

PI 6

Height 6000 mm
Dimension at the base Ø 136 mm
Dimension at the top Ø 60 mm
Spigot Ø 60 mm
In-ground 800 mm

PI 7

Height 7000 mm
Dimension at the base Ø 146 mm
Dimension at the top Ø 60 mm
Spigot Ø 60 mm
In-ground 800 mm

PI 8

Height 8000 mm
Dimension at the base Ø 156 mm
Dimension at the top Ø 60 mm
Spigot Ø 60 mm
In-ground 800 mm

PI 9

Height 9000 mm
Dimension at the base Ø 166 mm
Dimension at the top Ø 60 mm
Spigot Ø 60 mm
In-ground 800 mm

PI 10

Height 10000 mm
Dimension at the base Ø 176 mm
Dimension at the top Ø 60 mm
Spigot Ø 60 mm
In-ground 800 mm

The available colours

Hot dip galvanizing according to ISO 1461 and subsequent brushing to ensure a perfect surface finish. Polyester powder coating.

Graphite

Code 01

Black

Code 02

Silver

Code 03

Sand

Code 04

Colore RAL

RAL colours

On request

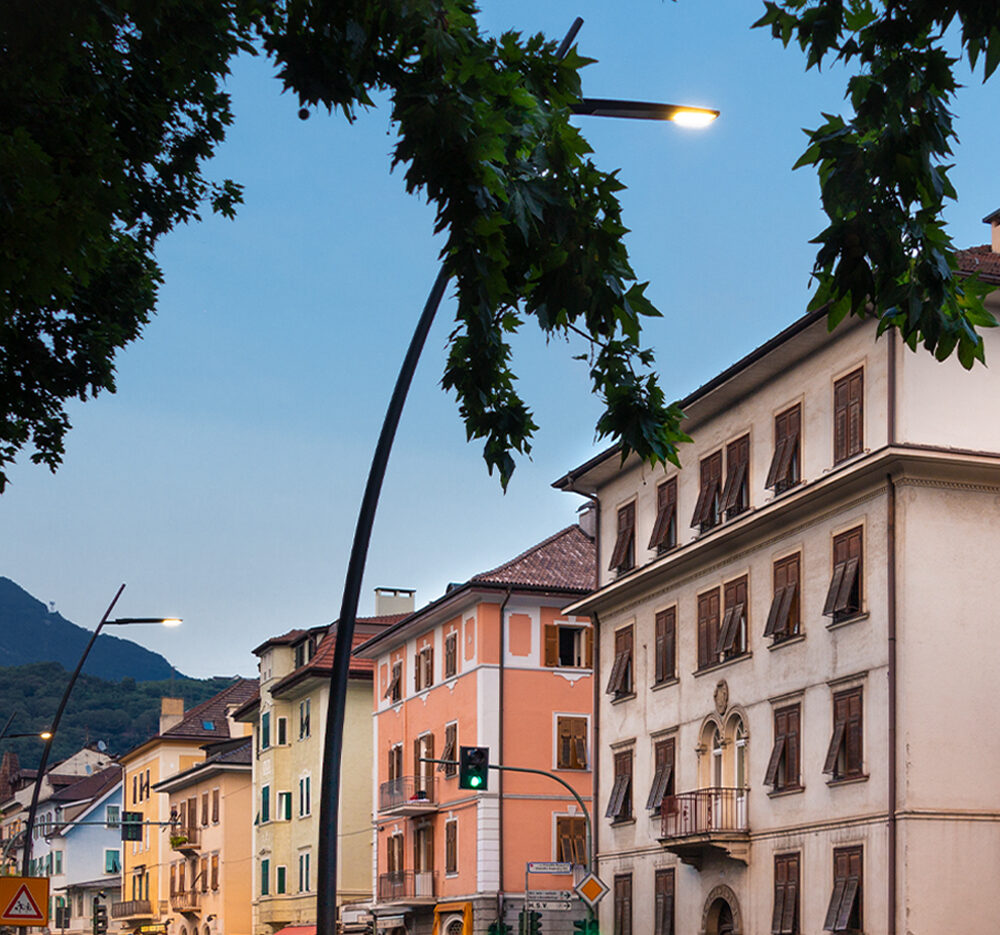

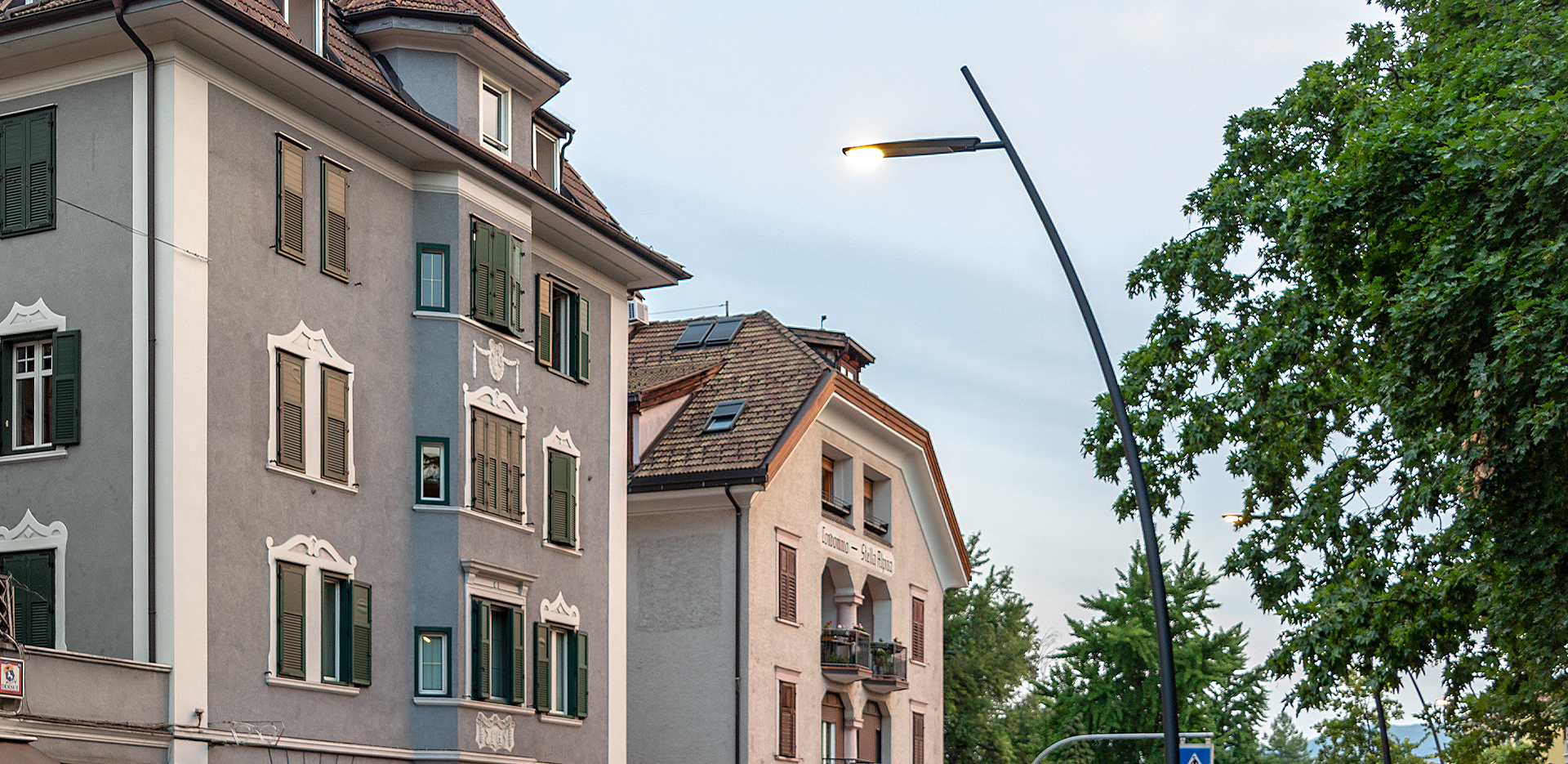

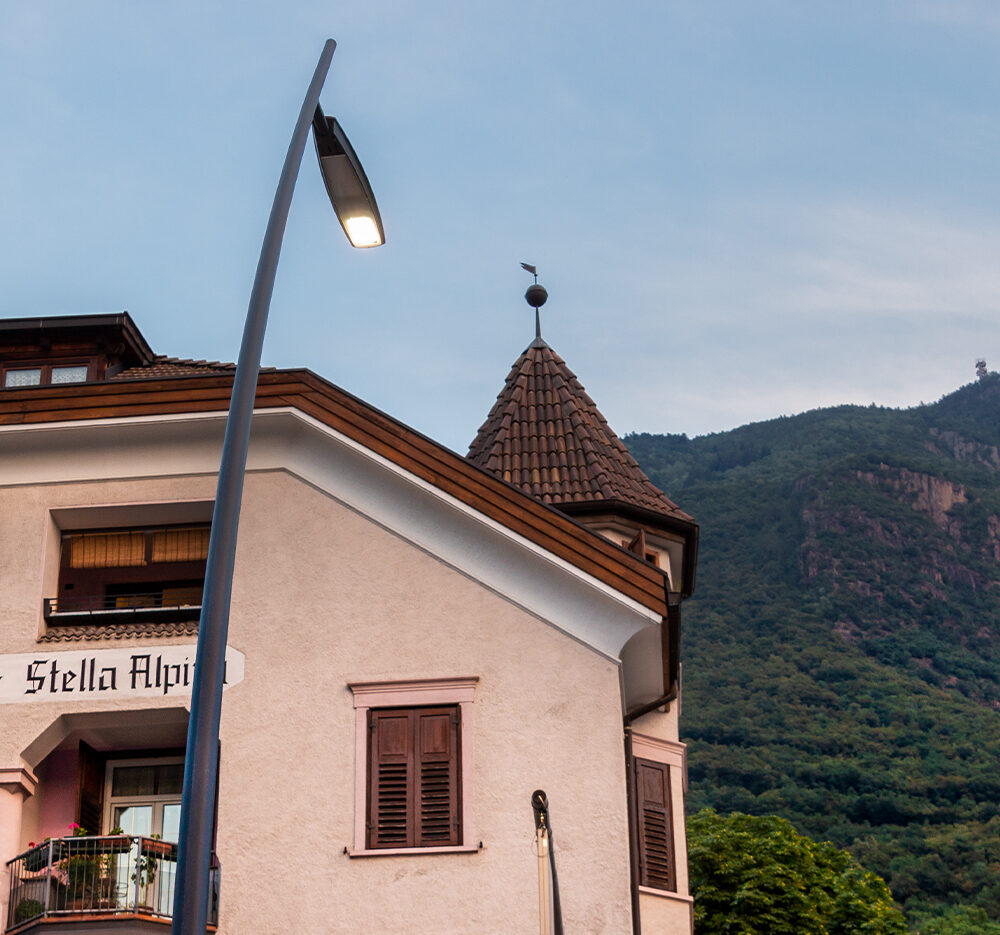

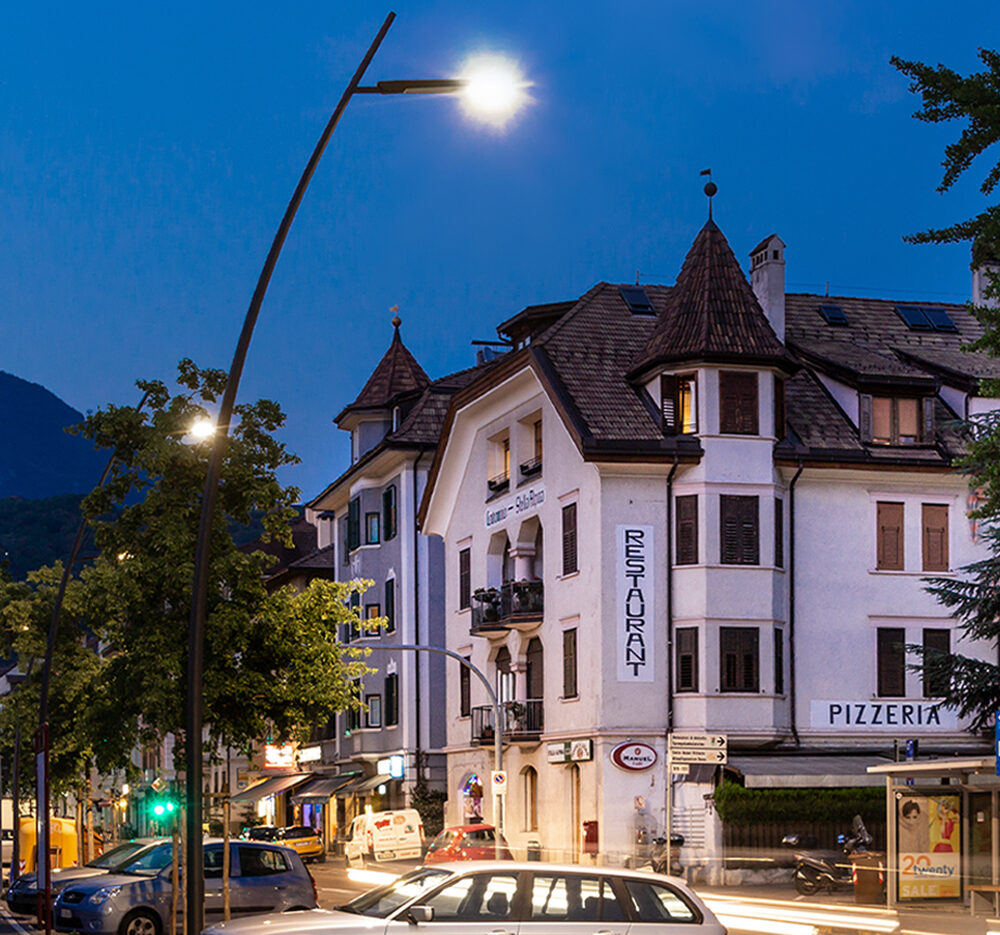

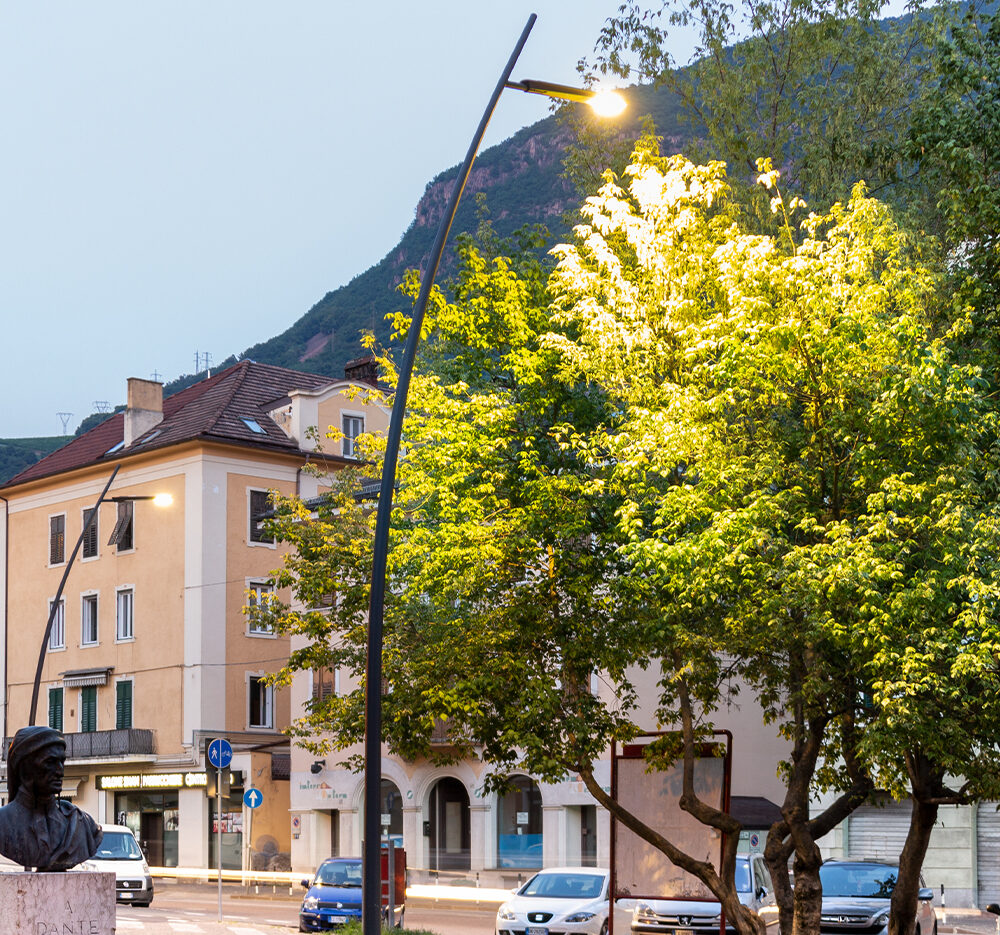

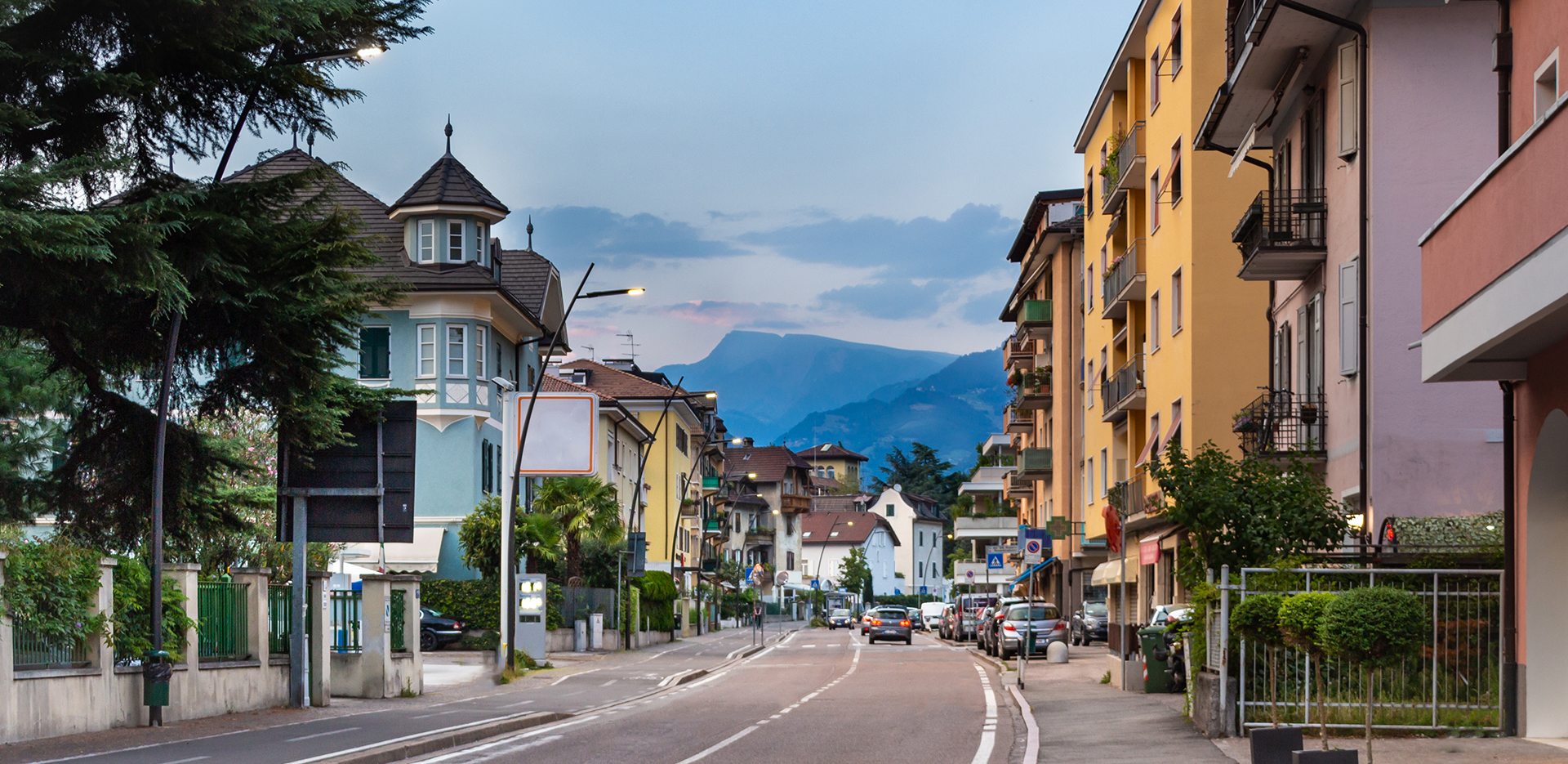

Redesign the urban landscape with PI and STYLO

Design

Performance

Efficiency

Functionality

Products compatible with the PI pole

Standard spigot for luminaires with Ø 60 mm fixing

COMPASS

ITALO 2 URBAN

Q-DROME

STYLO

ITALO

Don’t miss anything

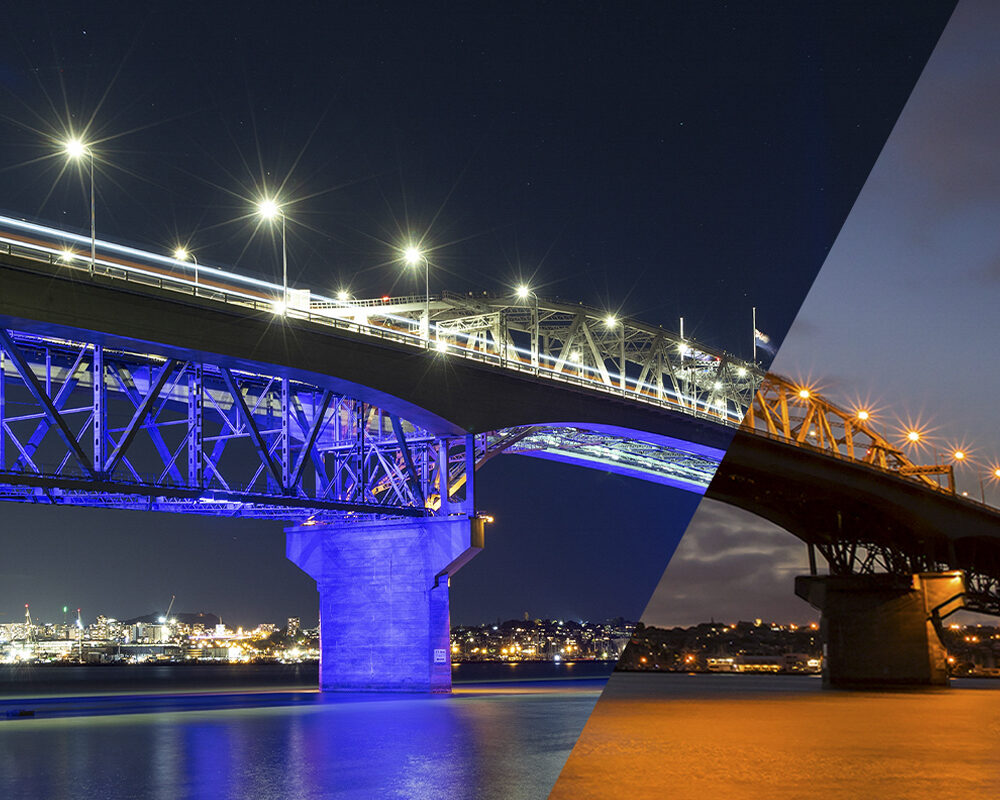

LED vs discharge. Do you know all the benefits?
