Characteristics

PS street lighting pole featured by tapered circular steel section. The lighting pole is composed of two curved sections with opposite radius made with tubular elements welded in sequence. The pole is equipped with a lateral tang for mounting lighting fixtures, distinguished by an element in cast aluminium equipped with an adjustable inclination system with respect to the road surface. The standard spigot is suitable for luminaires with a Ø 60 mm connection.

PS street lighting pole

The lighting pole is suitable for both urban and street lighting

Download the DWG

Discover the 4 available heights

PS 6

Height 6150 mm
Dimension at the base Ø 127 mm
Dimension at the top Ø 102 mm
In-ground 800 mm

PS 7

Height 7150 mm
Dimension at the base Ø 127 mm
Dimension at the top Ø 102 mm
In-ground 800 mm

PS 8

Height 8100 mm
Dimensione alla base Ø 127 mm
Dimension at the top Ø 102 mm
In-ground 800 mm

PS 9

Height 9100 mm
Dimension at the base Ø 127 mm
Dimension at the top Ø 102 mm
In-ground 800 mm

Imagine your city with LED lighting

Discover more

The available colours

Hot dip galvanizing according to ISO 1461 and subsequent brushing to ensure a perfect surface finish. Polyester powder coating.

Graphite

Code 01

Black

Code 02

Silver

Code 03

Sand

Code 04

RAL colours

On request

Products compatible with the PS pole

You can combine the PS pole with all the luminaires on the arm with a Ø 60 mm tang

Notes: to combine the PS pole with the STYLO product, a special pole with a different tang must be requested.

ARMODUE

COMPASS

ITALO 2 URBAN

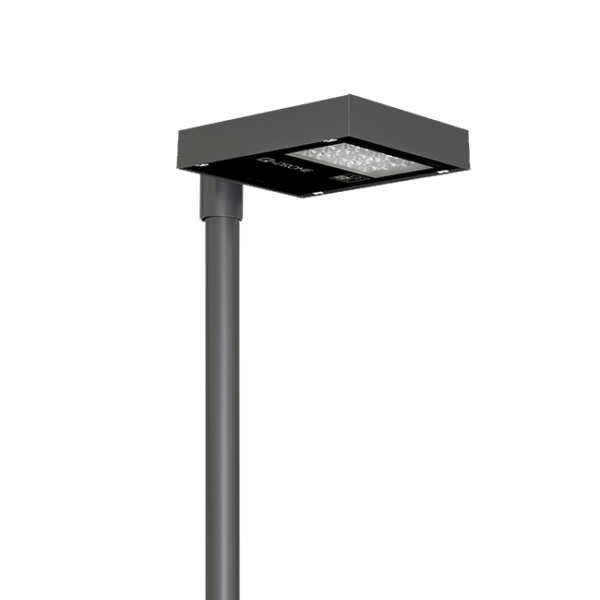

Q-DROME

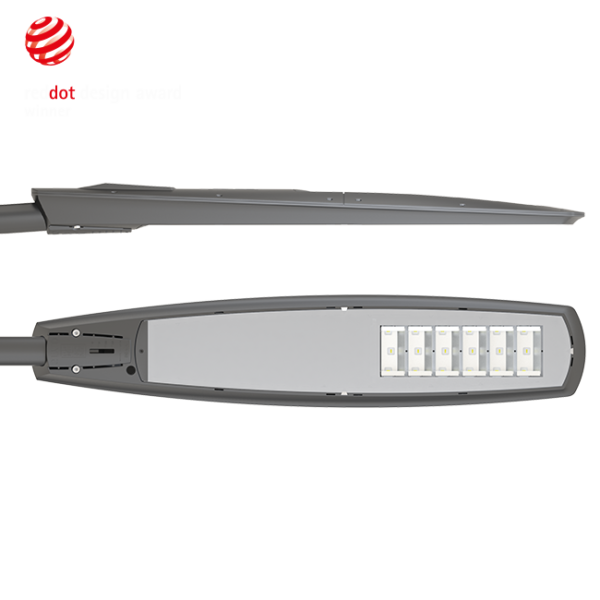

STYLO

ITALO

You could also learn more…

Solutions for stadium arena lighting

Click here

Indoor sports facilities LED lighting

Click here

Be inspired by our lighting projects

Click here

Download

Download the technical documentation of the PS tapered circular section steel pole.

Product sheet

PS series

Download

2D dwg drawing

PS series

The file is reserved for registered users

Mounting instructions

BA model decorative bases
