PD series

Characteristics

PD pole for urban public lighting in steel with a tapered circular section with flat washer, consisting of two sections (PD 5 version only) and three sections with final tang, made with tubular elements welded in sequence. The pole is equipped with both decorations and an ornamental base made of cast iron EN-GJL-200 UNI EN 1561. Cable entry slot and terminal block slot with a cut edge finish, also suitable for the application of a recessed door.

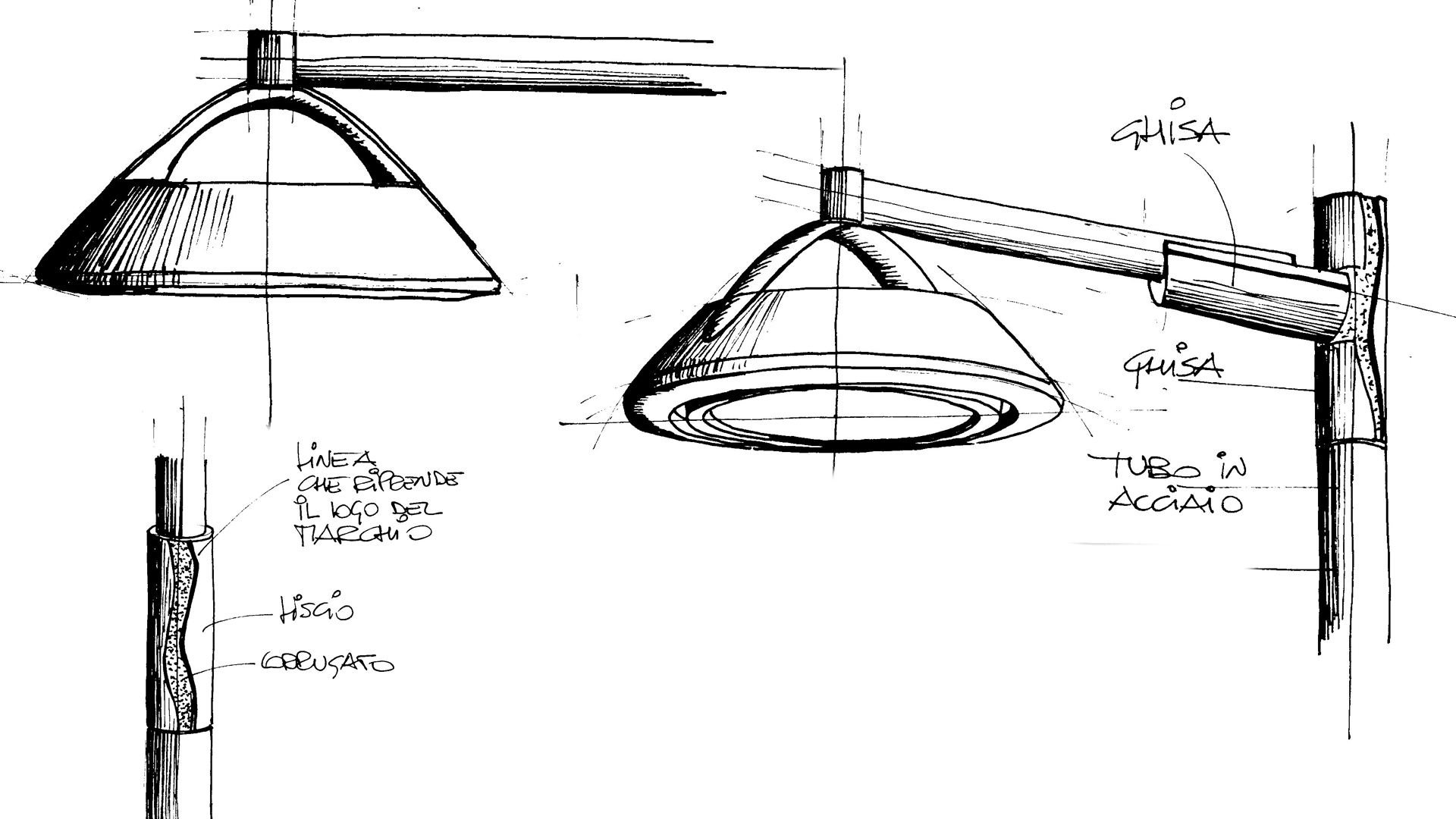

The poles of the PD series are part of the DELOS system which includes the DELOS 1 and DELOS 2 luminaires with the MPDC and MPDL brackets in pole top or offset bracket version.

Six available heights

PD 5

Height 5000 mm
1° stretch: length 1100 mm – Ø 159 mm
2° stretch: lenght 3900 mm – Ø 102 mm
Final spigot Ø 60 mm
In-ground 800 mm

PD 6

Height 6000 mm
1° stretch: length 1100 mm – Ø 159 mm
2° stretch: length 2900 mm – Ø 127 mm
3° stretch: length 1900 mm – Ø 102 mm
Final spigot Ø 60 mm
In-ground 800 mm

PD 7

Height 7000 mm
1° stretch: length 1700 mm – Ø 159 mm
2° stretch: length 2900 mm – Ø 127 mm
3° stretch: lengtha 2400 mm – Ø 102 mm
Final spigot Ø 60 mm
In-ground 800 mm

PD 8

Height 8000 mm
1° tratto: length 1700 mm – Ø 193 mm
2° tratto: length 3900 mm – Ø 127 mm
3° tratto: length 2400 mm – Ø 102 mm
Final spigot Ø 60 mm
In-ground 800 mm

PD 9

Height 9000 mm
1° stretch: length 2000 mm – Ø 193 mm
2° stretch: length3900 mm – Ø 127 mm
3° stretch: length 2900 mm – Ø 102 mm
Final spigot Ø 60 mm
In-ground 1000 mm

PD 10

Height 10000 mm
1° stretch: length 2000 mm – Ø 193 mm
2° stretch: length 4900 mm – Ø 127 mm
3° stretch: length 2900 mm – Ø 102 mm
Final spigot Ø 60 mm
In-ground 1000 mm
