Poles

PM series

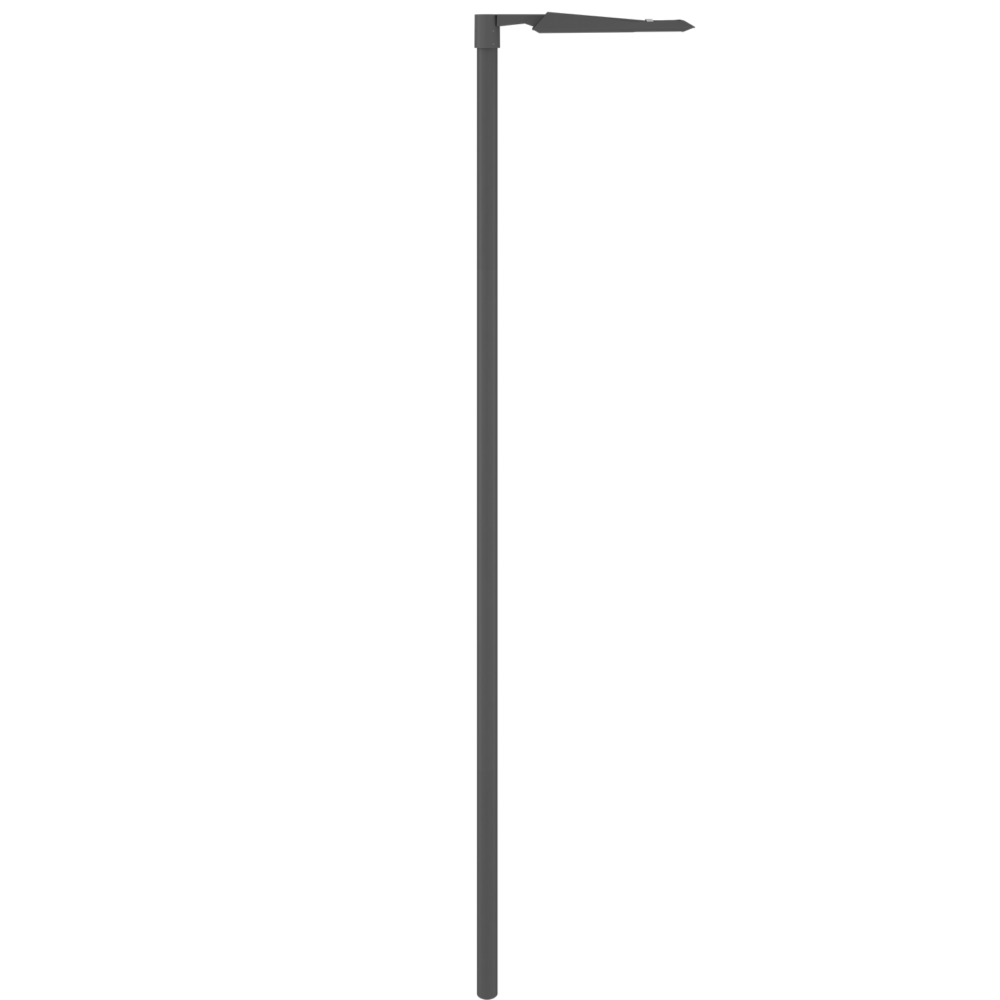

Round section steel pole.

Round steel pole urban and street lighting made in a single section. Cable entry slot and slot for terminal block with cut edge finish also suitable for the application of a recessed door flush with the pole.

Go to download

Circular section Made in Italy

Round steel pole urban and street lighting made in a single section. Cable entry slot and slot for terminal block with cut edge finish also suitable for the application of a recessed door flush with the pole.

Circular section

Made in Italy

Characteristics

Round steel PM for public street lighting made in a single section, typically used for the MASTER series. Cable entry slot and slot for terminal block with cut edge finish also suitable for the application of a flush mounted cover.

Five heights available

PM 4

Height 4000 mm
Single diameter 102 mm
Spigot diameter 60 mm
In-ground 500 mm

PM 5

Height 5000 mm
Single diameter 102 mm
Spigot diameter 60 mm
In-ground 500 mm

PM 6

Height 6000 mm
Single diameter 114 mm
Spigot diameter 102 mm
In-ground 500 mm

PM 7

Height 7000 mm
Single diameter 127 mm
Spigot diameter 102 mm
In-ground 800 mm

PM 8

Height 8000 mm
Single diameter 127 mm
Spigot diameter 102 mm
In-ground 800 mm

Examples of projects with the PM pole

Baltimora, USA

Reggio Emilia, Italy

Jesolo, Italy

Varanger, Norway

Available colors of the PM street pole

Hot dip galvanizing according to ISO 1461 and subsequent brushing to ensure a perfect surface finish. Polyester powder coating.

Graphite

Code 01

Black

Code 02

Silver

Code 03

Sand

Code 04

Colore RAL

RAL colour

On request

Steel pole for street lighting

Born to complete the design of the MASTER series.

Steel pole for street lighting

Born to complete the design of the MASTER series.

Products compatible with the PM pole

Spigot for post-top luminaires of Ø 60 mm / Ø 102 mm.

PM 4 – PM 5 spigot Ø 60 mm | PM 6 – PM 7 – PM 8 spigot Ø 102 mm.

ARTELYS DECO

ARTELYS

COMPASS

ECORAYS

MASTER 3

MASTER 6

MOD 2.0 URBAN

Compatible brackets

MASTER TP 60/76

Code: TP/76

Specific for MASTER 3 and MASTER 6.

Fixing with 1 – 2 – 3 brackets.

Only for PM 4 – PM 5 poles.

MASTER TP 102

Code: TP/102

Specific for MASTER 3 and MASTER 6.

Fixing with 1 – 2 – 3 brackets.

Only for PM 6 – PM 7 – PM 8 poles.

MASTER BRC

Code: BR-C

Specific for MASTER 3 and MASTER 6.

Fixing with 1 – 2 brackets.

Only for PM 6 – PM 7 – PM 8

staggered fixing.

ECORAYS MBT

Codice: MBT

Specific for ECORAYS.

Fixing with 1 – 2 – 3 brackets.

Only for PM 4 – PM 5.

ECORAYS MBC

Code: MBC

Specific for ECORAYS.

Fixing with 1 bracket.

Only for PM 6 – PM 7 – PM 8

staggered fixing.

MY

Codice: MY

Typically used for ARTELYS.

Fixing with 1 – 2 – 3 – 4 brackets.

Only for PM 4 – PM 5 poles.
