DS series

Round section steel pole

The DS pole for urban and street lighting is made in a single section with a 60 mm diameter final tang and made up of tubular elements welded in sequence. Cable entry slot and terminal block slot with cut edges finish also suitable for the application of a recessed door flush with the pole.

Circular section Made in Italy

The DS pole for urban and street lighting is made in a single section with a 60 mm diameter final tang and made up of tubular elements welded in sequence. Cable entry slot and terminal block slot with cut edges finish also suitable for the application of a recessed door flush with the pole.

Circular section

Made in Italy

Characteristics

The DS urban pole for urban street lighting is made of steel with a circular section in a single section with a 60 mm diameter final tang and made up of tubular elements welded in sequence. Typically used for pole-top installations of urban lighting fixtures. Cable entry slot and terminal block slot with cut edges finish also suitable for the application of a recessed door flush with the pole. Hot dip galvanizing according to ISO 1461 and subsequent brushing to ensure a perfect surface finish.

Three heights available

DS 3

Height 3000 mm
Single stretch diameter 102 mm
Final spigot Ø 60 mm
In-ground 500 mm

DS 3.5

Height 3500 mm
Single stretch diameter 102 mm
Final spigot Ø 60 mm
In-ground 500 mm

DS 4

Height 4000mm
Single stretch diameter102 mm
Final spigot Ø 60 mm
In-ground 500 mm

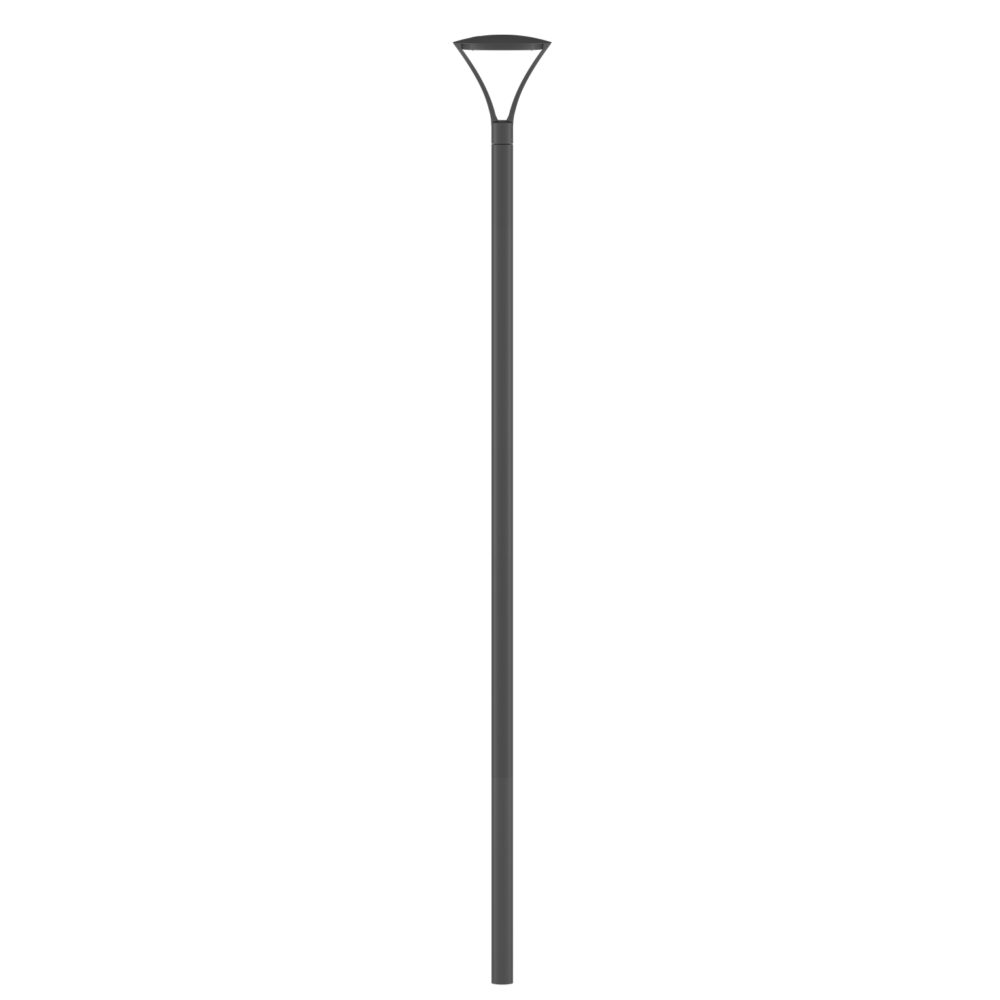

DS pole for outdoor lighting

Mainly used for post-top installations

DS pole for outdoor lighting

Mainly used for post-top installations

Available colours

Hot dip galvanizing according to ISO 1461 and subsequent brushing to ensure a perfect surface finish. Polyester powder coating.

Graphite

Code 01

Black

Code 02

Silver

Code 03

Sand

Code 04

Colore RAL

RAL colour

On request

The brackets compatible with the DS lighting pole

MASTER TP 60/76

Code: TP/76

Specific for MASTER 3 and MASTER 6.
Fixing with 1 – 2 – 3 brackets.

MG

Code: MG/TP

Fixing with 1 – 2 – 3 brackets.
Typically used for GOBLET.

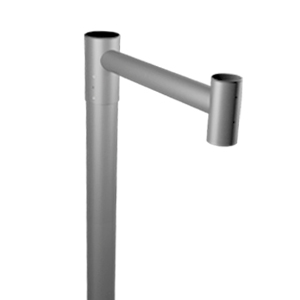

MY

Code: MY

Fixing with 1 – 2 – 3 – 4 brackets.
Typically used for ARTELYS.

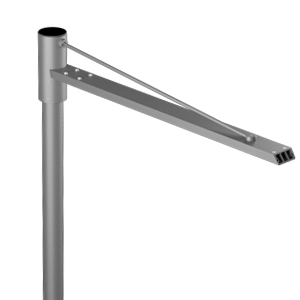

ECORAYS MBT

Code: MBT

Specific for ECORAYS.
Fixing with 1 – 2 – 3 brackets on poles with spigot of ø60.

Luminaires compatible with the pole DS

Final spigot for post-top luminaire Ø 60 mm.

ARYA

COMPASS

ECORAYS

MASTER 3

MASTER 6

Q-DROME

SOLED

STORY
