Poles

EC tapered series

Tapered steel pole.

Palo per illuminazione pubblica in acciaio a sezione circolare rastremato con rondella d’acciaio tornita, composto da due tratti, realizzato con elementi tubolari saldati in sequenza.

Go to download

Circular section Tapered pole

Palo per illuminazione pubblica in acciaio a sezione circolare rastremato con rondella d’acciaio tornita, composto da due tratti, realizzato con elementi tubolari saldati in sequenza.

Circular section

Tapered pole

Characteristics

Public lighting pole in steel with a tapered circular section with turned steel washer, consisting of two sections, made with tubular elements welded in sequence. Cable entry slot and terminal block slot with cut edges finish also suitable for the application of a recessed door flush with the pole.

Five heights available

EC 6

Height 6000 mm
1° stretch: length 2200mm – Ø 159mm
2° stretch: length 3800mm – Ø 102mm
In-ground 800mm

EC 7

Height 7000 mm
1° stretch: length 3200mm – Ø 159mm
2° stretch: length 3800mm – Ø 102mm
In-ground 800mm

EC 8

Height 8000 mm
1° stretch: length 3200mm – Ø 159 mm
2° stretch: length 4500mm – Ø 102mm
In-ground 800mm

EC 9

Height 9000 mm
1° stretch: length 4000mm – Ø 159mm
2° stretch: length 5000 mm – Ø 102mm
In-ground 800mm

EC 10

Height 10000 mm
1°stretch: length 5000mm – Ø 159mm
2° stretch: length 5000 mm – Ø 102mm
In-ground 1000mm

Tapered street pole for street lighting

Two lines and clean lines: a great classic.

Tapered street pole for street lighting

Two lines and clean lines: a great classic.

Available colours

Hot dip galvanizing according to ISO 1461 and subsequent brushing to ensure a perfect surface finish. Polyester powder coating.

Graphite

Code 01

Black

Code 02

Silver

Code 03

Sand

Code 04

Colore RAL

RAL colour

On request

With which brackets you can match with the pole

MASTER TP 102

Code: TP 102

Specific for MASTER 3 and MASTER 6.
Fixing with 1 – 2 – 3 brackets.

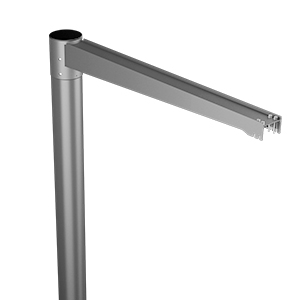

MASTER BR

Code: BR-L

Fixing with 1 – 2 – 3 – 4 brackets.

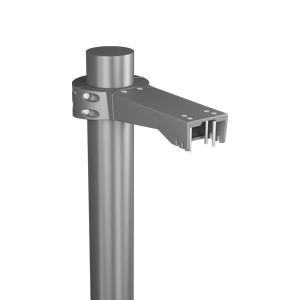

MASTER BR-C

Code: BR-C

Specific for MASTER 3 and MASTER 6.
Fixing with 1 – 2 brackets.
Only for staggered fixing.

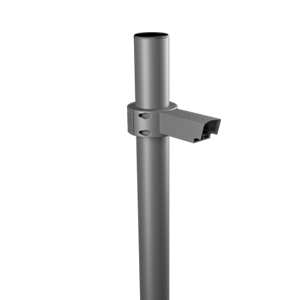

LOGIKA ADL

Code: AD L1 e AD L2

Specific for LOGIKA 1 and LOGIKA 2.
Fixing with 1 – 2 brackets.

MA

Code: MA/1

Typically used for ARMONIA.
Fixing with 1 – 2 – 3 brackets.

MA

Code: MA/2

Typically used for ARMONIA.
Fixing with 1 – 2 – 3 brackets.

MA

Code: MA/3

Typically used for ARMONIA.
Fixing with 1 – 2 – 3 brackets.

MA

Code: MA/4

Typically used for ARMONIA.
Fixing with 1 – 2 – 3 brackets.

MA

Code: MA/5

Typically used for ARMONIA.
Fixing with 1 – 2 – 3 brackets.

MP

Code: MP

Typically used for GOBLET.
Fixing with 1 – 2 – 3 brackets.

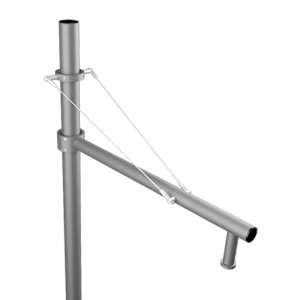

MK

Code: MK/S

Fixing with 1 – 2 – 3 brackets.

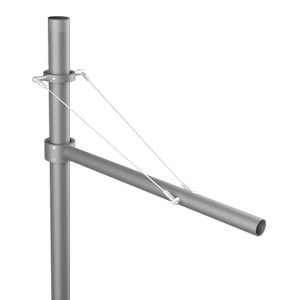

MK

MK/K

Fixing with 1 – 2 – 3 brackets.

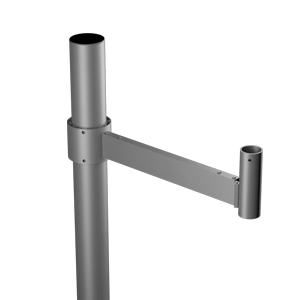

ME

Code: ME

Fixing with 1 – 2 – 3 brackets.

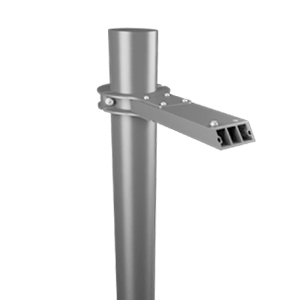

ECORAYS MBC

Code: MBC

Specific for ECORAYS.
Fixing with 1 bracket.
Only for staggered fixing.

MASTER BR-C

Code: BR-C

Specific for MASTER 3 e MASTER 6.
Fixing with 1 – 2 brackets.
Only for staggered fixing.

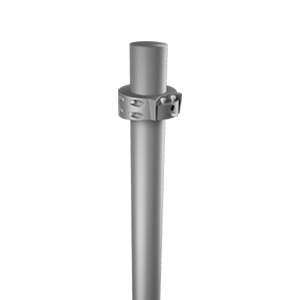

MOD AC

Code: MOD 2.0 AC 102

Specific for MOD 2.0 URBAN.

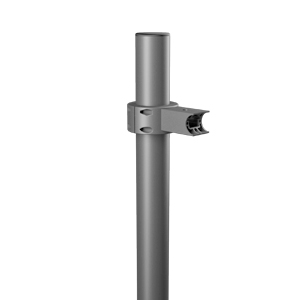

Q QUADRO ADQ

Code: ADQ3 and ADQ5

Specific for Q3 QUADRO and Q5 QUADRO.
Fixing with 1 – 2 brackets.

Compatible luminaires with the street EC tapered pole

Street and urban lighting

ARMONIA

COMPASS

ECORAYS

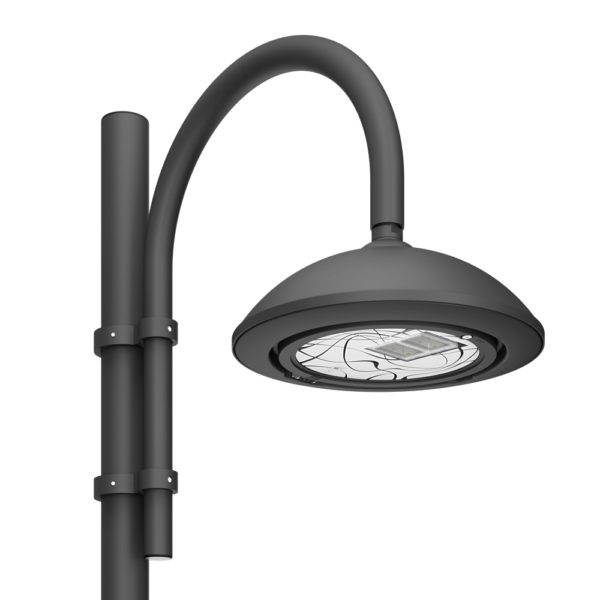

GOBLET

MASTER 3

MASTER 6

MOD 2.0 URBAN

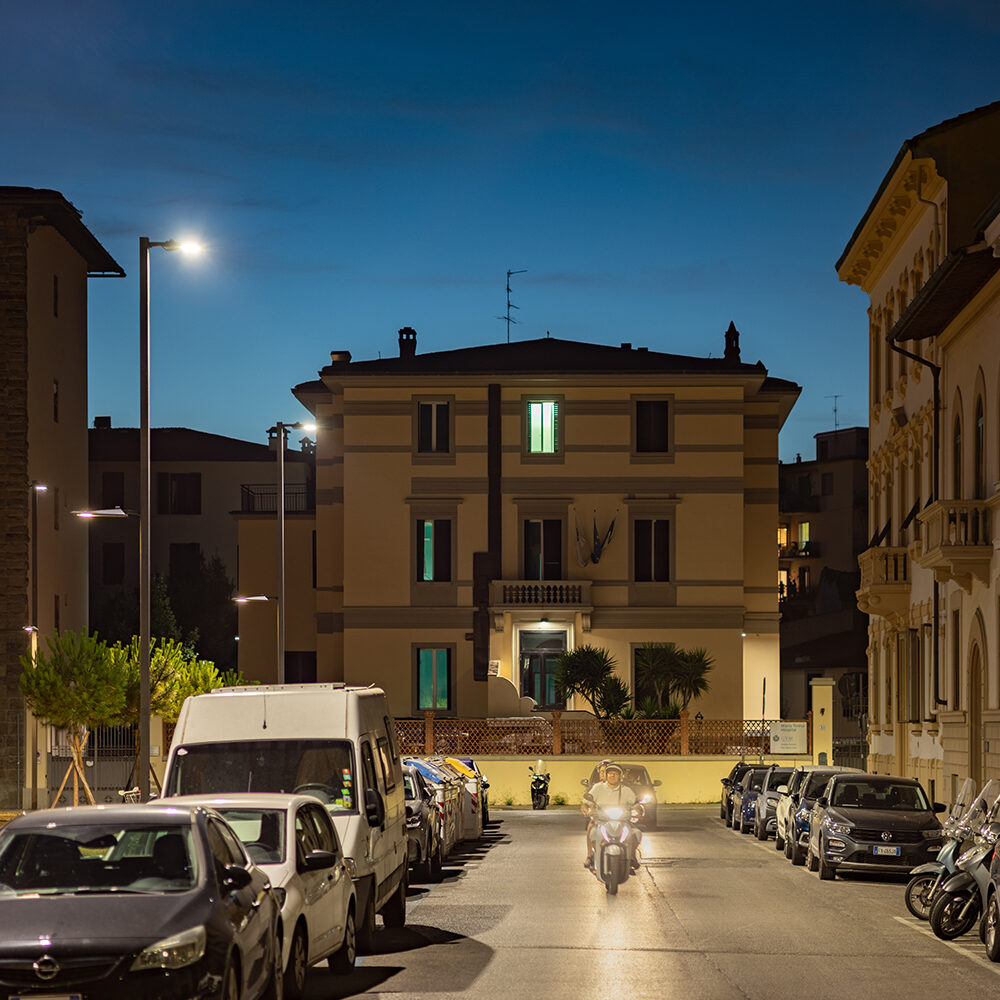

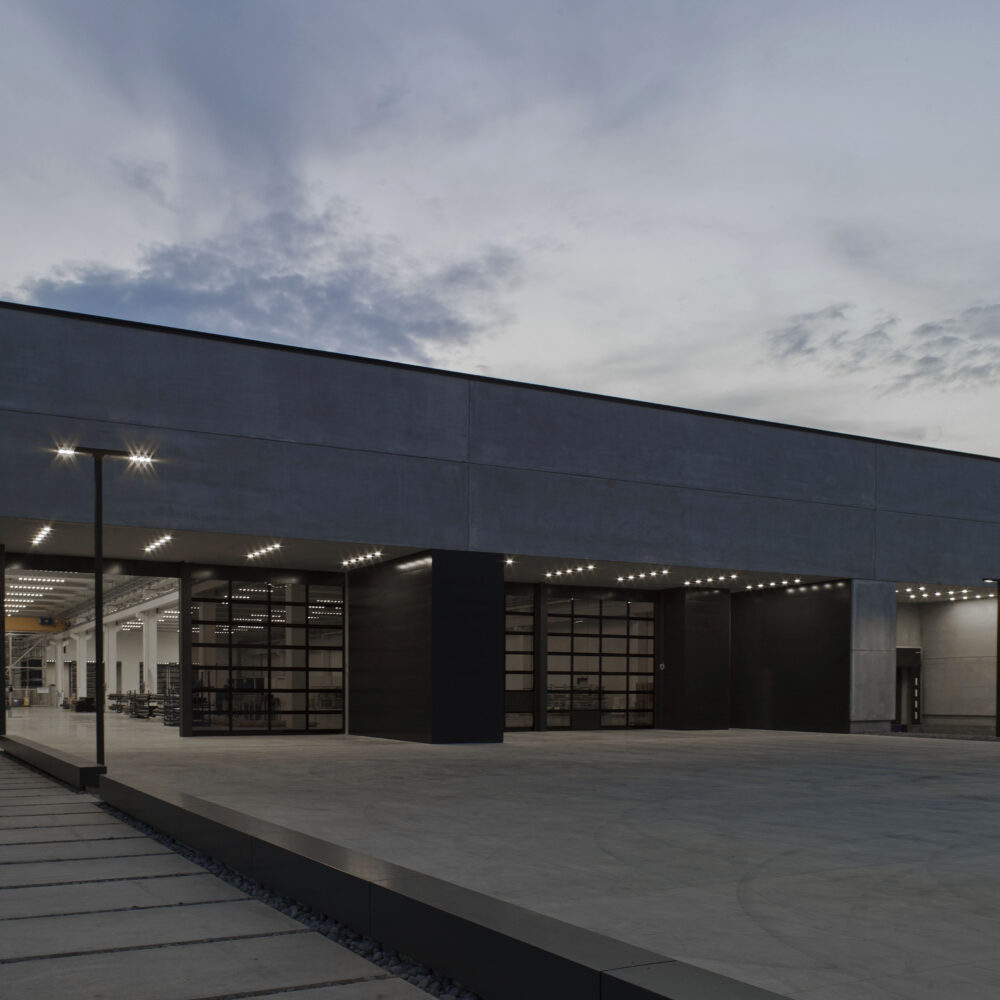

LED advantages for outdoor urban lighting

Click here

Poles made in Tuscany 100% Made in Italy

Click here

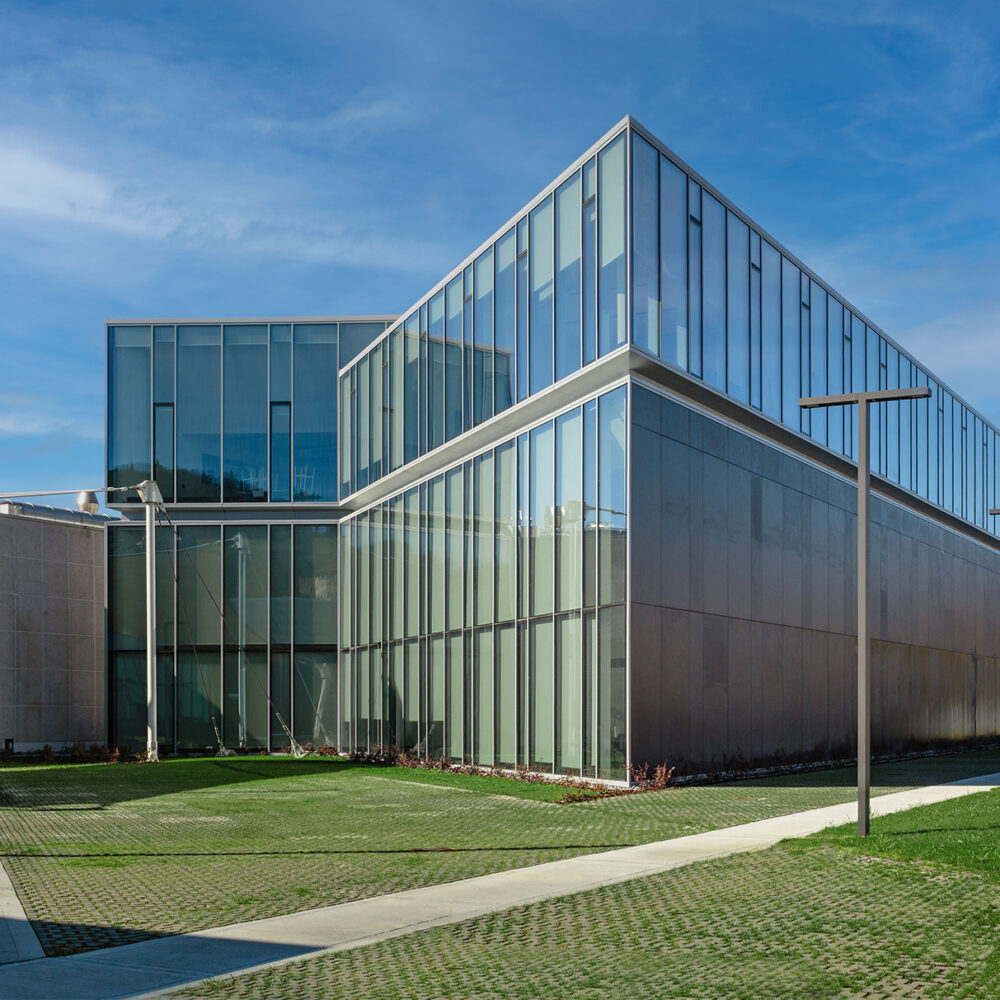

ITC, our center of technological innovation
