Characteristics

Public lighting pole PX in steel with a circular tapered section with flat joint washer, consisting of two sections and final tang, made with tubular elements welded in sequence. Cable entry slot and slot for terminal block with cut edge finish also suitable for the application of a flush mounted cover.

Five heights available

PX 4

Height 4000 mm
1° stretch: length 2500 mm – Ø 102 mm
2° stretch: length1500 mm – Ø 76 mm
Spigot Ø 60 mm
In-ground 500 mm

PX 5

Height 5000 mm
1° stretch: length 3500 mm – Ø 102 mm
2° stretch: length 1500 mm – Ø 76 mm
Spigot Ø 60 mm
In-ground 500 mm

PX 6

Height 6000 mm
1° stretch: length 3500 mm – Ø 127 mm
2° stretch: length 2500 mm – Ø 76 mm
Spigot Ø 60 mm
In-ground 500 mm

PX 7

Height 7000 mm
1° stretch: length 5000 mm – Ø 127 mm
2° stretch: length 2000 mm – Ø 76 mm
Spigot Ø 60 mm
In-ground 800 mm

PX 8

Height 8000 mm
1° stretch: length 5000 mm – Ø 127 mm
2° stretch: length3000 mm – Ø 76 mm
Codolo finale Ø 60 mm
In-ground 800 mm

Available colours

Hot dip galvanizing according to ISO 1461 and subsequent brushing to ensure a perfect surface finish. Polyester powder coating.

Graphite

Code 01

Black

Code 02

Silver

Code 03

Sand

Code 04

RAL colours

On request

Compatible brackets with the PX urban pole

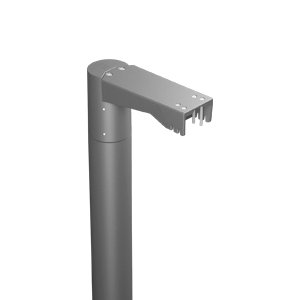

MASTER TP 60/76

Code: TP/76

Specific for MASTER 3 and MASTER 6.
Fixing with 1 – 2 – 3 brackets.

MG

Code: MG/TP

Fixing with 1 – 2 – 3 brackets.
Typically used for GOBLET.

MY

Code: MY

Fixing with 1 – 2 – 3 – 4 brackets.
Typically used for ARTELYS.

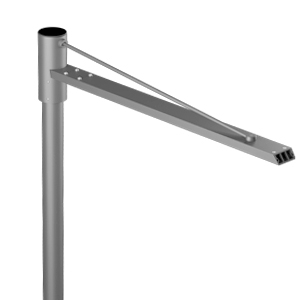

ECORAYS MBT

Code: MBT

Specific for ECORAYS.
Fixing with 1 – 2 – 3 brackets on poles with spigot of ø60.

Compatible fixtures with the PX lighting pole

Discover all our application areas

Discover more

How we produce our poles 100% Made in Italy

Discover more

Discover our range of LED urban lighting

Discover our solutions

Download

Download the technical documentation of the PX series steel pole.

Product sheet

PX street lighting pole

Download

2D dwg drawing

PX street lighting pole

The file is reserved for registered users

Mounting instructions

BA pattern decorative bases

The file is reserved for registered users

PX series

Tapered steel pole with flat washer.

Characteristics

PX tapered lighting pole

Ideal for street and urban lighting

PX 4

PX 5

PX 6

PX 7

PX 8

Available colours

Hot dip galvanizing according to ISO 1461 and subsequent brushing to ensure a perfect surface finish. Polyester powder coating.

Graphite

Code 01

Black

Code 02

Silver

Code 03

Sand

Code 04

RAL colours

On request

MASTER TP 60/76

Code: TP/76

MG

Code: MG/TP

MY

Code: MY

ECORAYS MBT

Code: MBT

Compatible fixtures with the PX lighting pole

Spigot for post top luminaires Ø 60 mm.

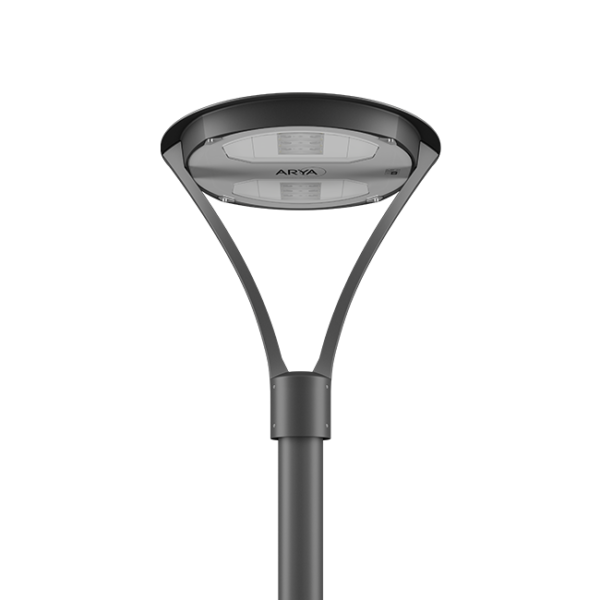

ARYA

COMPASS

ECORAYS

ITALO 2 URBAN TP

ITALO 2 URBAN

MASTER 3

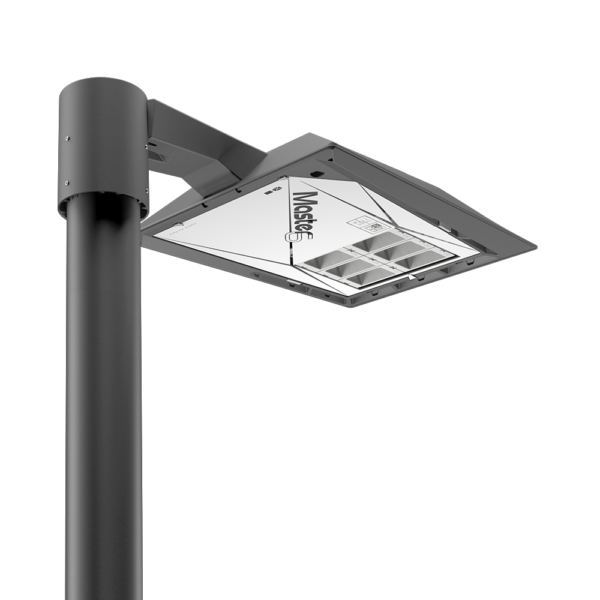

MASTER 6

Q-DROME

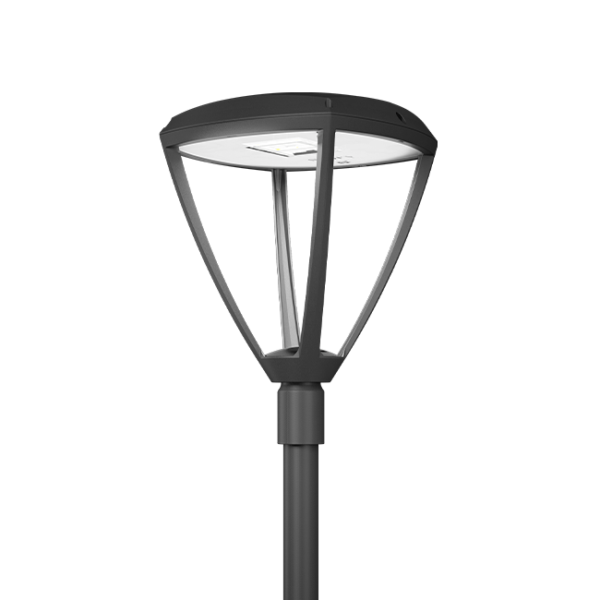

STORY

ITALO

Discover all our application areas

How we produce our poles 100% Made in Italy

Discover our range of LED urban lighting

Download

Download the technical documentation of the PX series steel pole.

Product sheet

2D dwg drawing

Mounting instructions

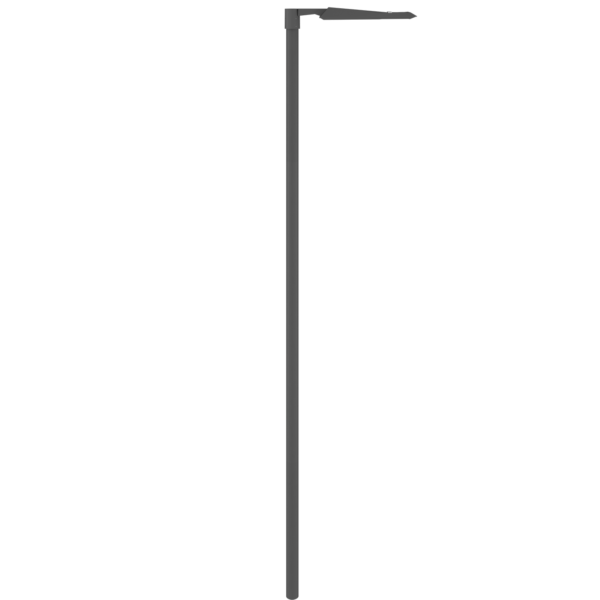

PM series
