Poles

P0 series

Circular post with lateral spigot

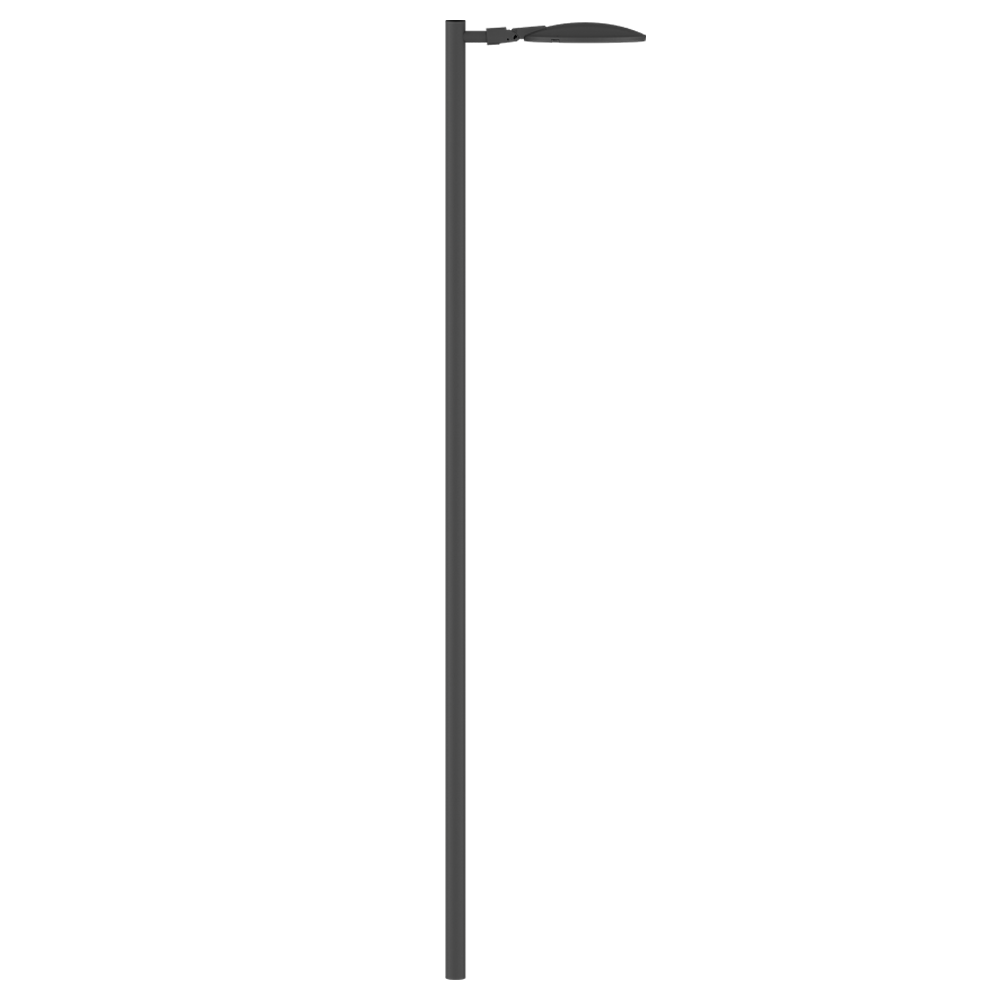

P0 pole for public lighting in steel with circular section made in a single section. The pole is equipped with a lateral shank with a diameter of 60 mm. Cable entry slot and slot for terminal block with finishing of the edges of the cut also suitable for the application of flush-mounted door pole.

Go to download

Circular section Made in Italy

P0 pole for public lighting in steel with circular section made in a single section. The pole is equipped with a lateral shank with a diameter of 60 mm. Cable entry slot and slot for terminal block with finishing of the edges of the cut also suitable for the application of flush-mounted door pole.

Circular section

Made in Italy

Characteristics

P0 pole for public lighting in steel with circular section made in a single section. The pole is equipped with a side shank with a diameter of 60 mm. Cable entry slot and terminal block slot with cut edge finish also suitable for the application of a door flush with the pole.

Five available heights

P0 5

Height 5000 mm
Single stroke diameter Ø 102 mm
Spigot Ø 60 mm
In-ground 500 mm

P0 6

Height 6000 mm
Single stroke diameter Ø 127 mm
Spigot Ø 60 mm
In-ground 800 mm

P0 7

Height 7000 mm
Single stroke diameter Ø 127 mm
Spigot Ø 60 mm
In-ground 800 mm

P0 8

Height 8000 mm
Single stroke diameter Ø 127 mm
Spigot Ø 60 mm
In-ground 800 mm

P0 9

Height 9000 mm
Single stroke diameter Ø 139 mm
Spigot Ø 60 mm
In-ground 800 mm

Available colours

Hot dip galvanizing according to ISO 1461 and subsequent brushing to ensure a perfect surface finish. Polyester powder coating.

Graphite

Code 01

Black

Code 02

Silver

Code 03

Sand

Code 04

Colore RAL

RAL colours

On request

Luminaires compatible with the P0 pole

Standard connection spigot for luminaires with Ø 60 mm connection

ARMODUE

COMPASS

Q-DROME

STYLO

ITALO

Other topics to be explored

Discover all our LED lighting products

Discover our solutions

How we make poles for public lighting

Discover AEC Pole Division

Discover our project in outdoor public lighting

Discover it

Download

Download the technical documentation of the P0 series steel pole.

Product sheet

P0 pole street lighting

Download

2D dwg drawing

P0 pole street lighting

The file is reserved for registered users

Discover our products

Access our reserved area "MY AEC" to download any file.

Product warranty

Mounting instructions

3DS files

2D dwg

Photometric files
