PK street lighting pole- AEC Illuminazione

Characteristics

PK pole for LED public lighting in steel with a circular section with moulded tapering. The pole consisting of three sections, made with tubular elements connected and welded in sequence. Cable entry slot and slot for a terminal block with a cut edge finish, also suitable for the application of a recessed door flush with the pole.

Discover the 4 available heights

PK 6,5

Height 6500 mm
1° stretch H 3200 mm – Ø 127 mm
2° stretch H 2800 mm – Ø 102 mm
3° stretch H 500 mm – Ø 59 mm
In-ground 800 mm

PK 7,5

Height 7500 mm
1° stretch H 3200 mm – Ø 127 mm
2° stretch H 3800 mm – Ø 102 mm
3° stretch H 500 mm – Ø 59 mm
In-ground 800 mm

PK 8,5

Height 8500 mm
1° stretch H 5200 mm – Ø 139 mm
2° stretch H 2800 mm – Ø 102 mm
3° stretch H 500 mm Ø 89 mm
In-ground 800 mm

PK 9,5

Height 9500 mm
1° stretch H 5200 mm – Ø 139 mm
2° stretch H 3800 mm – Ø 102 mm
3° stretch H 500 mm Ø 89 mm
In-ground 800 mm

All the colours

Discover the colors available for the PK lighting pole.

Graphite

Code: 01

Black

Code: 02

Silver

Code: 03

Sand

Code: 04

RAL colours

On request

The brackets with which you can install it

Choose the bracket with which to match the PK urban street pole

MK/K

Code: MK/K

Fixing with 1 – 2 – 3 brackets.

MK/S

Code: MK/S

Fixing with1 – 2 – 3 brackets.

Which luminaires can you combine it with

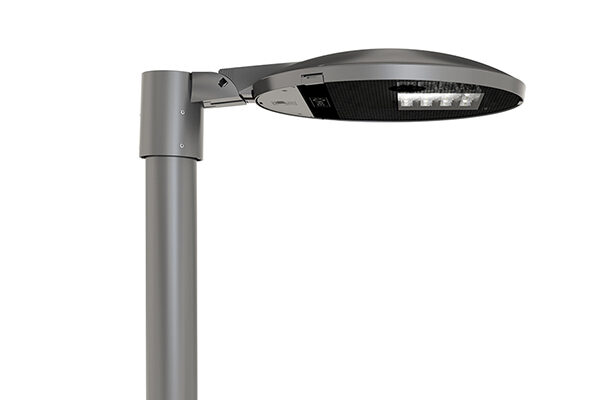

COMPASS 1 TP

Post top fixing

LED luminaire for urban and street lighting

COMPASS

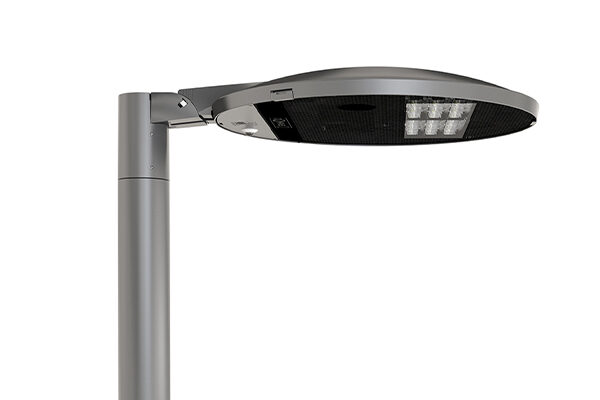

COMPASS 2 TP

Post top fixing

LED luminaire for urban and street lighting

COMPASS

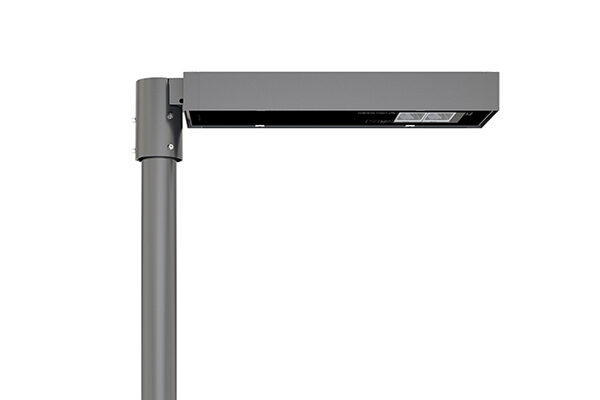

MOD 2.0 URBAN TP

Post top fixing

LED luminaire for urban and street lighting

MOD 2.0 URBAN

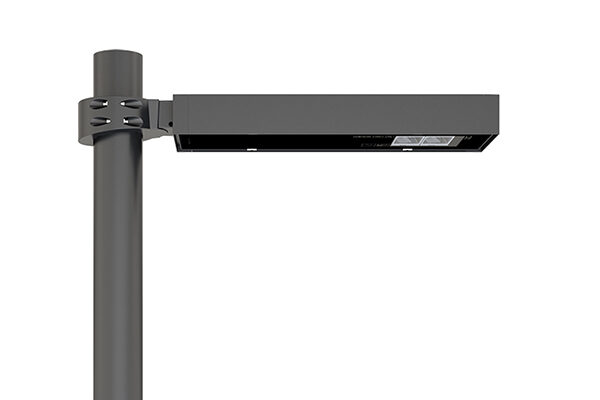

MOD 2.0 URBAN AC

Collar fixing

LED luminaire for urban lighting

MOD 2.0 URBAN AC

Posts that you may want to know more

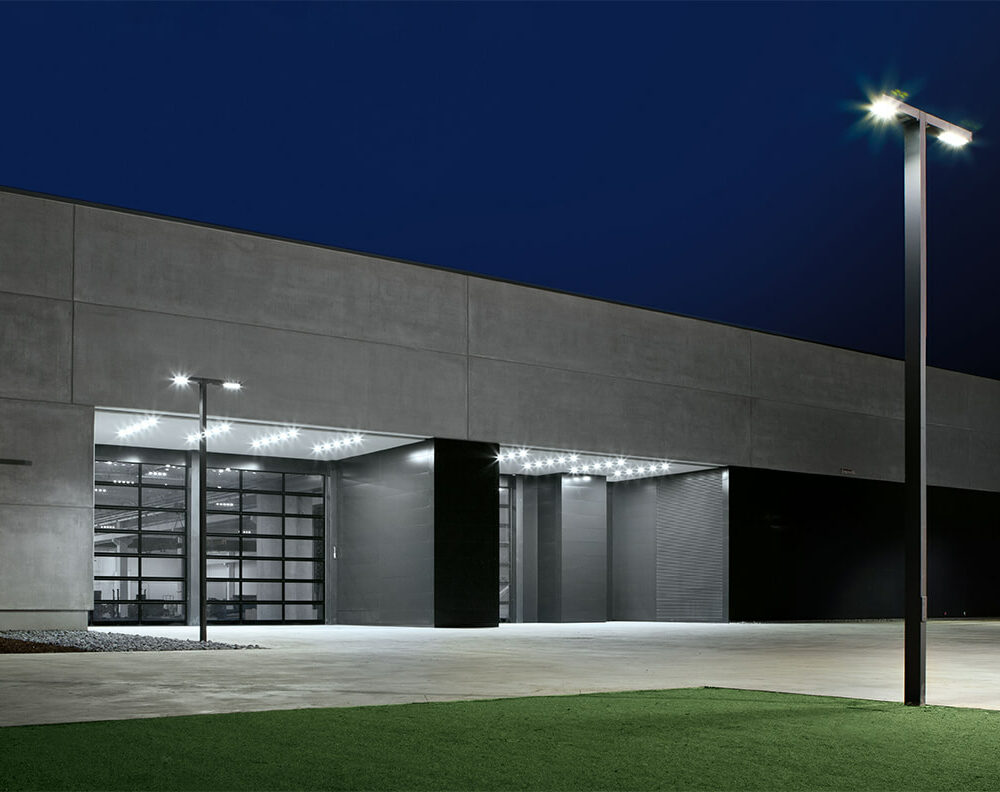

Find out where we design and manufacture our poles

AEC Pole Division

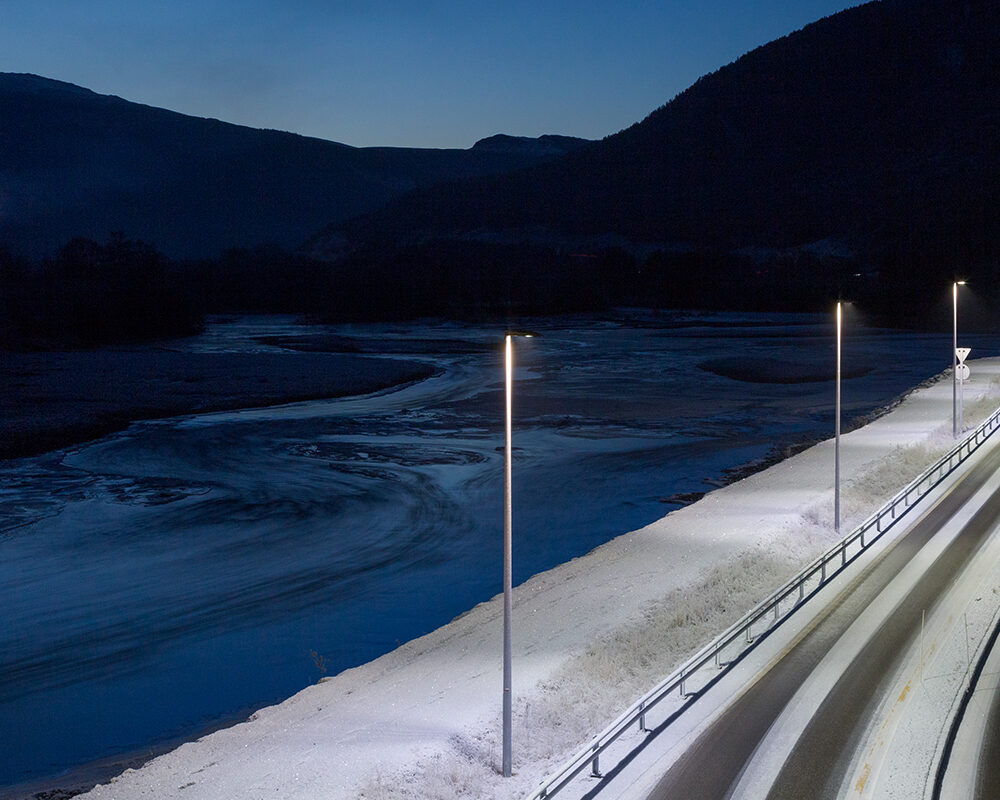

Street and highway lighting

Discover the opportunity

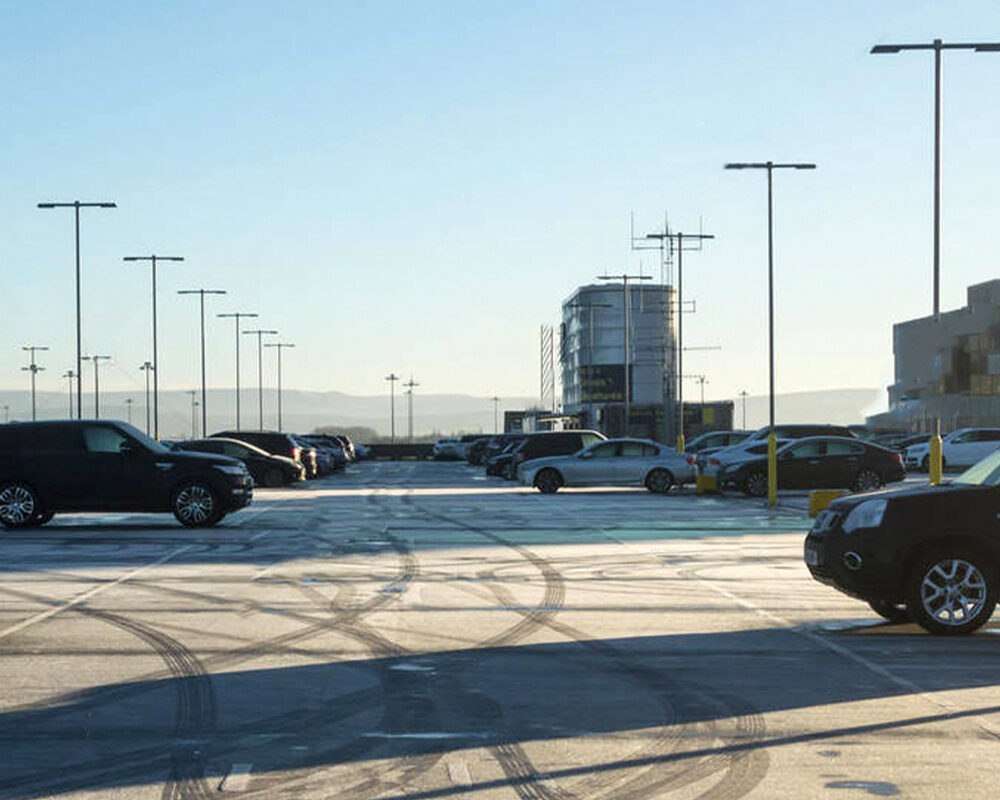

Car parking lighting

Outdoor car parking

Download

Download the technical documentation of the PK steel pole with circular section with printed tapers.

Product sheet

PK lighting poles

Download

2D dwg drawing

PK lighting poles

Download
