PB series

Pole composed of two staggered tubular elements

PB pole for public lighting in steel with circular section composed of two tubular elements of different diameters embedded in the side and subsequently welded together. The upper part is equipped with a tang for the assembly of lighting bodies with Ø 76 mm connection. Side spigot for the composition of a double staggered lighting body (optional). The final part with tapered steel tip.

Circular section Made in Italy

PB pole for public lighting in steel with circular section composed of two tubular elements of different diameters embedded in the side and subsequently welded together. The upper part is equipped with a tang for the assembly of lighting bodies with Ø 76 mm connection. Side spigot for the composition of a double staggered lighting body (optional). The final part with tapered steel tip.

Circular section

Made in Italy

Characteristics

PB pole for public lighting of design, in steel with circular section composed of two tubular elements of different diameters embedded in the side and subsequently welded together. The upper part is equipped with a tang for the assembly of lighting bodies with Ø 76 mm connection. Side spigot for the composition of a double staggered lighting body (optional). The final part with tapered steel tip. Cable entry slot and slot for terminal block with cut edge finish also suitable for the application of flush mounted cover. Hot dip galvanizing according to ISO 1461 and subsequent brushing to ensure a perfect surface finish. Polyester powder coating.

Four heights available

PB 6

Height 6000 mm
1° stretch H 4200 mm – Ø 127 mm
2° stretch H 3000 mm – Ø 76 mm
Spigot projection 430 mm
Spigot Ø 76 mm
In-ground 800 mm

PB 7

Height 7000 mm
1° tratto H 5200 mm – Ø 127 mm
2° tratto H 4000 mm – Ø 76 mm
Spigot projection 430 mm
Spigot Ø 76 mm
In-ground 800 mm

PB 8

Height 8000 mm
1° stretch H 6200 mm – Ø 127 mm
2° stretch H 4000 mm – Ø 76 mm
Spigot projection 430 mm
Spigot Ø 76 mm
In-ground 800 mm

PB 9

Height 9000 mm
1° stretch H 7200 mm – Ø 139 mm
2° stretch H 5000 mm – Ø 76 mm
Spigot projection 430 mm
Spigot Ø 76 mm
In-ground 800 mm

Available colours

Hot dip galvanizing according to ISO 1461 and subsequent brushing to ensure a perfect surface finish. Polyester powder coating.

Graphite

Code 01

Colore RAL

RAL colour

On request

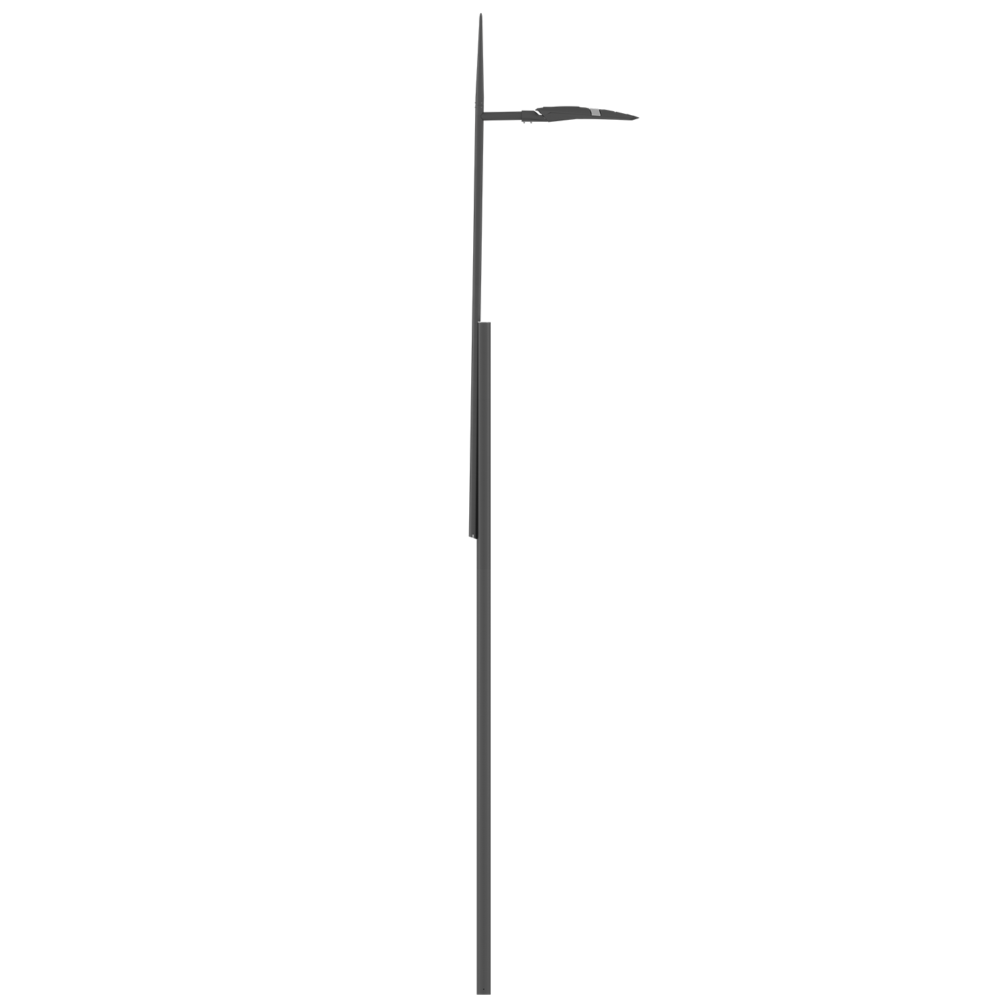

Imagine the street pole PB with luminaires

Standard connection spigot for luminaires with fixing of Ø 76 mm

ITALO 2 URBAN

Q-DROME

ITALO

Let’s discover more

Where and how we test our products

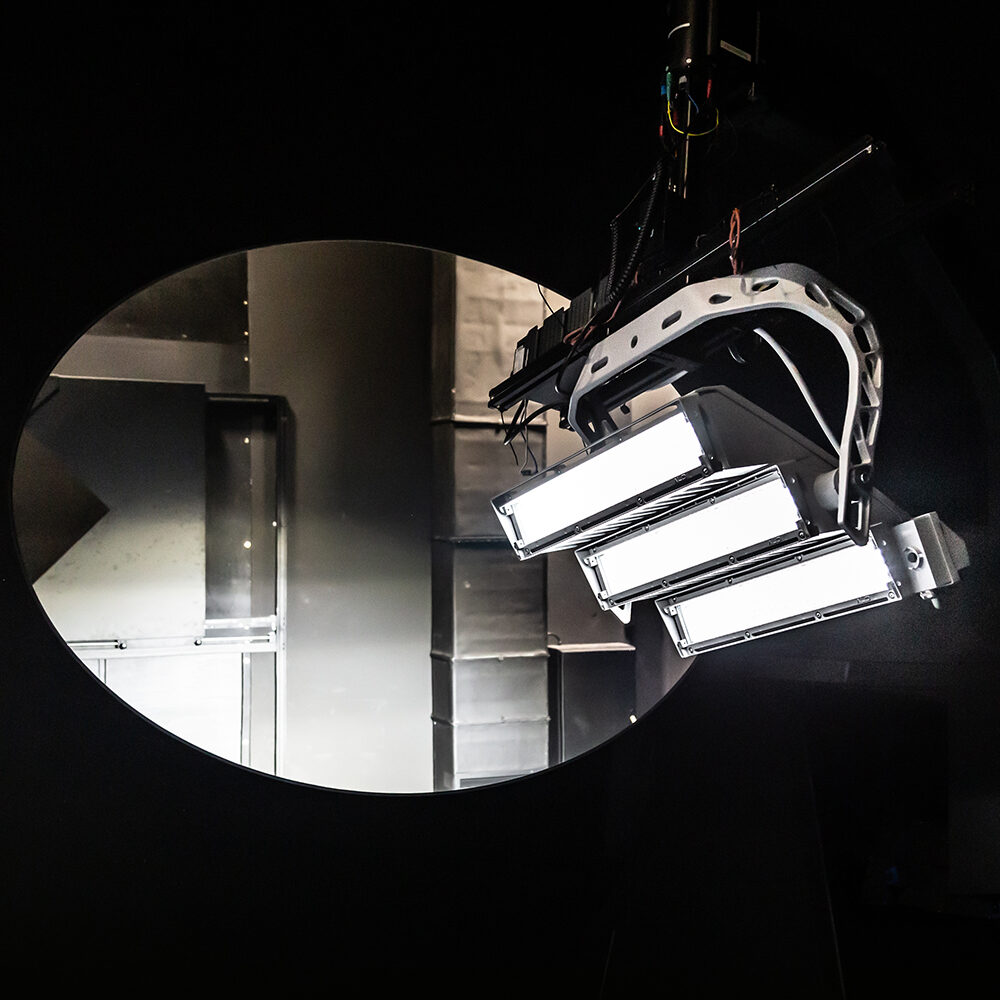

Our urban LED lighting solutions
