Poles

Tapered Series R127 C

Tapered pole with Ø 60 spigot.

Steel pole Ø 127 with circular section tapered in two sections with final tang, composed of tubular elements welded in sequence.

Go to downloads

Circular Section Made in Italy

Steel pole Ø 127 with circular section tapered in two sections with final tang, composed of tubular elements welded in sequence.

Circular Section

Made in Italy

Characteristics

Steel pole with circular section tapered in two sections with final tang, composed of tubular elements welded in sequence.
Cable entry slot and terminal block slot with cut edge finish also suitable for the application of a recessed door flush with the pole.

Five heights available

7000

Height 7000 mm
Diameter 127 mm
Shaft diameter 60 mm
Embedment 800 mm

8000

Height 8000 mm
Diameter 127 mm
Shaft diameter 60 mm
Embedment 800 mm

8000

Height 8000 mm
Diameter 139 mm
Shaft diameter 60 mm
Built 800 mm

9000

Height 9000 mm
Diameter 139 mm
Shaft diameter 60 mm
Built 800 mm

10000

Height 10000 mm
Diameter 159 mm
Shaft diameter 60 mm
Built 800 mm

Esempi di progetti

Baltimore, United States

Reggio Emilia, Italy

Jesolo, Italy

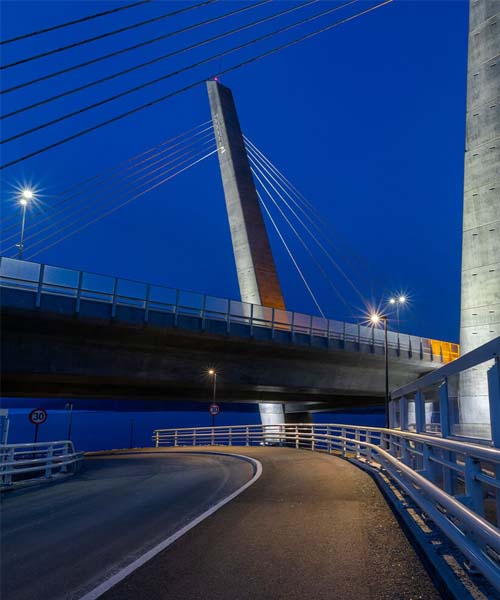

Varanger, Norway

Available colors of the R127 C road pole

Hot galvanizing according to UNI EN ISO 1461 and subsequent brushing to guarantee a perfect surface finish. Polyester powder coating.

Graphite

Code 01

Black

Code 02

Silver

Code 03

Sand

Code 04

Colore RAL

RAL colour

On request

Products compatible with the R127 C pole

Final spigot for pole-top luminaire Ø 60 mm.

ARTELYS DECO

ARTELYS

COMPASS

ECORAYS

MASTER 3

MASTER 6

MOD 2.0 URBAN

ARYA

I-TRON

ITALO

Q-DROME

ARMODUE

SOLED

STORY

NOOS

Compatible brackets

B01 Series

MS Y Series

MBK Series

MF Series

MV K Series

MY Series

MG Series
