Characteristics

Circular section steel pole made up of two sections that can be assembled with Ø76 outreach and optional Ø60 shank. Conical final part. Cable entry slot and terminal block slot with cut edge finish also suitable for the application of a recessed door flush with the pole.

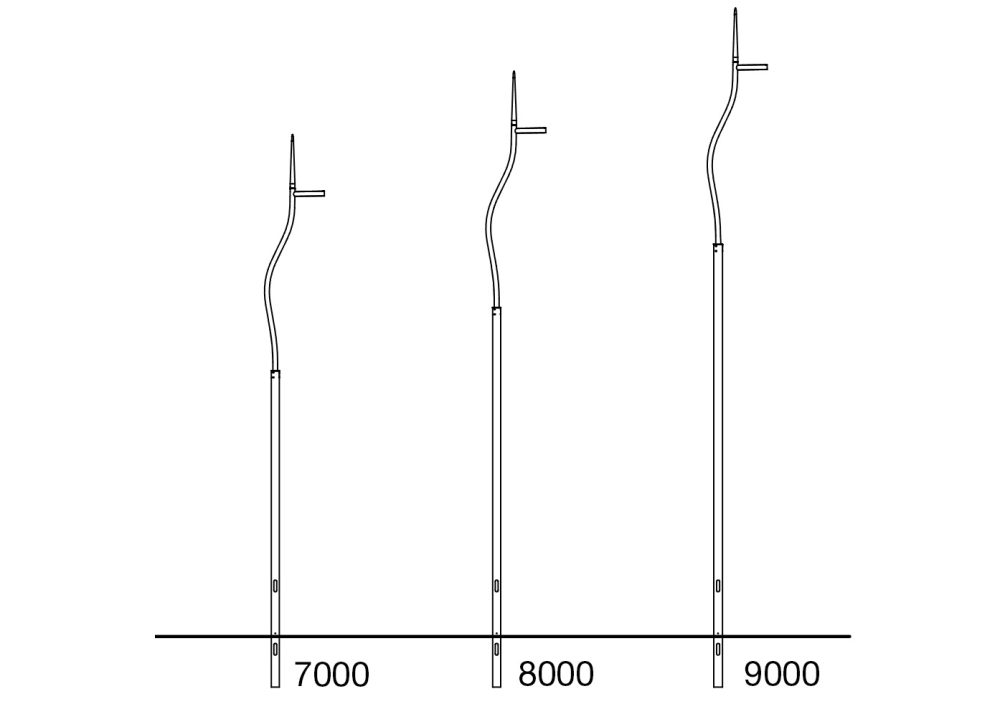

Discover the 3 heights available

7000

Light point height 7000 mm
Base diameter Ø 127 mm
Arm diameter 76 mm
Connection shank 76 mm
Buriing 800 mm

8000

Light point height 8000 mm
Base diameter Ø 127 mm
Arm diameter 76 mm
Connection spigot 76 mm
Burial 800 mm

9000

Light point height 9000 mm
Base diameter Ø 139 mm
Arm diameter 76 mm
Connection spigot 76 mm
Burial 800 mm

The colors available

Hot galvanizing according to UNI EN ISO 1461 and subsequent brushing to guarantee a perfect surface finish. Polyester powder coating.

Graphite

Code 01

Black

Code 02

Silver

Code 03

Sand

Code 04

RAL Color

On request

Products compatible with the cylindrical PZ pole with bracket

You can combine this urban street pole with all the devices that can be installed on a Ø 76mm arm

Q-DROME

ITALO

I-TRON

Where and how we make our poles for public lighting

Discover AEC Pole Division

How to make an urban area better with LED light

Emphasize the places and their architectural details

Click here to learn more

Download

Download the technical documentation of the Design Series pole with steel bracket.

Technical data sheet

Design Series – PZ Cylindrical Pole with bracket

Download

2D dwg drawing

Design Series – PZ Cylindrical Pole with bracket

The file is reserved for registered users

Assembly instructions

Pole buried

The file is reserved for registered users

Assembly instructions

Pole with plate

The file is reserved for registered users

Decorative bases

BA model

The file is reserved for registered users

Design Series – Cylindrical PZ Pole with bracket

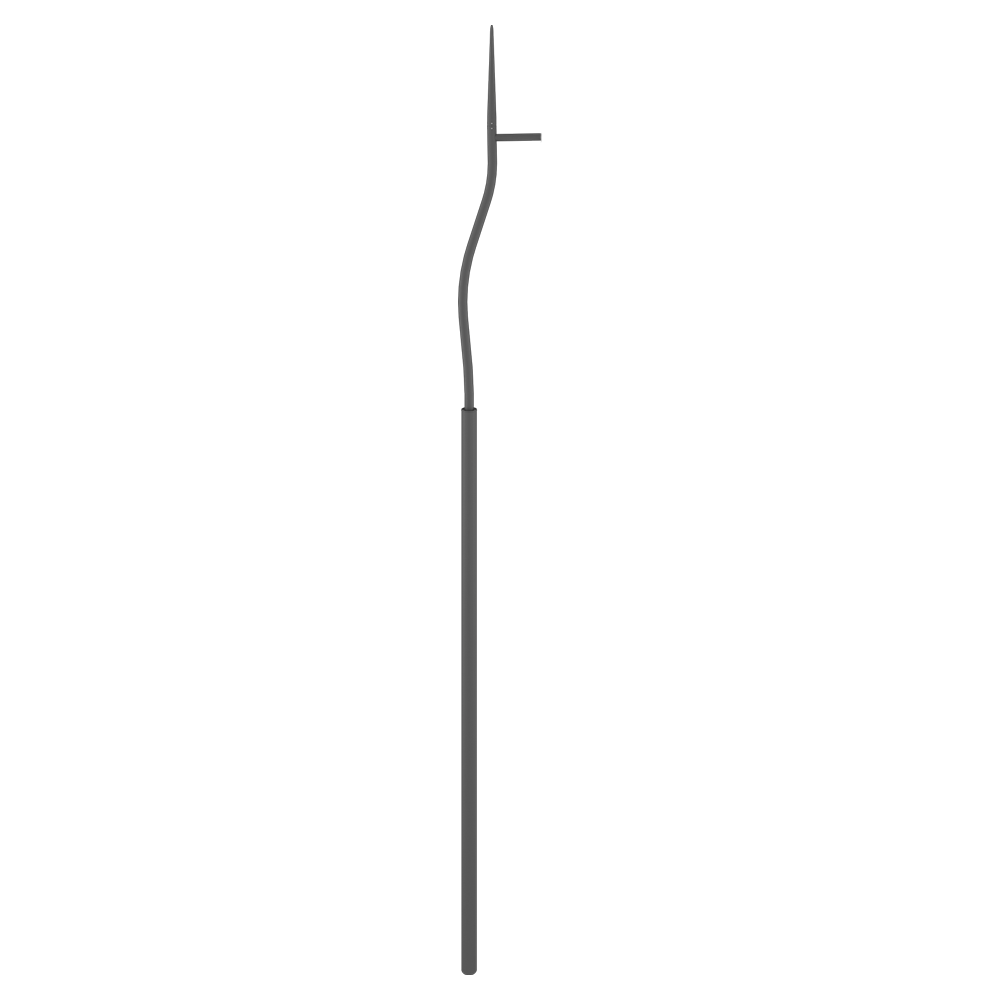

Cylindrical pole with bracket

Characteristics

Circular section steel pole made up of two sections that can be assembled with Ø76 outreach and optional Ø60 shank. Conical final part. Cable entry slot and terminal block slot with cut edge finish also suitable for the application of a recessed door flush with the pole.

Design Series public lighting pole with bracket

Ideal for street and urban lighting

7000

8000

9000

The colors available

Hot galvanizing according to UNI EN ISO 1461 and subsequent brushing to guarantee a perfect surface finish. Polyester powder coating.

Graphite

Code 01

Black

Code 02

Silver

Code 03

Sand

Code 04

RAL Color

On request

Products compatible with the cylindrical PZ pole with bracket

You can combine this urban street pole with all the devices that can be installed on a Ø 76mm arm

Q-DROME

ITALO

I-TRON

Where and how we make our poles for public lighting

How to make an urban area better with LED light

Emphasize the places and their architectural details

Download

Download the technical documentation of the Design Series pole with steel bracket.

Technical data sheet

2D dwg drawing

Assembly instructions

Assembly instructions

Decorative bases
