Curved conical series

Characteristics

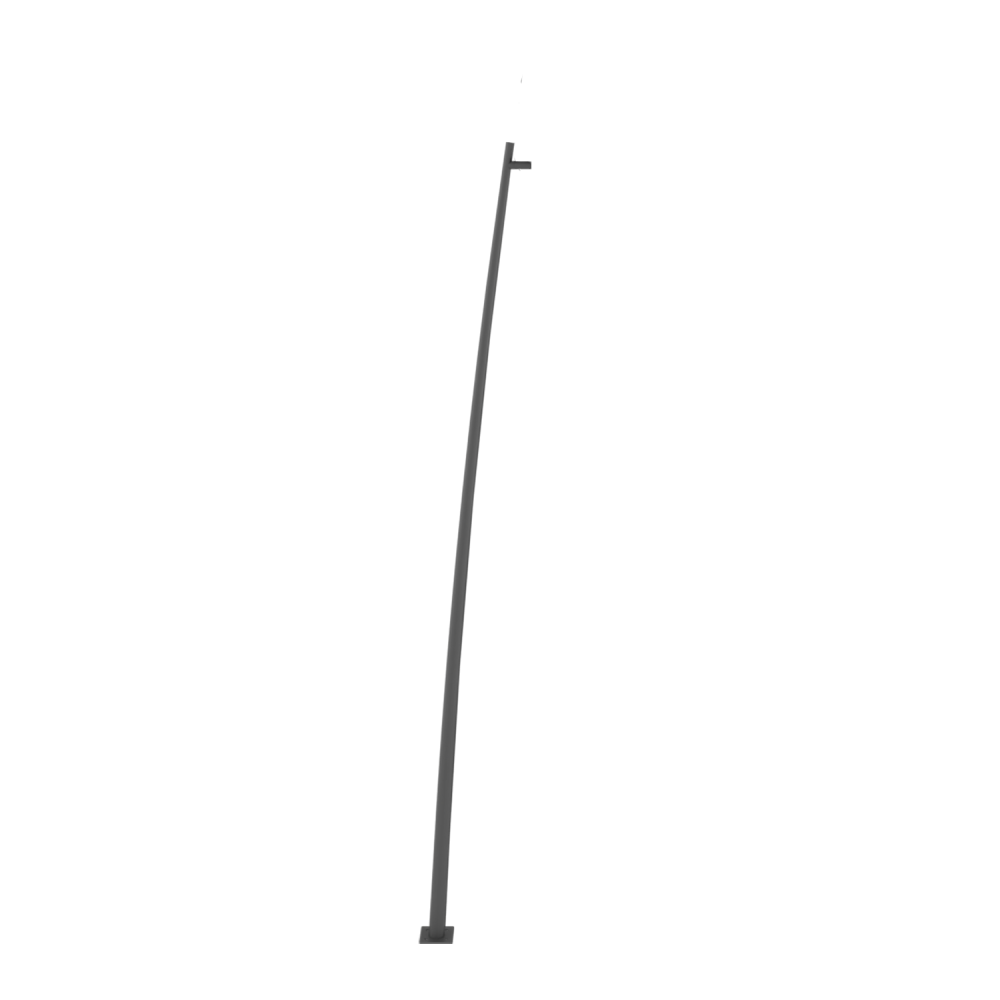

Circular cross section steel pole consisting of one single curved conical section with a Ø60 side arm. Terminal block slot with cut edge finish also suitable for the application of a recessed door flush with the pole.

Three heights available

6000

Height 6000 mm
Diameter Ø 127 mm
Head size Ø 60 mm
Attachment shank Ø 60 mm

7000

Height 7000 mm
Diameter Ø 138 mm
Head size Ø 60 mm
Attachment shank Ø 60 mm

8000

Height 8000 mm
Diameter Ø 148 mm
Head size Ø 60 mm
Attachment shank Ø 60 mm

The colors available

Hot galvanized in accordance with UNI EM ISO 1461, and subsequent brushing to ensure perfect surface finish. Polyester powder cooting.

Graphite

Code 01

Black

Code 02

Silver

Code 03

Sand

Code 04

RAL Colors

On request

Products compatible with the Curved Conical pole

Standard connection spigot for devices equipped with Ø 60 mm connection

ARMODUE

COMPASS

Q-DROME

STYLO

I-TRON

ITALO
