Poles

PQ series

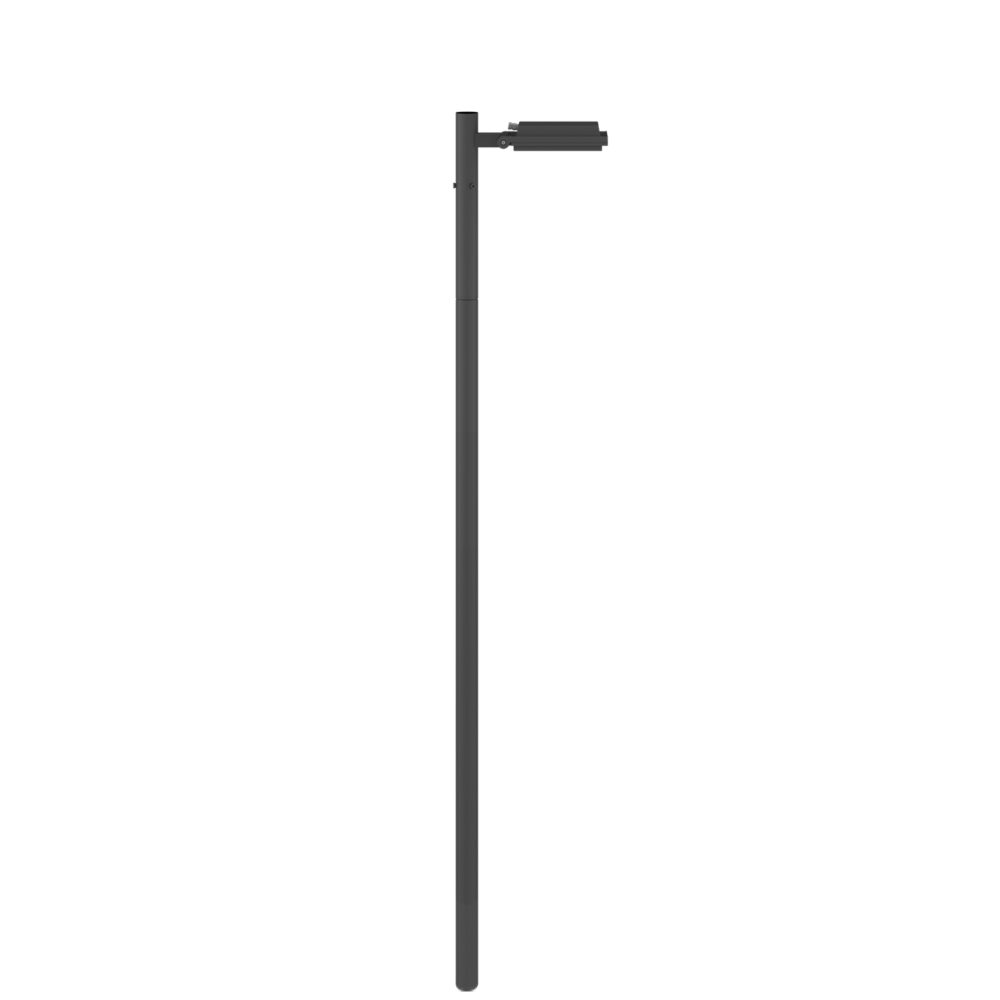

Cylindrical pole for LOGIKA and Q QUADRO

Palo PQ per illuminazione pubblica in acciaio a sezione circolare con rastremature stampate. Il palo è composto da due tratti (solo versione PQ 5) e tre tratti nelle altre versioni (PQ 6 - PQ 7 - PQ 8 - PQ 9 - PQ 10). Il palo è dotato di decoro alettato copri-rastrematura in acciaio.

Go to download

Circular section Made in Italy

Palo PQ per illuminazione pubblica in acciaio a sezione circolare con rastremature stampate. Il palo è composto da due tratti (solo versione PQ 5) e tre tratti nelle altre versioni (PQ 6 - PQ 7 - PQ 8 - PQ 9 - PQ 10). Il palo è dotato di decoro alettato copri-rastrematura in acciaio.

Circular section

Made in Italy

Characteristics

PQ pole for public lighting in steel with a circular section with moulded tapers, consists of two sections (PQ 5 version only) and three sections in the other versions, made with tubular elements connected and welded in sequence. The pole is equipped with a finned steel tapering decoration.

Discover the 6 heights available

PQ 5

Height 5000 mm
1° stretch H 4400 mm – Ø 102 mm
3° stretch H 600 mm – Ø 89 mm
In-ground 500 mm

PQ 6

Height 6000 mm
1° stretch H 4400 mm – Ø 127 mm
2° stretch H 1000 mm – Ø 102 mm
3° stretch H 600 mm Ø 89 mm
In-ground 800 mm

PQ 7

Height 7000 mm
1° stretch H 5200 mm – Ø 127 mm
2° stretch H 1200 mm – Ø 102 mm
3° stretch H 600 mm Ø 89 mm
In-ground 800 mm

PQ 8

Height 8000 mm
1° stretch H 6200 mm – Ø 139 mm
2° stretch H 1200 mm – Ø 114 mm
3° stretch H 600 mm Ø 102 mm
In-ground 800 mm

PQ 9

Height 9000 mm
1° stretch H 6900 mm – Ø 139 mm
2° tratto H 1500 mm – Ø 114 mm
3° tratto H 600 mm Ø 102 mm
In-ground 1000 mm

PQ 10

Height 10000 mm
1° stretch H 7900 mm – Ø 139 mm
2° stretch H 1500 mm – Ø 114 mm
3° stretch H 600 mm Ø 102 mm
In-ground 1000 mm

All the colours

Discover the colors available for the PQ lighting pole

Graphite

Code 01

Black

Code 02

Silver

Code 03

Sand

Code 04

Colore RAL

RAL colours

On request

Compatible brackets

Discover the various AEC brackets available compatible with the PQ street lighting pole

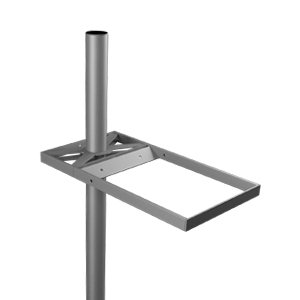

Q QUADRO MQ3

Code: MQ3

Fixing with 1 – 2 – 3 brackets.

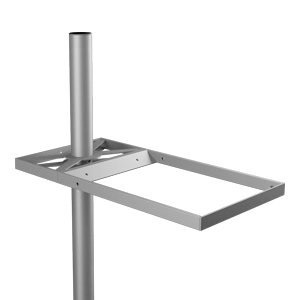

Q QUADRO MQ5

Code: MQ5

Fixing with 1 – 2 – 3 brackets.

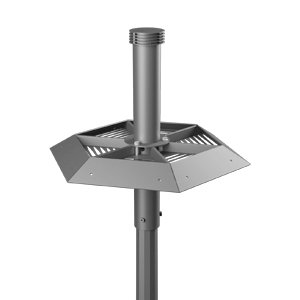

Q MULTIPRO

Code: Q MULTIPRO

Specific for the series Q-PRO.

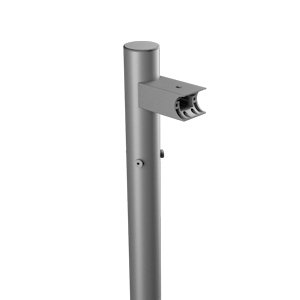

MT

Code: MT/Q3 e MT/Q5

Fixing with 1 – 2 – 3 – 4 brackets.

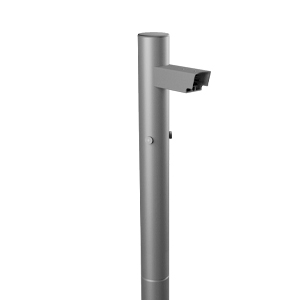

MT

Code: MT/L1 and MT/L2

Fixing with 1 – 2 – 3 brackets.

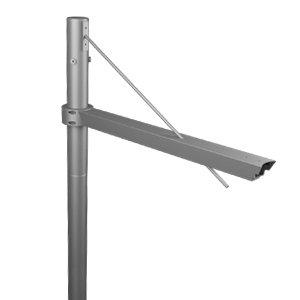

LOGIKA MI

Code: MI

Specific for LOGIKA.
Fixing with 1 – 2 brackets.

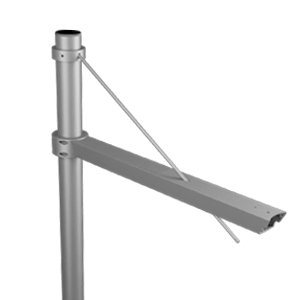

LOGIKA MI/E

Code: MI/E

Specific for LOGIKA.
Fixing with 1 – 2 brackets.

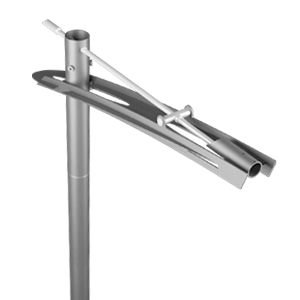

LOGIKA MH

Code: MH

Specific for LOGIKA 2.
Fixing with 1 – 2 brackets.

What products can you combine the pole with?

Discover the urban street luminaires

LOGIKA

Q QUADRO

Other interesting topics

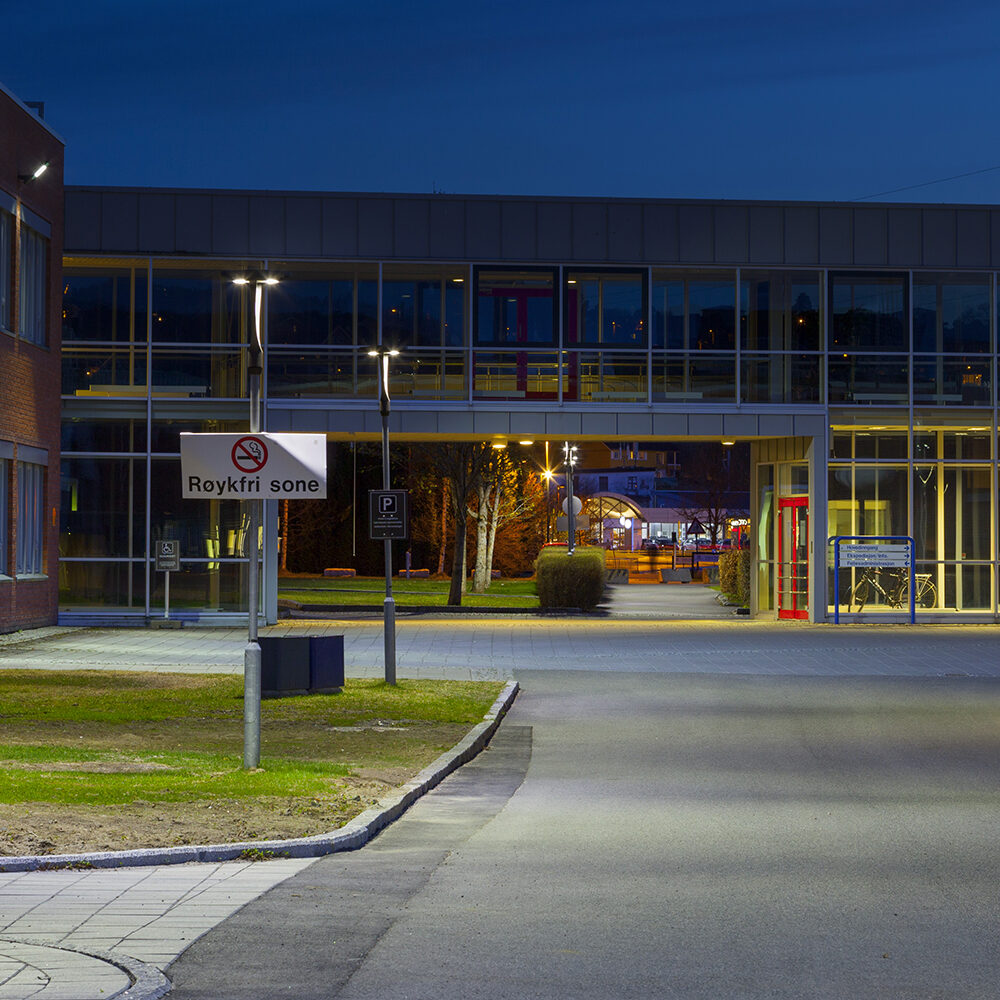

Efficiently light up your parking lot

Click here

Why improve urban areas of cities

Click here

Discover the charm of decorative

Click here

Download

Download the technical documentation of the PQ lighting pole.

Product sheet

PQ lighting pole

Download

2D dwg drawing

PQ lighting pole

The file is reserved for registered users

Discover our products

Access our reserved area "MY AEC" to download any file.

Product warranty

Mounting instructions

3DS files

2D dwg

Photometric files

Trust the professionalism of AEC Illuminazione.

Consultancy and design for each type of lighting system.
