PA series

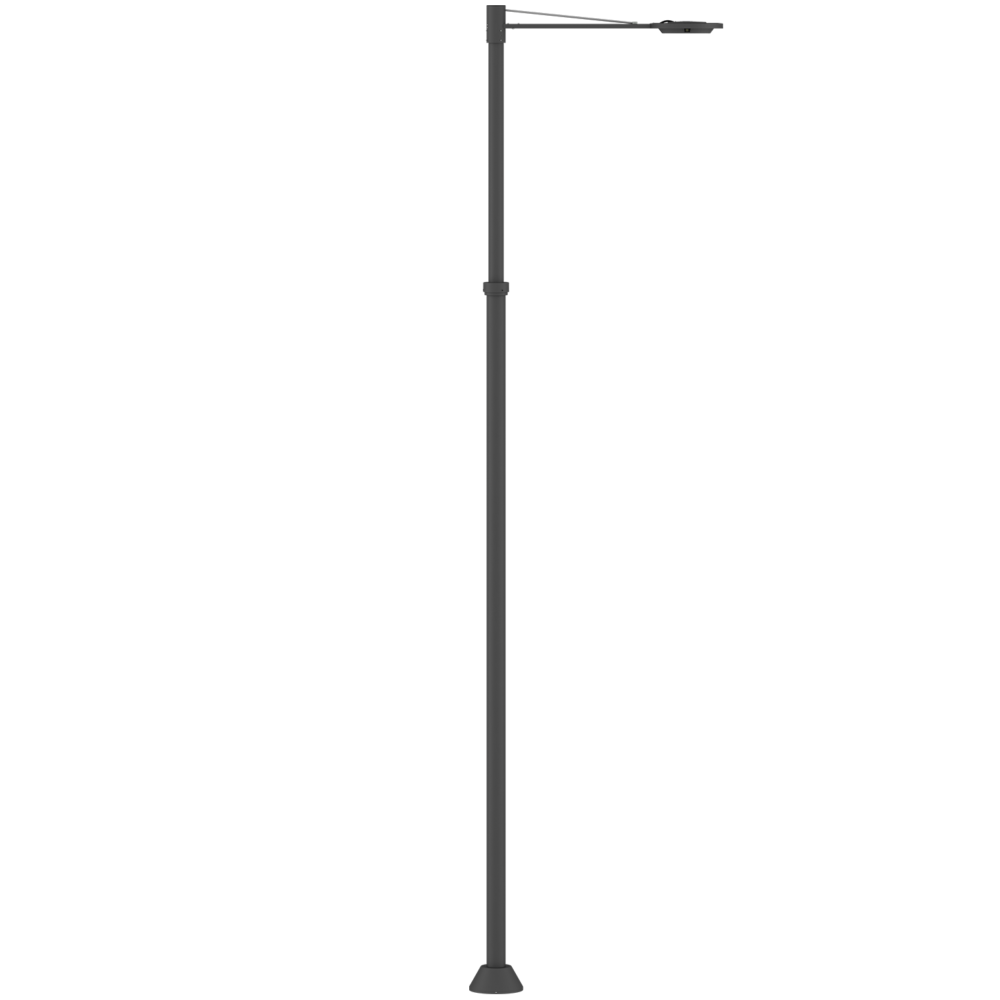

Tapered steel pole.

Tapered circular section steel pole with turned steel washer, consisting of two sections, made with tubular elements welded in sequence.

Circular section Tapered pole

Tapered circular section steel pole with turned steel washer, consisting of two sections, made with tubular elements welded in sequence.

Circular section

Tapered pole

Characteristics

PA pole for public lighting in steel with a circular tapered section with flat-shaped joint washer, in turned steel, consisting of two sections, made with tubular elements welded in sequence. Cable entry slot and terminal block slot with cut edges finish also suitable for the application of a recessed door flush with the pole.

Three available heights

PA 6.5

Height 6500 mm
1° stretch H 4700 mm – Ø 127 mm
2° stretch H 1800 mm – Ø 102 mm
In-ground 800 mm

PA 7.5

Height 7500 mm
1° stretch H 5200 mm – Ø 127 mm
2° stretch H 2300 mm – Ø 102 mm
In-ground 800 mm

PA 8.5

Height 8500 mm
1° stretch H 6000 mm – Ø 127 mm
2° stretch H 2500 mm – Ø 102 mm
In-ground 1000 mm

Available colours

Hot dip galvanizing according to ISO 1461 and subsequent brushing to ensure a perfect surface finish. Polyester powder coating.

Graphite

Code 01

Black

Code 02

Silver

Code 03

Sand

Code 04

Colore RAL

RAL colours

On request

Design

Quality

Safety

Compatible brackets with the street pole PA

MASTER TP 102

Code: TP 102

Specific for MASTER 3 and MASTER 6.
Fixing with 1 – 2 – 3 brackets.

MASTER BR

Code: BR-L

Fixing with 1 – 2 – 3 – 4 brackets.

Q QUADRO ADQ

Code: ADQ3 e ADQ5

Specific for Q3 QUADRO and Q5 QUADRO.
Fixing with 1 – 2 brackets.

LOGIKA ADL

Code: AD L1 and AD L2

Specific for LOGIKA 1 and LOGIKA 2.
Fixing with 1 – 2 brackets.

MA

Code: MA/1

Typically used for ARMONIA.
Fixing with 1 – 2 – 3 brackets.

MA

Code: MA/2

Typically used for ARMONIA.
Fixing with 1 – 2 – 3 brackets.

MA

Code: MA/3

Typically used for ARMONIA.
Fixing with 1 – 2 – 3 brackets.

MA

Code: MA/4

Typically used for ARMONIA.
Fixing with 1 – 2 – 3 brackets.

MA

Code: MA/5

Typically used for ARMONIA.
Fixing with 1 – 2 – 3 brackets.

MP

Code: MP

Typically used for GOBLET.
Fixing with 1 – 2 – 3 brackets.

MK

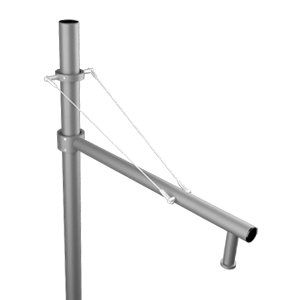

Code: MK/S

Fixing with 1 – 2 – 3 brackets.

MK

Code: MK/K

Fixing with 1 – 2 – 3 brackets.

ME

Code: ME

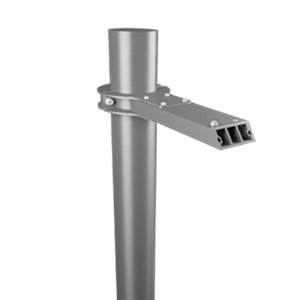

ECORAYS MBC

Code: MBC

Specific for ECORAYS.
Fixing with 1 bracket.
Only for staggered fixing.

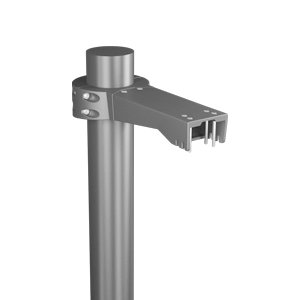

MASTER BR-C

Code: BR-C

Specific for MASTER 3 and MASTER 6.
Fixing with 1 – 2 brackets.
Only for staggered fixing.

AC 102

Code: AC MOD 2.0

Specific for MOD 2.0 URBAN.

Compatible luminaires with the street pole PA

Bracket or post top installations Ø 102 mm.

ARMONIA

COMPASS

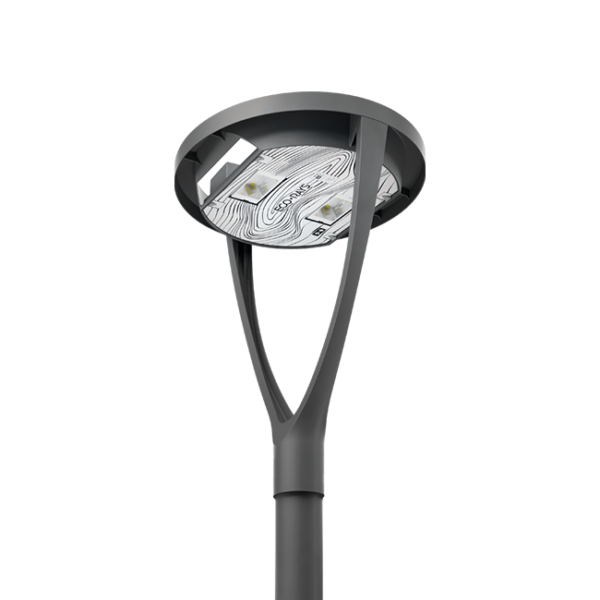

ECORAYS

GOBLET

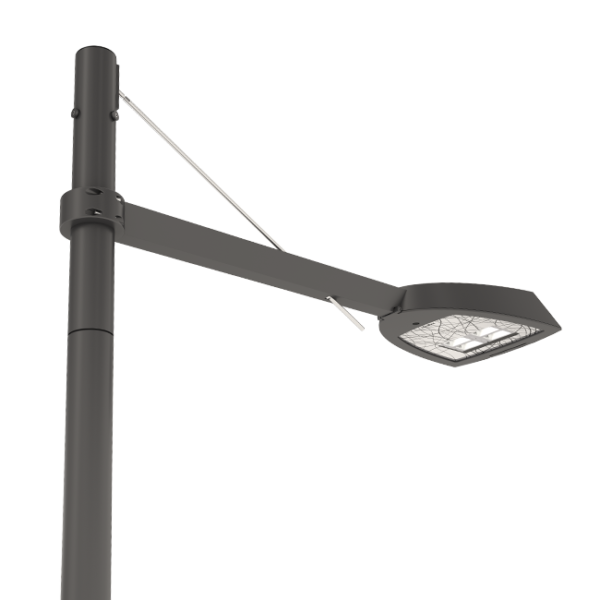

LOGIKA

MASTER 3

MASTER 6

The opportunities of street lighting

Luminaires for urban LED lighting

Why trust AEC Illuminazione

Enter the AEC world

Download

Download the technical documentation of the PA series tapered steel pole.

Product sheet

PA

2d dwg drawings

PA street lighting pole

The file is reserved for registered users

Mounting instructions

BA pattern decorative bases

The file is reserved for registered users
