Poles

EC series

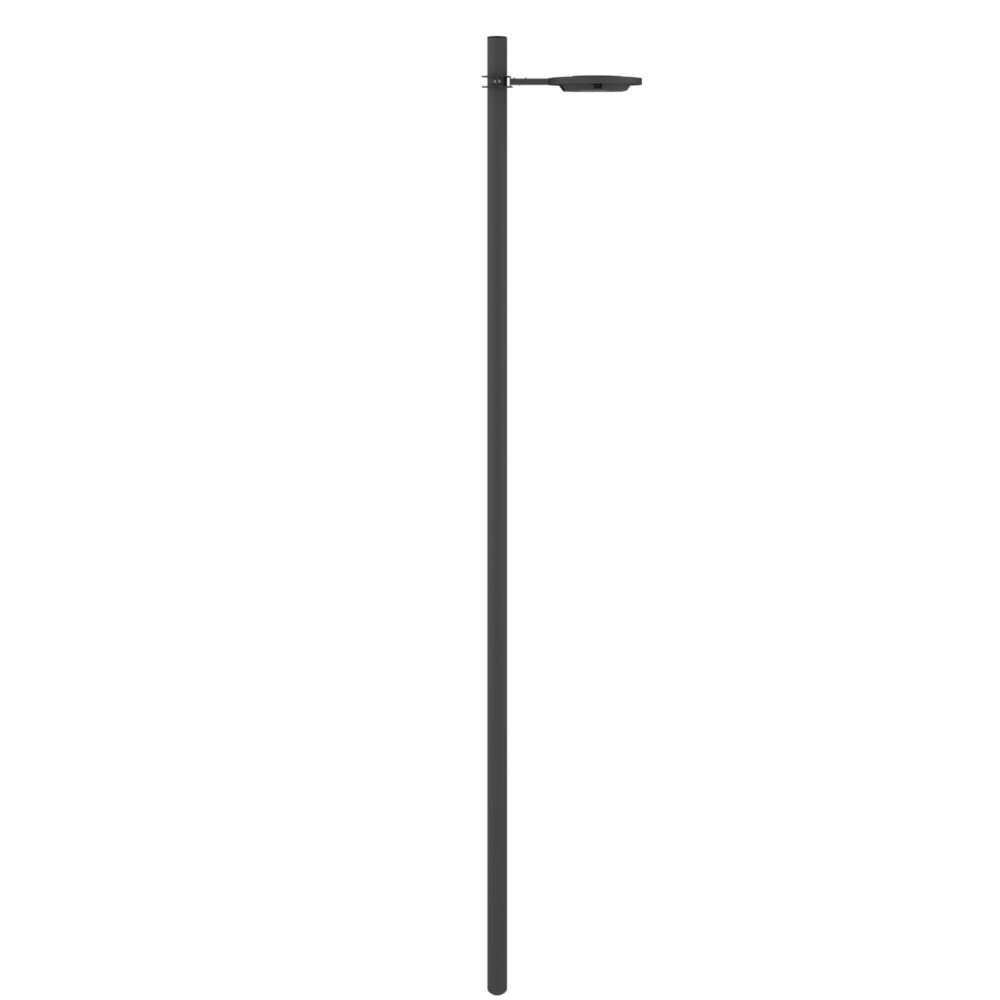

Single section steel pole

Palo per illuminazione urbana in acciaio a sezione circolare realizzato in un unico tratto. Asola ingresso cavi e asola per morsettiera con finitura dei bordi del taglio idonea anche per l’applicazione di portella incassata a filo palo.

Go to download

Circular section Made in Italy

Palo per illuminazione urbana in acciaio a sezione circolare realizzato in un unico tratto. Asola ingresso cavi e asola per morsettiera con finitura dei bordi del taglio idonea anche per l’applicazione di portella incassata a filo palo.

Circular section

Made in Italy

Characteristics

Round steel pole EC for urban pubblica lighting made in a single section. Hot-dip galvanizing according to ISO 1461 and subsequent brushing to ensure a perfect surface finish. Polyester powder coating.

Two heights available

EC 5

Height 5000 mm
Single diameter 102 mm
In-ground 500 mm

EC 5,5

Height 5500 mm
Single diameter 102 mm
In-ground 500 mm

Available colours

Hot dip galvanizing according to ISO 1461 and subsequent brushing to ensure a perfect surface finish. Polyester powder coating.

Graphite

Code: 01

Black

Code: 02

Silver

Code: 03

Sand

Code: 04

Colore RAL

RAL colours

On request

Which brackets is the EC series compatible with

Choose the bracket that is most compatible with your lighting project.

MASTER TP 102

Code: TP 102

Specific for MASTER 3 and MASTER 6.
Fixing with 1 – 2 – 3 brackets.

MASTER BR

Code: BR-L

Specific for MASTER 3 and MASTER 6.
Fixing with 1 – 2 – 3 – 4 brackets.

MASTER BR-C

Code: BR-C

Specific for MASTER 3 and MASTER 6.
Fixing with 1 – 2 brackets.
Only for staggered fixing.

MA

Code: MA/1

Typically used for ARMONIA.
Fixing with 1 – 2 – 3 brackets.

MA

Code: MA/2

Typically used for ARMONIA.
Fixing with 1 – 2 – 3 brackets.

MA

Code: MA/3

Typically used for ARMONIA.
Fixing with 1 – 2 – 3 brackets.

MA

Code: MA/4

Typically used for ARMONIA.
Fixing with 1 – 2 – 3 brackets.

MA

Code: MA/5

Typically used for ARMONIA.
Fixing with 1 – 2 – 3 brackets.

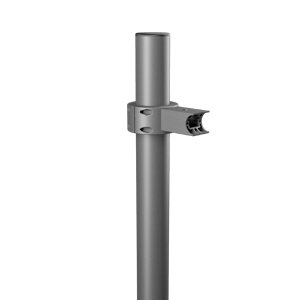

Q QUADRO ADQ

Code: ADQ3 and ADQ5

Typically used for Q3 QUADRO and Q5 QUADRO.
Fixing with 1 – 2 brackets.

LOGIKA ADL

Code: AD L1 and AD L2

Specific for LOGIKA 1 and LOGIKA 2.
Fixing with 1 – 2 brackets.

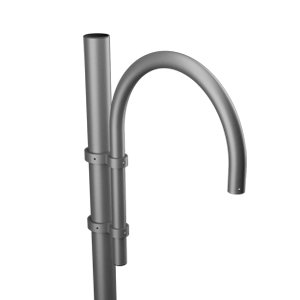

MP

Code: MP

Typically used for GOBLET.
Fixing with 1 – 2 – 3 brackets.

MK

Code: MK/S

Fixing with 1 – 2 – 3 brackets.

MK

MK/K

Fixing with 1 – 2 – 3 brackets.

ME

Code: ME

Fixing with 1 – 2 – 3 brackets.

ECORAYS MBC

Code: MBC

Specific for ECORAYS.
Fixing with 1 bracket.
Only for staggered fixing.

MOD AC

Code: MOD 2.0 AC 102

Specific for MOD 2.0 URBAN.

The products on which you can combine the EC urban pole

ARMONIA

COMPASS

ECORAYS

GOBLET

MASTER 3

MASTER 6

MOD 2.0 URBAN
