AEC TECH Grazing lighting

new

MATREX

Pure innovation

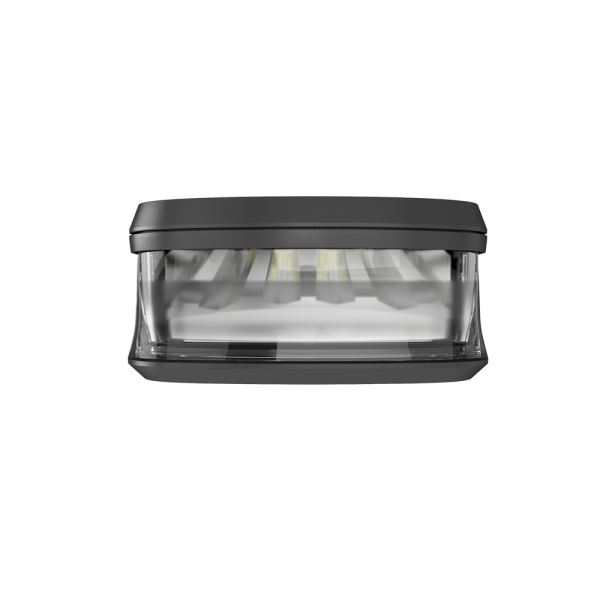

The new AEC solution for grazing lighting in road and urban environments: compact design, maximum versatility.

Download

The new AEC solution for grazing lighting in road and urban environments: compact design, maximum versatility.

Grazing light for road and urban applications

Available in three main versions, designed to adapt
to different installation contexts and control systems.

MATREX AC

230Vac
layer optic

MATREX DC

48Vdc
layer optic

MATREX DC DYNAMIC

48Vdc e ottica dinamica
layer optic

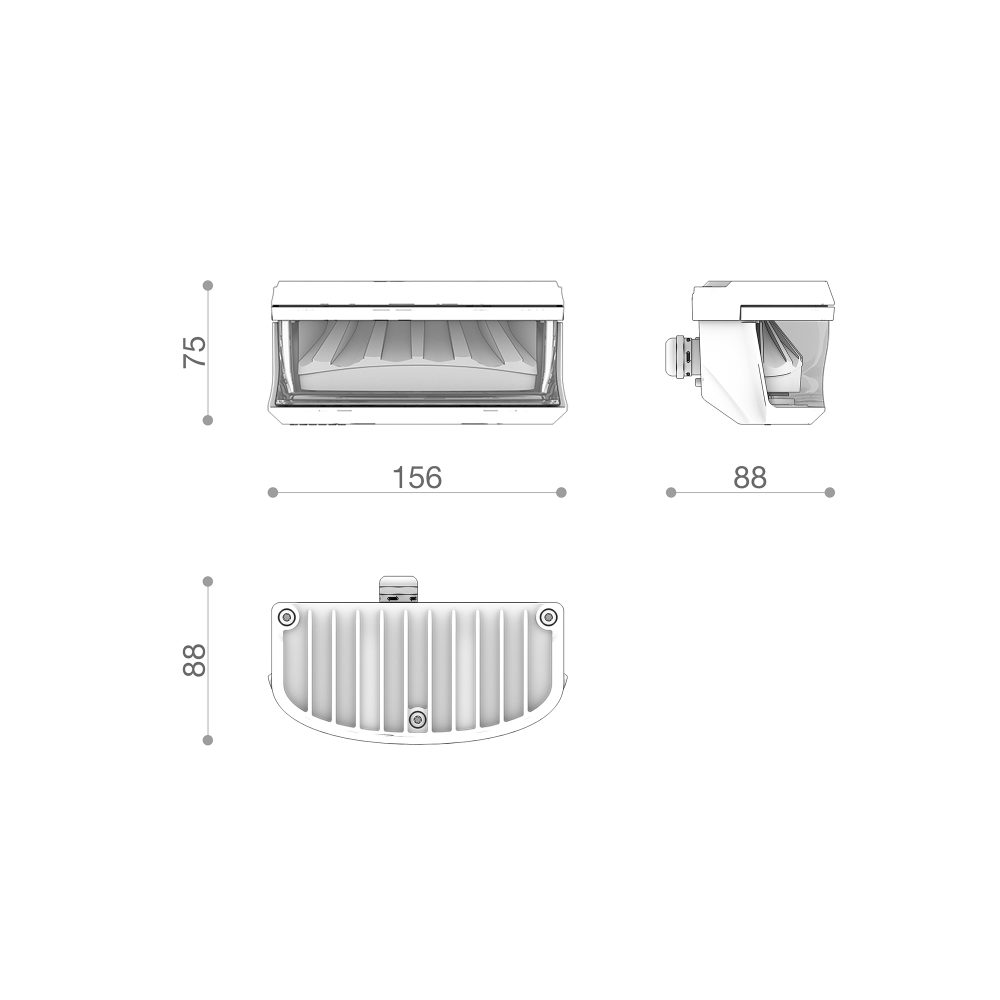

Compact design, extreme versatility

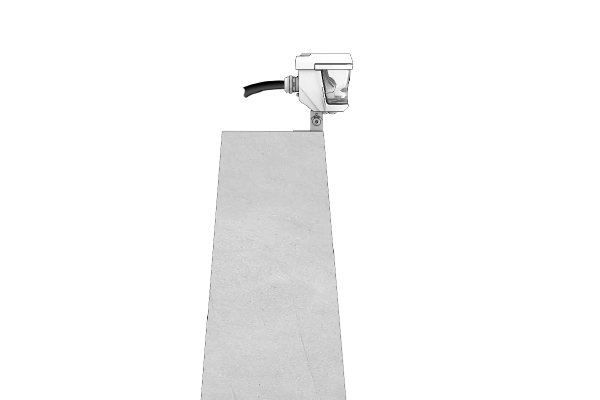

MATREX integrates seamlessly with road
safety structures by using existing mounting points.

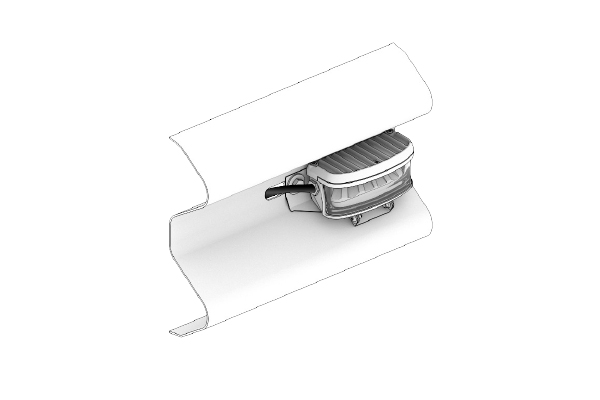

Rear cable entry

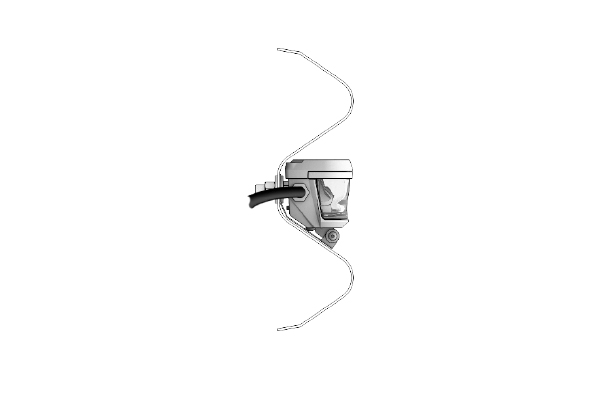

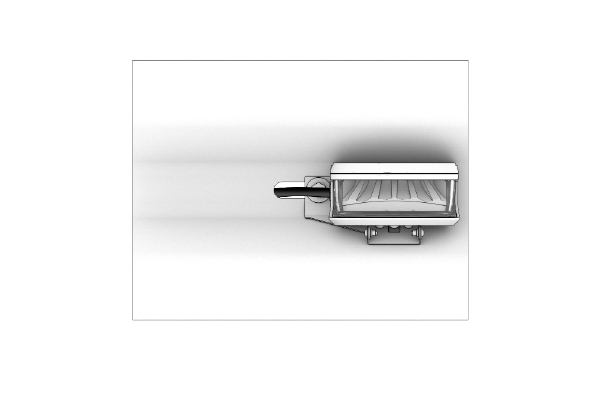

Side cable entry

Application examples: Where and Why

Contexts of use and the design considerations underlying the application.

Where visibility becomes critical, for example in the presence of fog.

Where maintenance costs of the system become predominant.

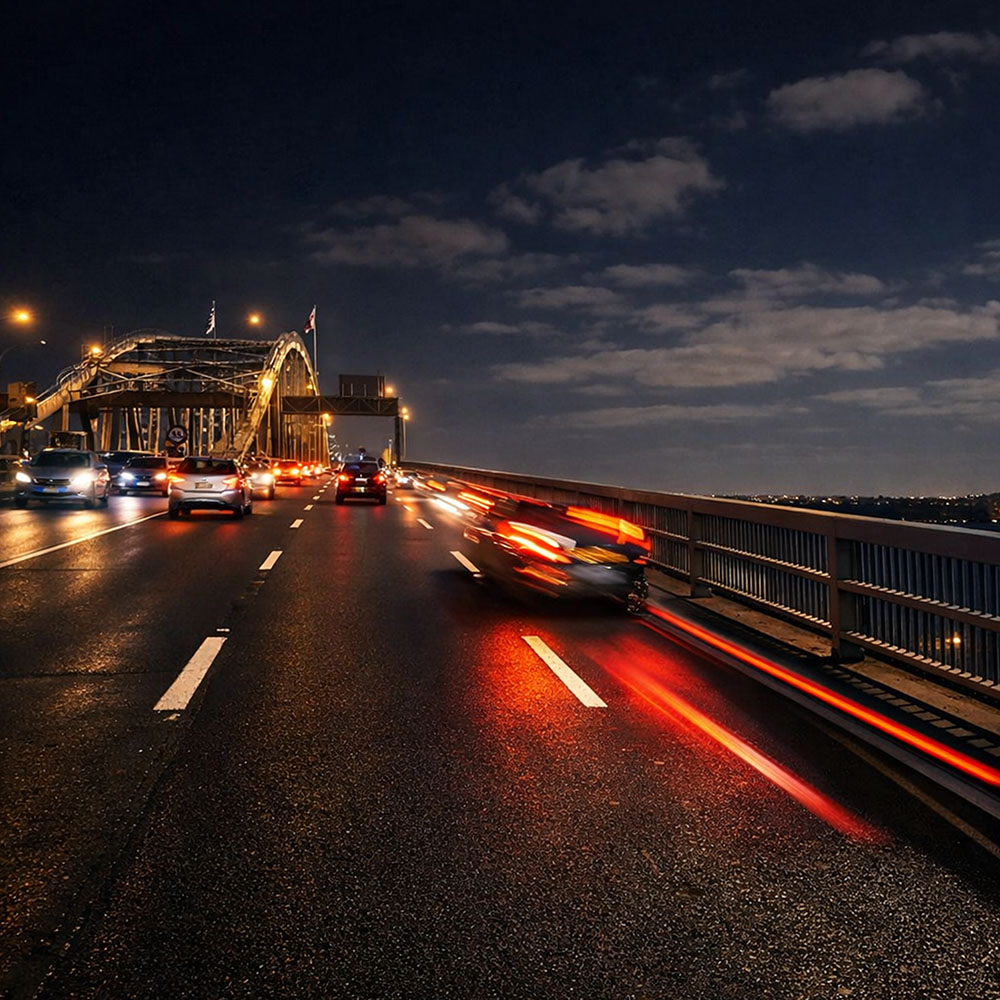

Where the pole cannot be installed, for example on bridges.

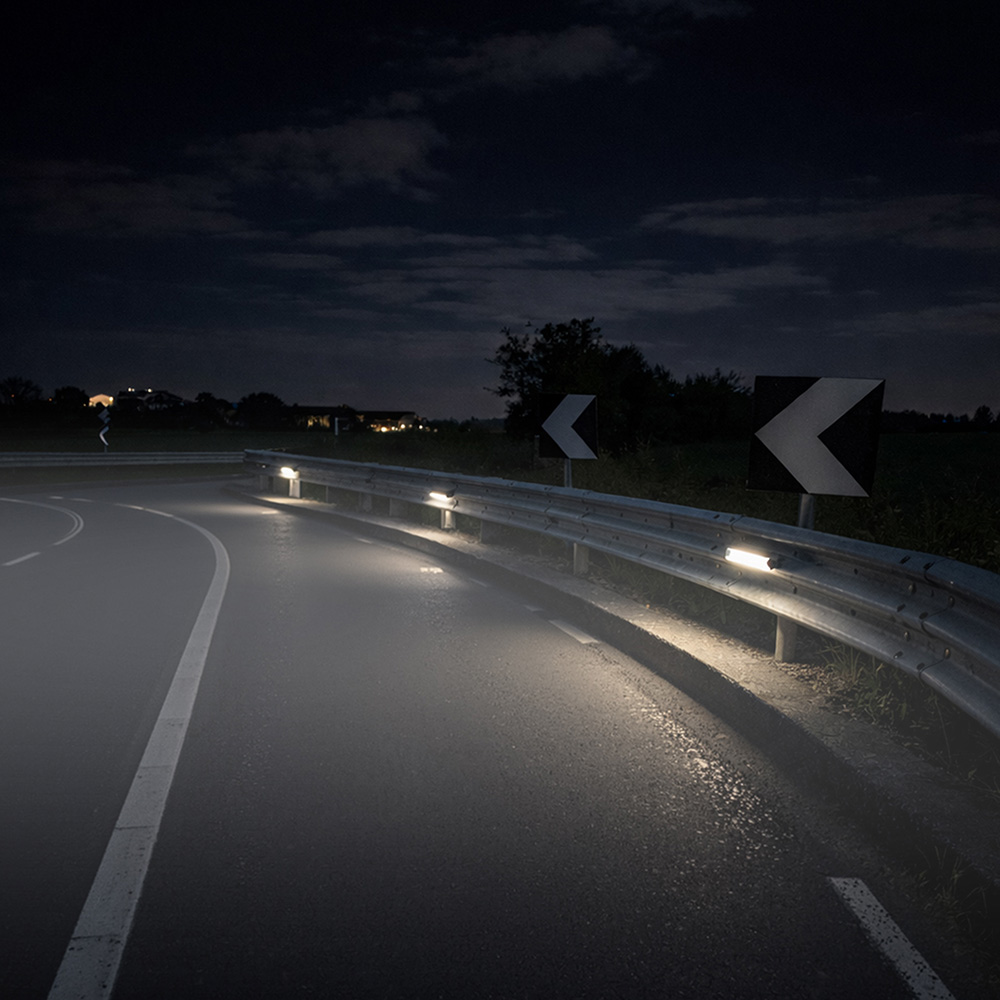

Where the “light guidance” effect can provide greater safety.

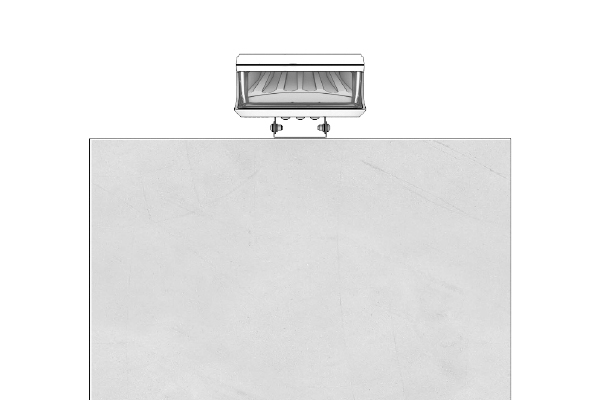

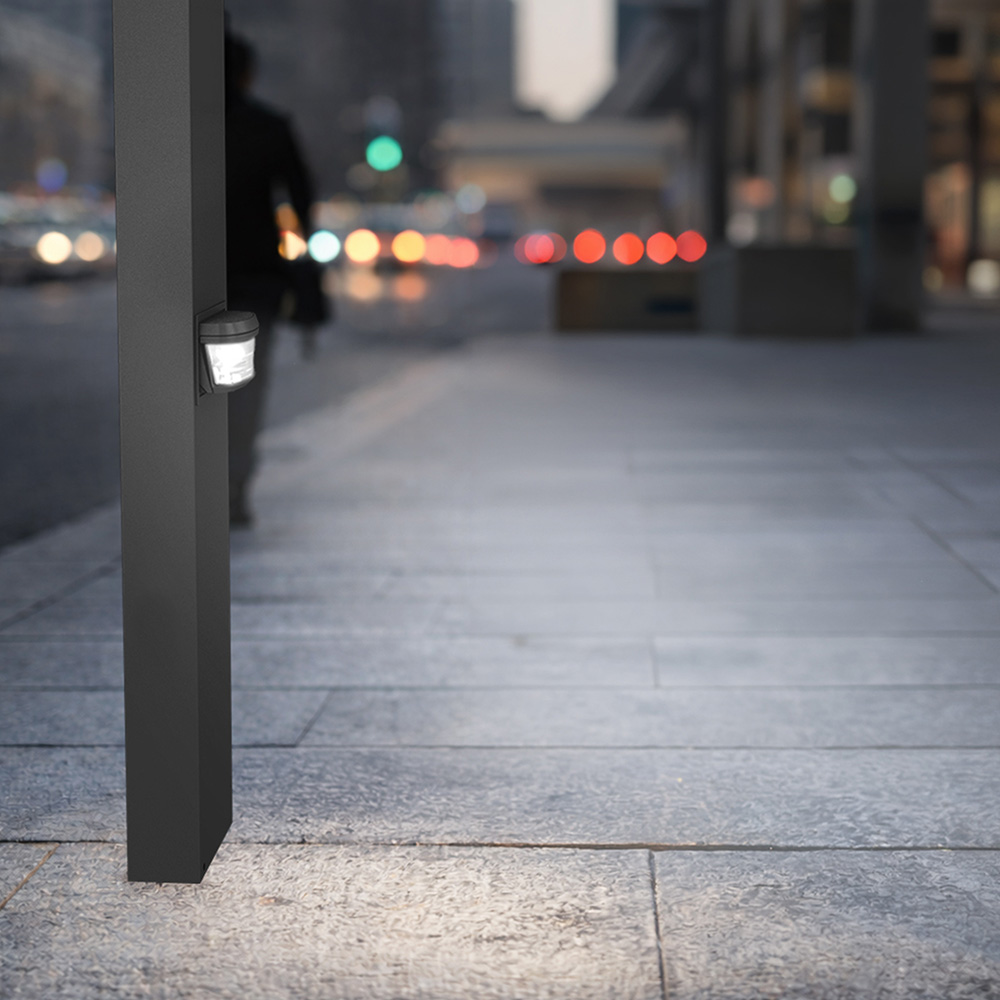

Recessed into bollards, walls, and at the base of poles in urban lighting applications.

Patented innovative optical technology

Dynamic optical emission and reduced installation height.

LAYER OPTIC

• Multi micro-optics architecture based on a metallized reflector.
• Multiple micro-optics cover the same area to be illuminated.
• The photometry is the result of the overlap of distinct light emissions.
• Polycarbonate optical screen with UV protection, IK10 rating, scratch-resistant, weather-resistant, with a special diffusive finish.
• Generation of different photometric distributions through independent adjustment of the intensity of each individual micro-optic.

DYNAMIC LAYER OPTIC

• Precise photometric adjustment
• Dynamic on-site selection of photometry
• Integrated DMX-RDM and CASAMBI control interfaces
• Available with Tunable White technology
• Optional RGB signaling module

Key strengths

Uniformity of light distribution

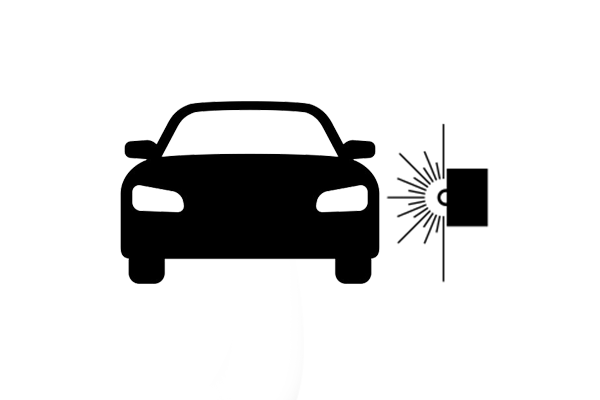

Reduced
glare

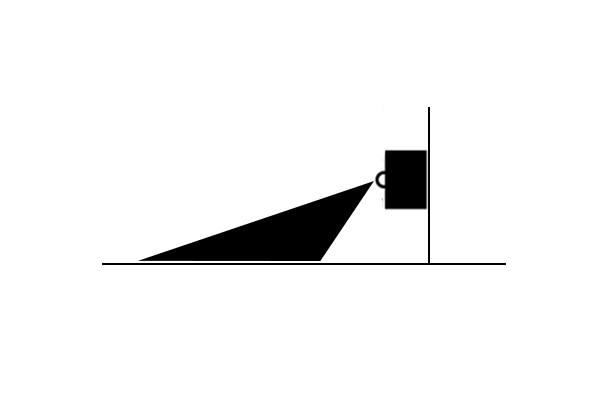

Minimum installation height: 50 cm

Examples of light distributions

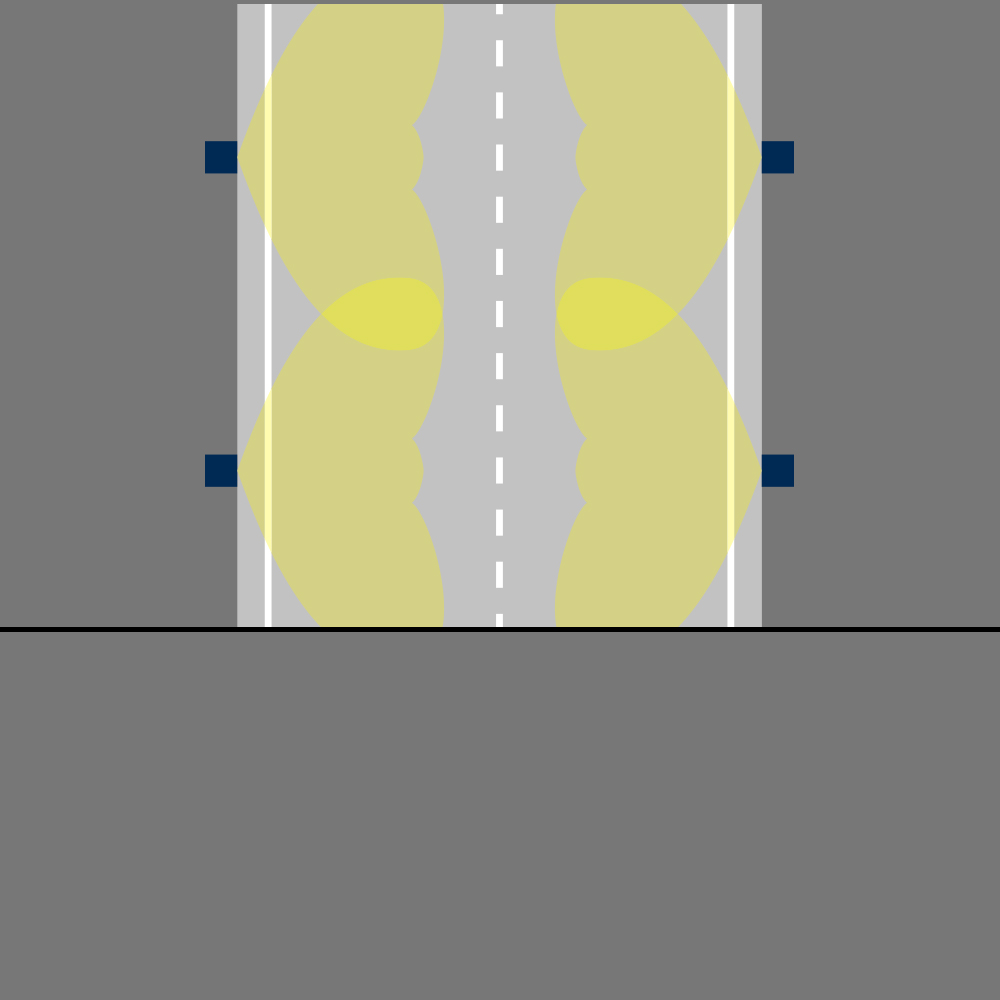

Narrow beam emission

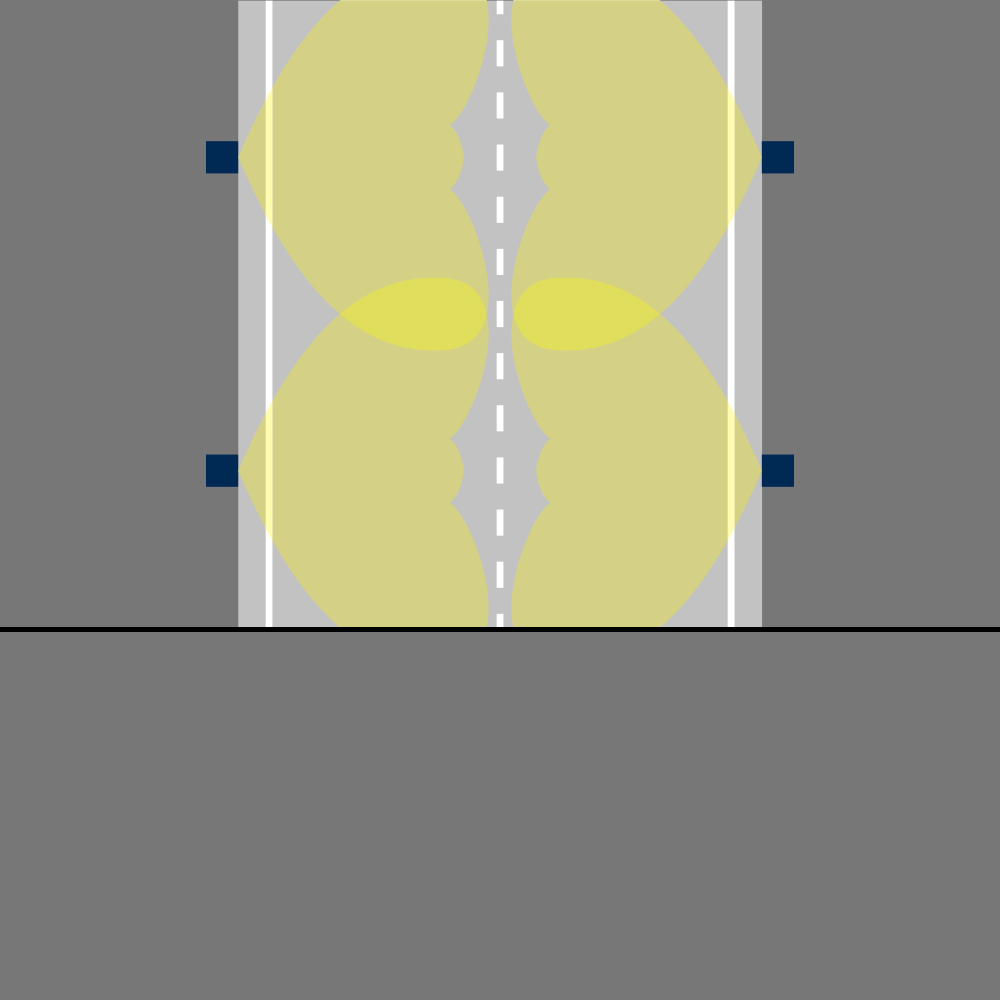

Medium beam emission

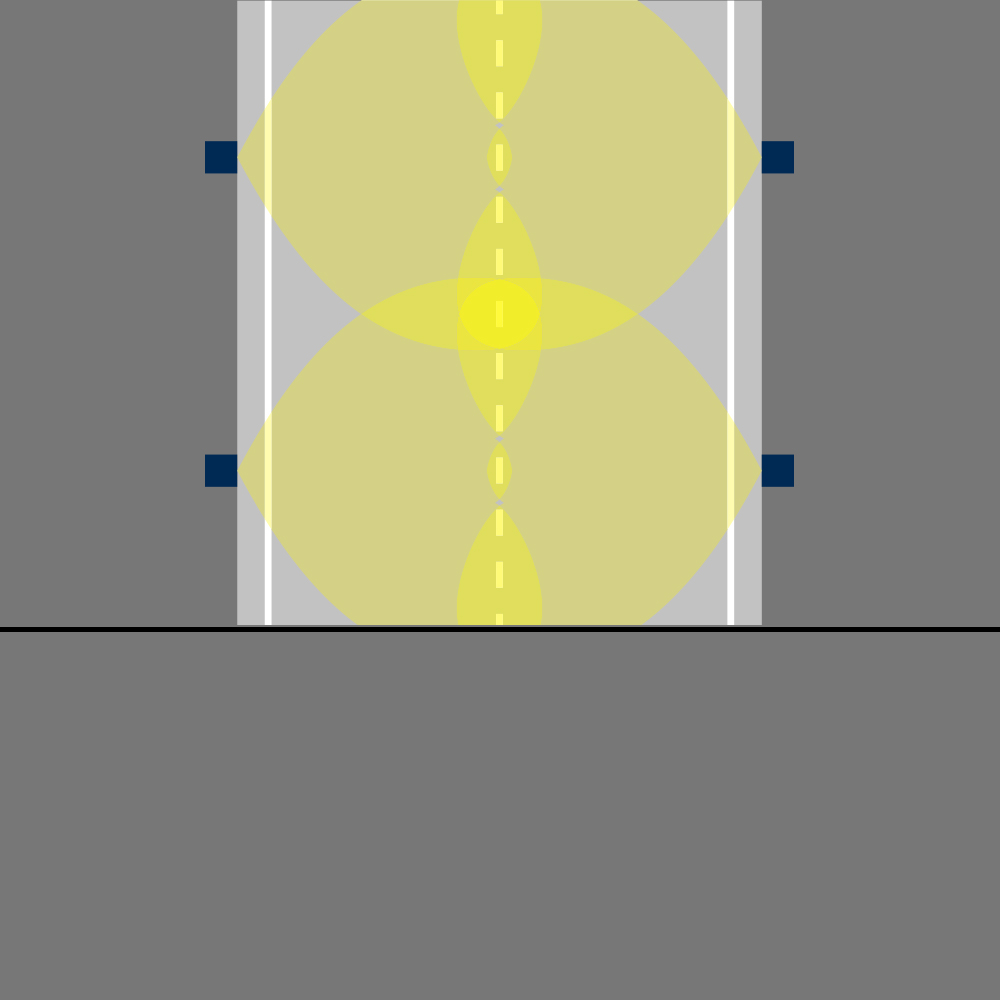

Wide beam emission

Backlight emission

One-way street

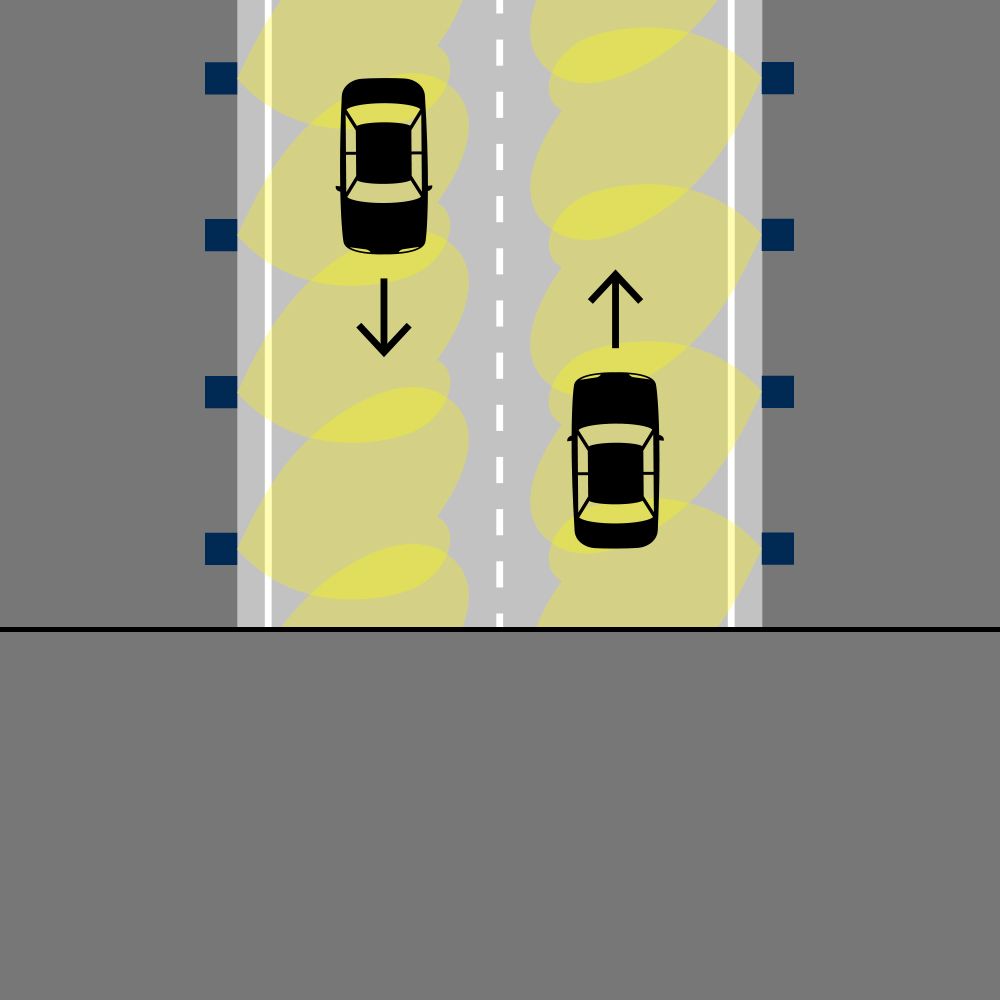

Backlight emission

Two-way street

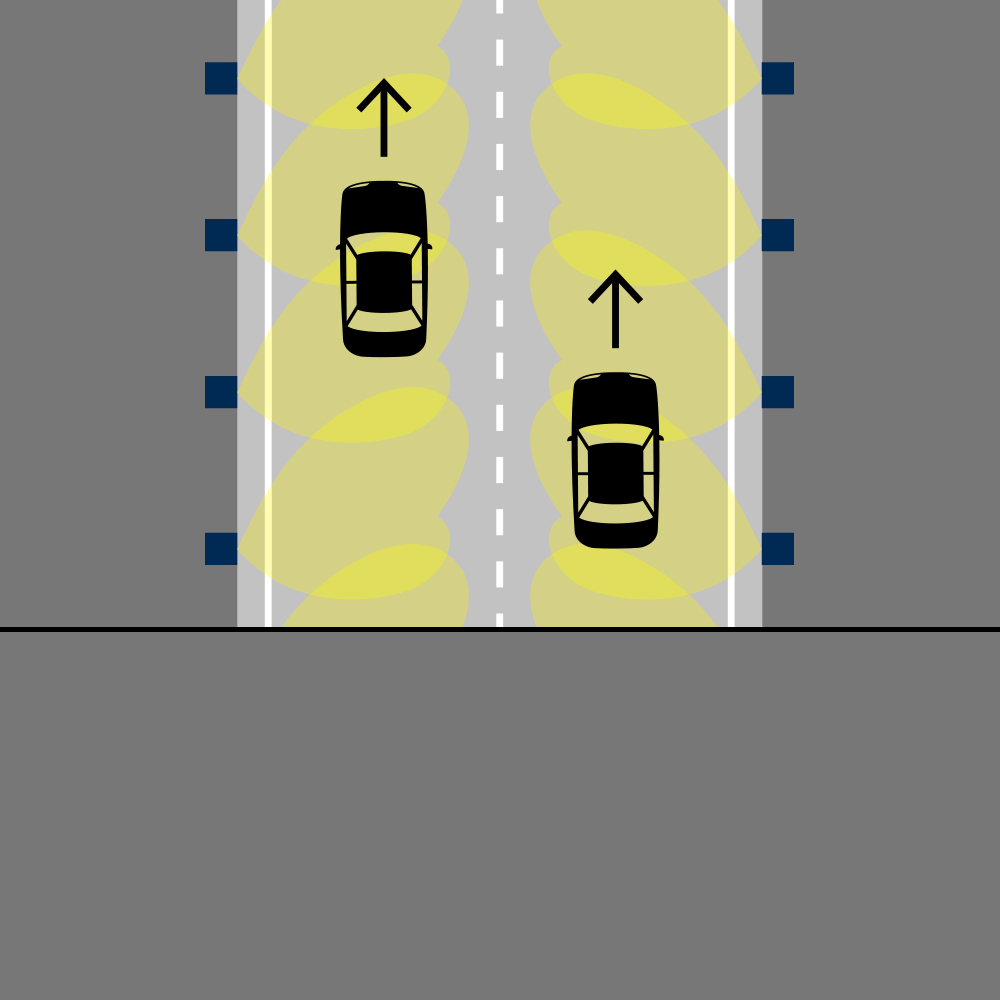

Forward light emission

One-way street

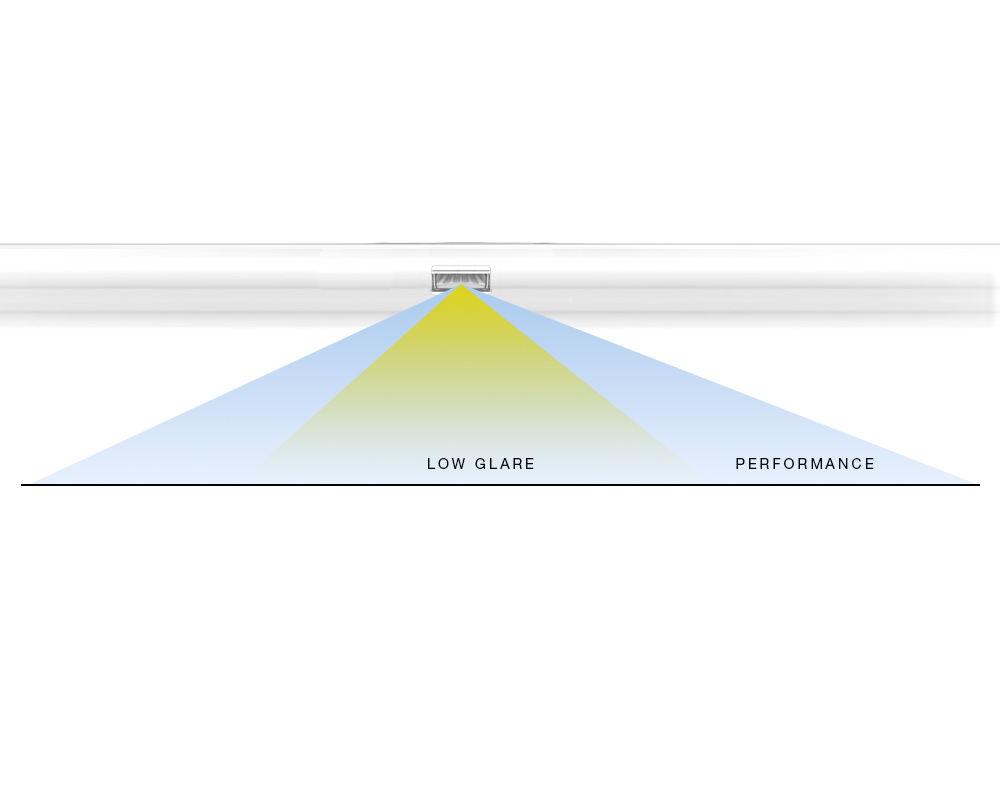

Optical variants

Low-Glare

– Minimizes glare

Performance

– Maximizes spacing distance

Plus

– Suitable for on-site adjustments

Safety without compromise

Integrated safety, guaranteed performance

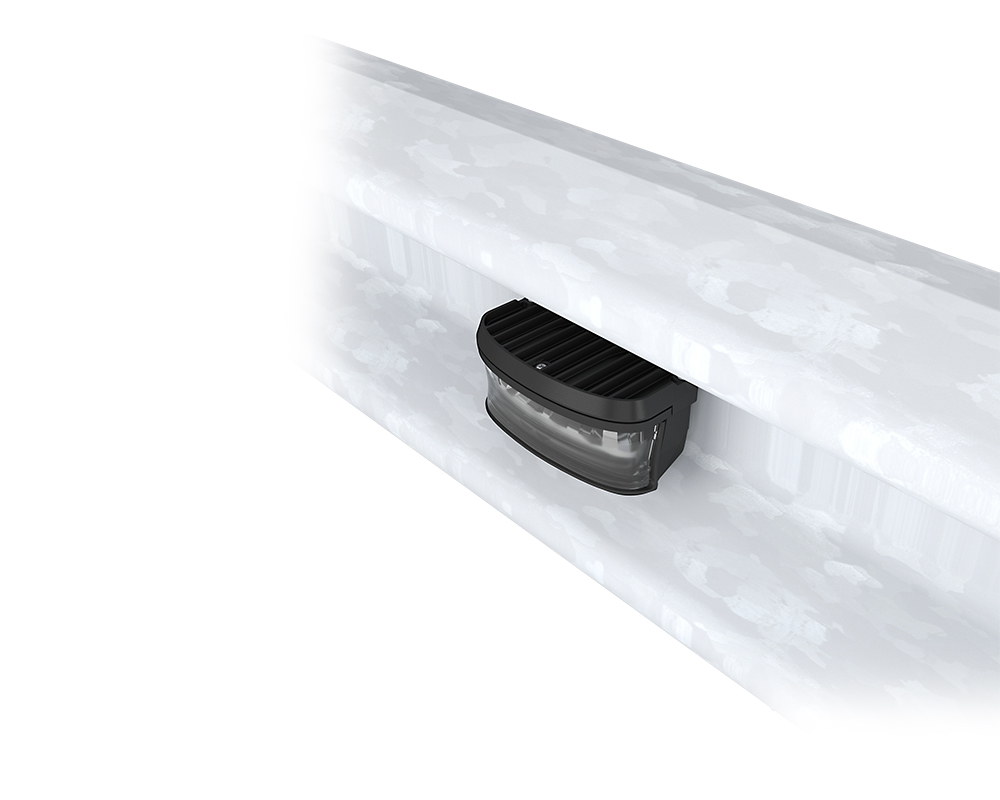

MATREX integrates with road safety structures

It uses existing mounting points, without modifying their configuration or compromising their performance. It is also designed to operate at very low safety voltage (Class III) via a remote SELV power supply, ideal for covering long road sections.

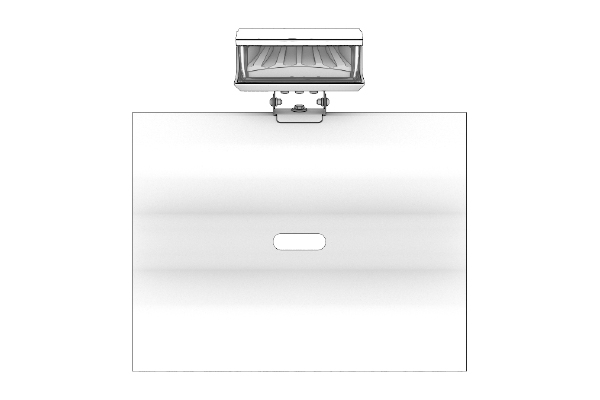

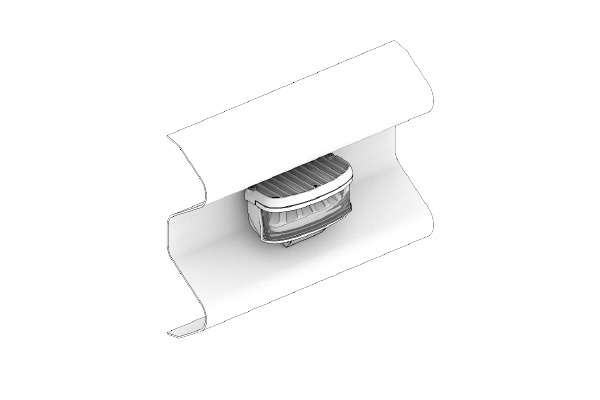

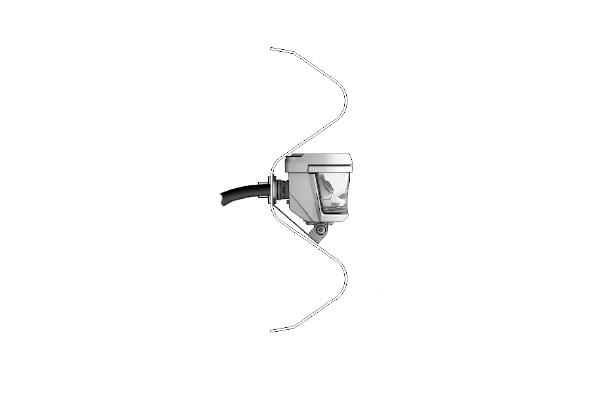

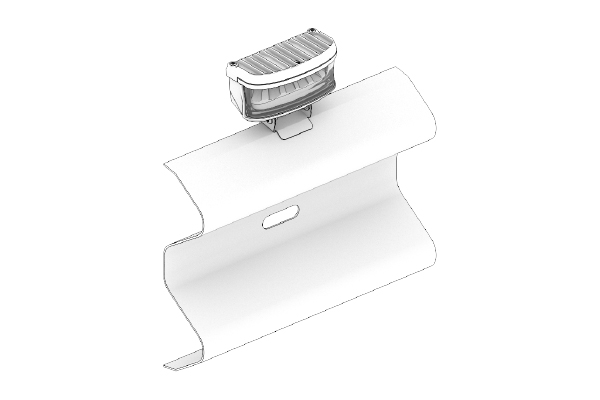

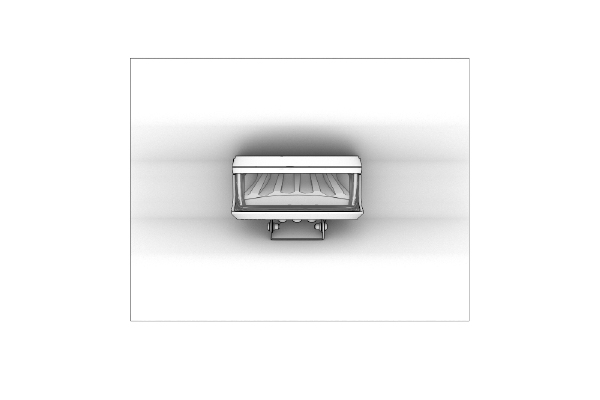

Central mounting on guardrail – Rear cable entry
