Poles

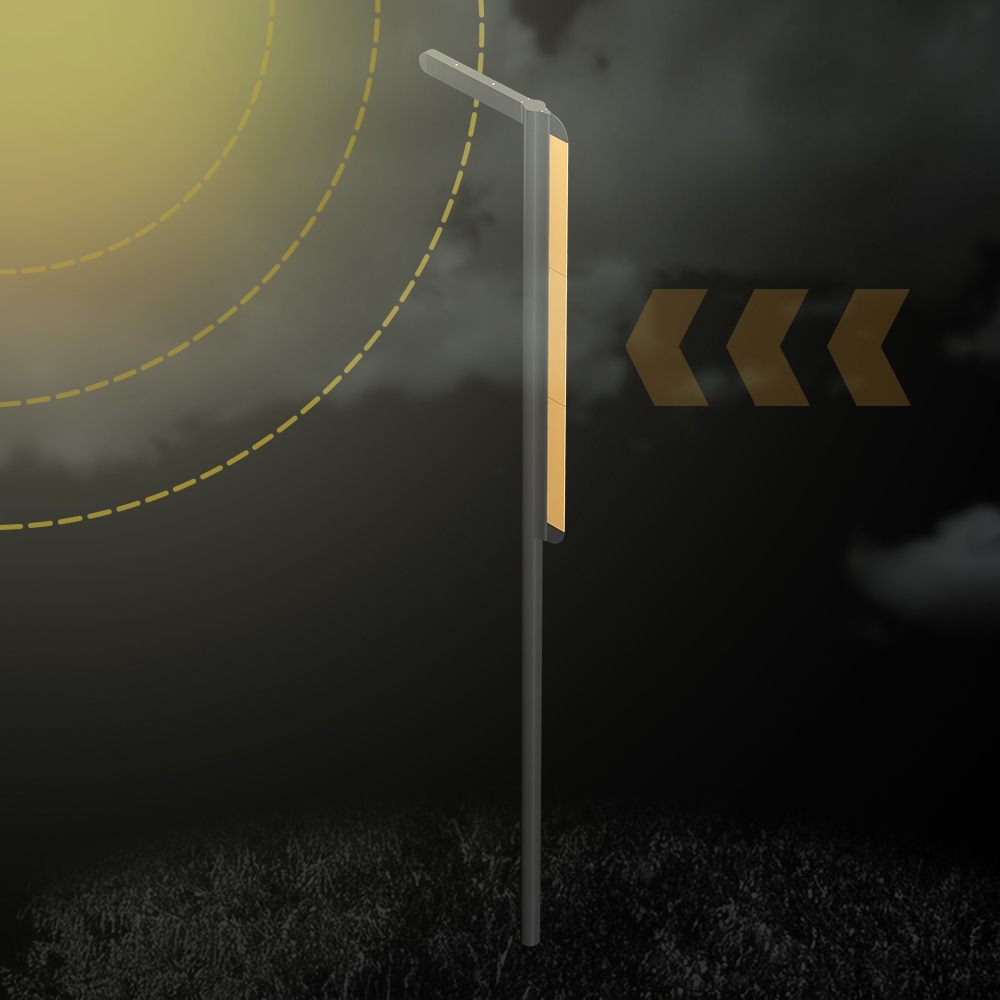

Cylindrical Series Dragon Solar DR.C 168 C

Cylindrical pole Ø 168 with Ø 139 spigot

Circular section steel pole made in a single section with final spigot. Predisposition for Dragon Solar series devices.

Go to downloads
Circular Section Made in Italy

Circular section steel pole made in a single section with final spigot. Predisposition for Dragon Solar series devices.

Characteristics

Circular section steel pole made in a single section with final spigot. Predisposition for Dragon Solar series devices and connection for modules: SOLAR – 3 Modules – 4 Modules. Cable entry slot and terminal block slot with cut edge finish also suitable for the application of a recessed door flush with the pole.

Dragon Solar cylindrical series

Ideal for urban lighting

Download DWG
The three heights available

7000

Height 7000
Dimension Ø 168 mm
Shaft dimension Ø 139 mm
Built 1000 mm

8000

Height 8000
Dimension Ø 168 mm
Shaft dimension Ø 139 mm
Embedding 1000 mm

9000

Height 9000
Dimension Ø 168 mm
Shaft dimension Ø 139 mm
Built 1000 mm

Cylindrical steel pole

Urban lighting innovation

Cylindrical steel pole

Urban lighting innovation

Colors available

Hot galvanizing according to UNI EN ISO 1461 and subsequent brushing to guarantee a perfect surface finish. Polyester powder coating.

Graphite

Code 01

Black

Code 02

Silver

Code 03

Sand

Code 04

Colore RAL

RAL Colors

On request

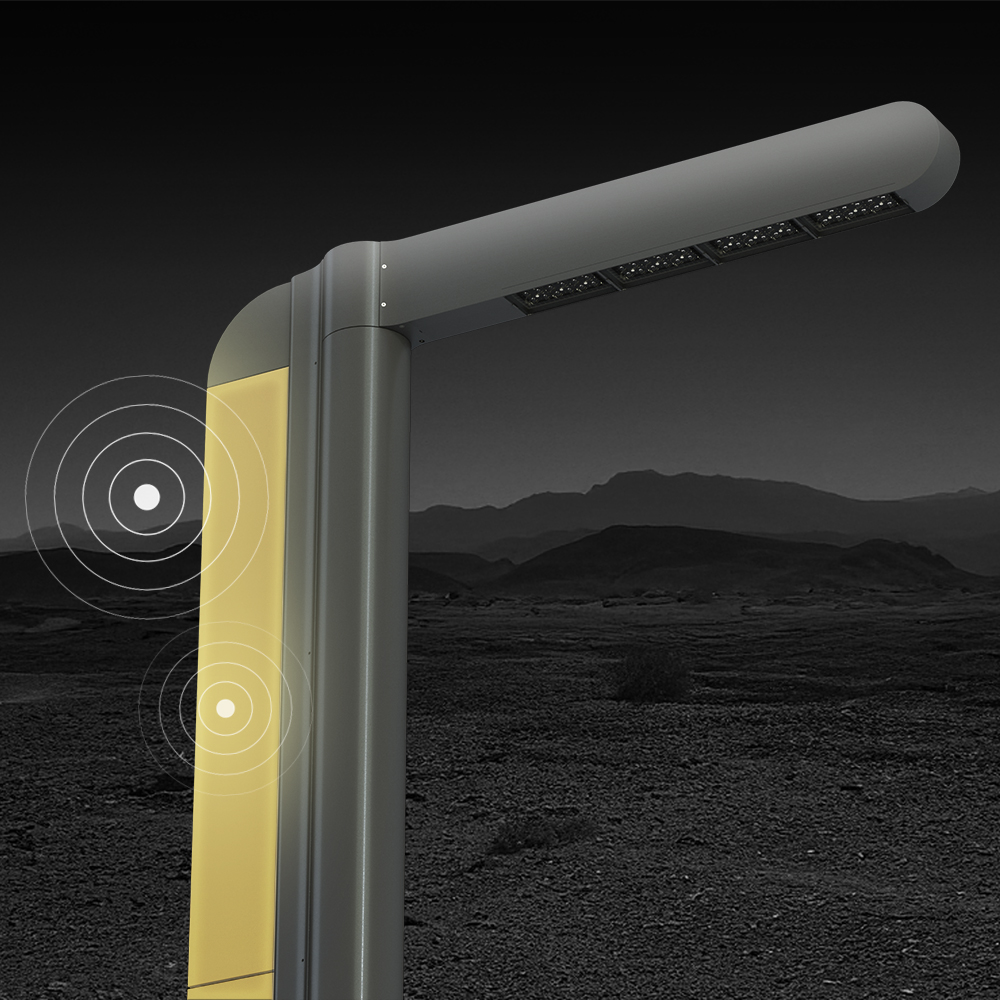

Hybrid solar technology guarantees efficient, reliable and comfortable lighting while respecting the planet.

Minimalist design that integrates perfectly into any urban environment.

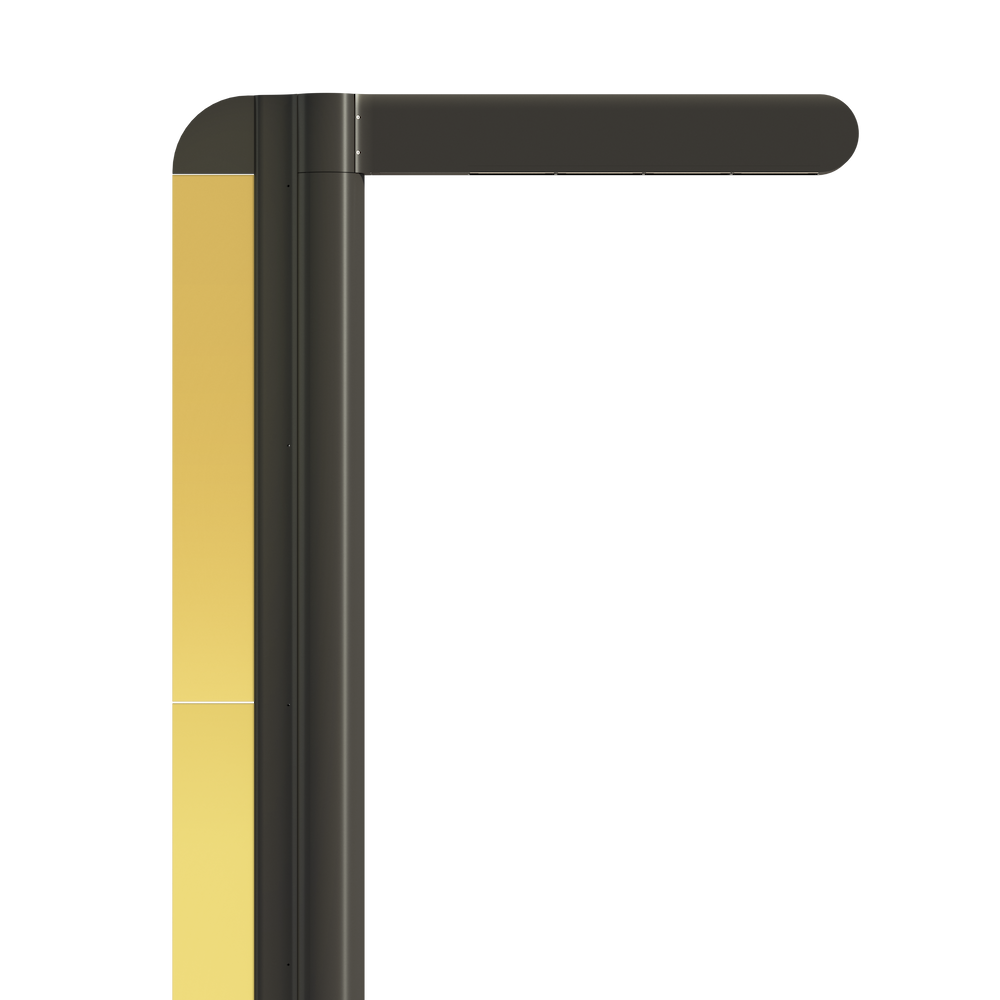

Products compatible with the Dragon Solar cylindrical series pole

Pole top diameter 139 mm

Dragon Solar
