Poles

Cylindrical Series
C127 C

Cylindrical pole with Ø 102 spigot.

Palo in acciaio Ø127 a sezione circolare realizzato in un unico tratto con codolo finale, composto da elementi tubolari saldati in sequenza.

Go to downloads

Circular section Made in Italy

Palo in acciaio Ø127 a sezione circolare realizzato in un unico tratto con codolo finale, composto da elementi tubolari saldati in sequenza.

Circular section

Made in Italy

Characteristics

Ø127 steel pole with circular section made in a single section with end spigot, composed of tubular elements welded in sequence.
Cable entry slot and terminal block slot with cut edge finish also suitable for the application of a recessed door flush with the pole.

Four heights available

5000

Height 5000 mm
Single diameter 127 mm
Shaft diameter 102 mm
In-ground 500 mm

6000

Height 6000 mm
Single diameter 127 mm
Shaft diameter 102 mm
In-ground 800 mm

7000

Height 7000 mm
Single diameter 127 mm
Shaft diameter 102 mm
In-ground 800 mm

8000

Height 8000 mm
Single diameter 127 mm
Shaft diameter 102 mm
In-ground 800 mm

Project examples

Baltimore, USA

Reggio Emilia, Italy

Jesolo, Italy

Varanger, Norway

Available colors of the C127 C street pole

Hot galvanizing according to UNI EN ISO 1461 and subsequent brushing to guarantee a perfect surface finish. Polyester powder coating.

Graphite

Code 01

Black

Code 02

Silver

Code 03

Sand

Code 04

Colore RAL

RAL Colours

On request

Products compatible with the C127 C pole

Final spigot for pole-top luminaire Ø 102 mm.

MASTER 3

MASTER 6

COMPASS

MOD 2.0 URBAN

NOOS

Compatible arms

B01 Series

B02 Series

MF Series

MK Series

MK S Series

MP Series

MP-R Series

MA Series

MA1

MA Series

MA2

MA Series

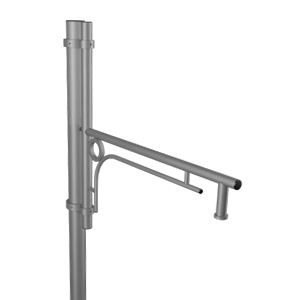

MA3

MA Series

MA4

What could you learn more about…

Where we produce our Made in Italy poles

Discover AEC Pole Division

How to improve the urban environment for people

Discover more

Enter the world of street lighting

Discover more

Download the Poles and Brackets catalogue

Poles for street, urban and decorative LED public lighting.

Go to download

Download

Download the technical documentation of the C127 C Cylindrical Series steel pole.

Product Sheet

Cylindrical pole series C127 C

Download

2D dwg Drawings

Cylindrical pole series C127 C

The file is reserved for registered users

Mounting instructions

Pole with buried

The file is reserved for registered users

Mounting instructions

Pole with plate

The file is reserved for registered users

Discover our products

Access our reserved area "MY AEC" to download any file.

Product warranty

Mounting instructions

3DS files

2D dwg

Photometric files

Trust the professionalism of AEC Illuminazione.

Consultancy and design for each type of lighting system.
