The new AEC pedestrian lighting optic

The new pedestrian perspective reflects the PENTHA philosophy. An advanced optical system with 5 LEDs connected.

A new perspective for pedestrian crossings

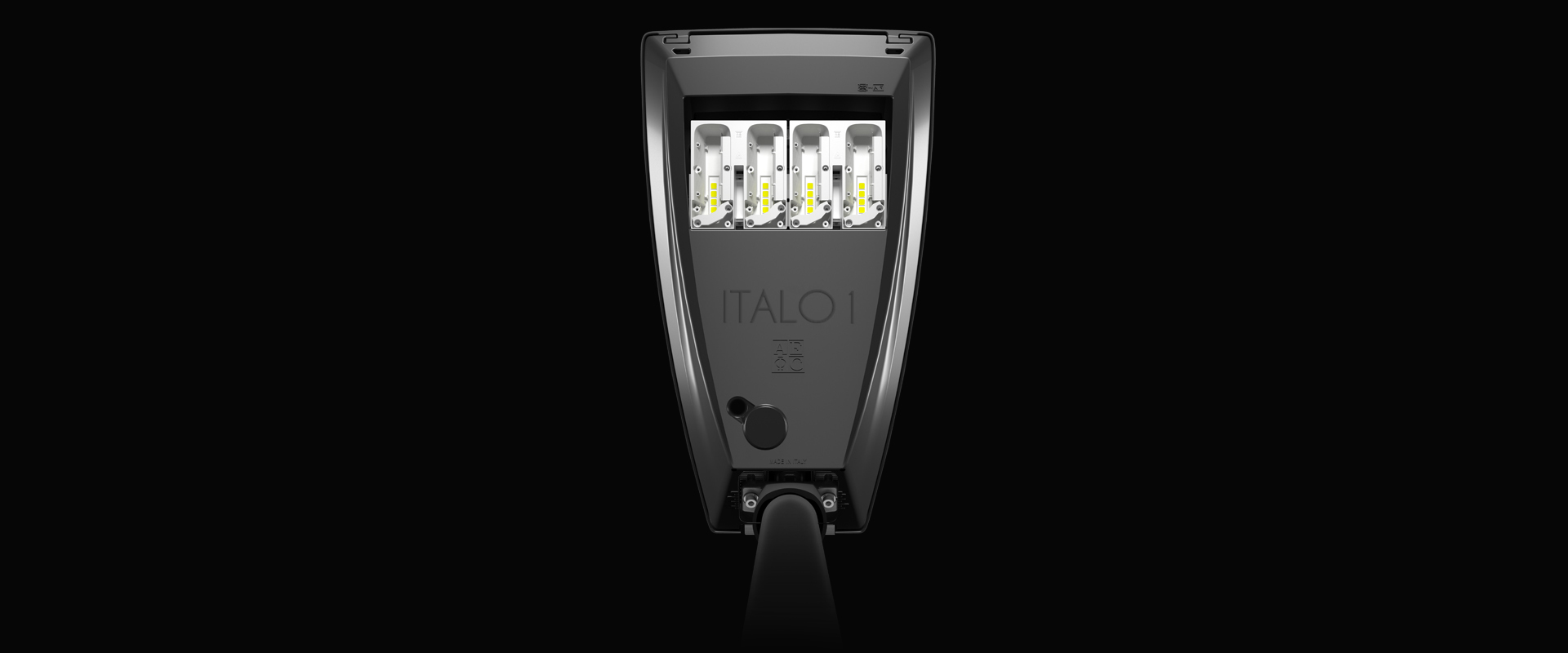

AEC presents the new OP optic specific for pedestrian crossing lighting.
The new OP optics has been developed with new LED sources.
The new optical system, made of the highest quality aluminium, has been designed to guarantee very high performance and greater energy savings.

OTTI

The new performances

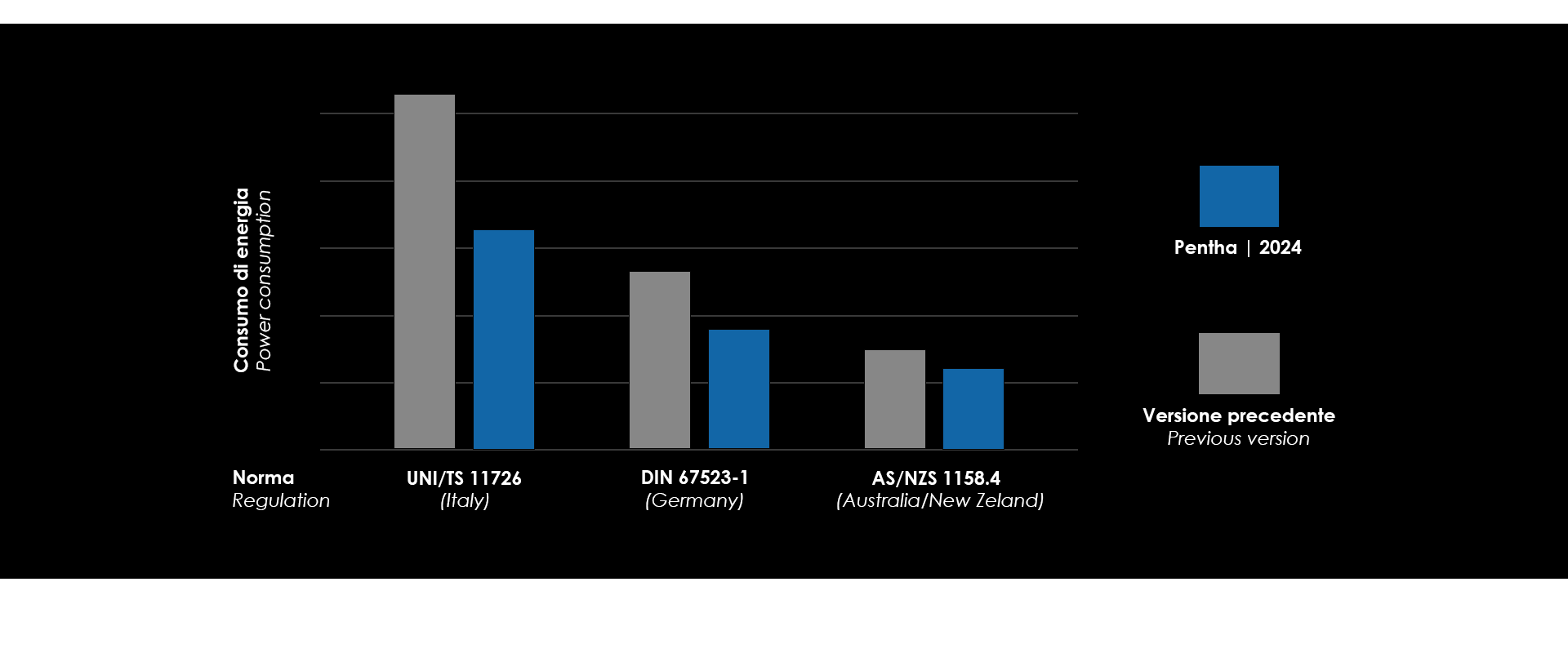

New OP optics and previous version: Performance graph compared
The graph represents 3 examples of reference to the different regulations:
UNI/TS 11726 – DIN 67523-1 – AS/NZS 1158.4

Installation criteria

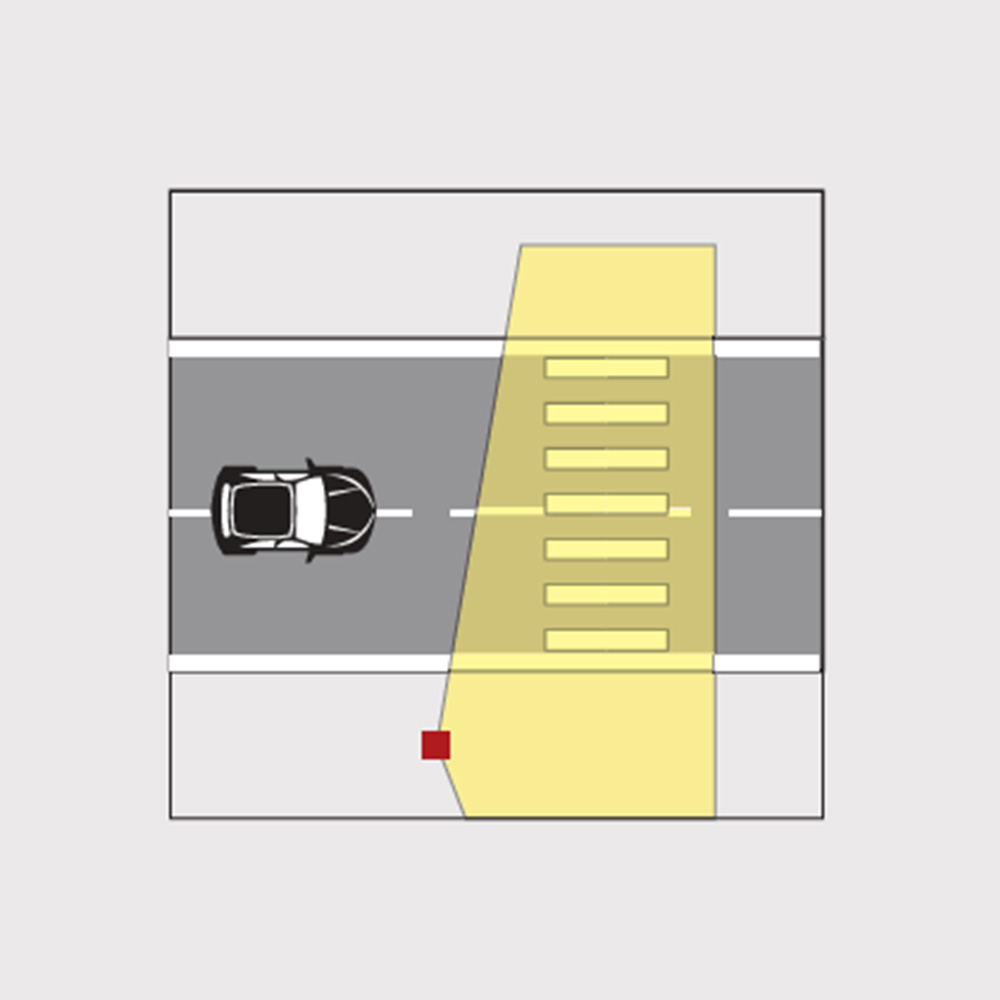

One-way street

Traffic direction ->

OP optics to highlight the crossing areas and guarantee the correct vertical illuminance required by the UNI/TS 11726 standard.

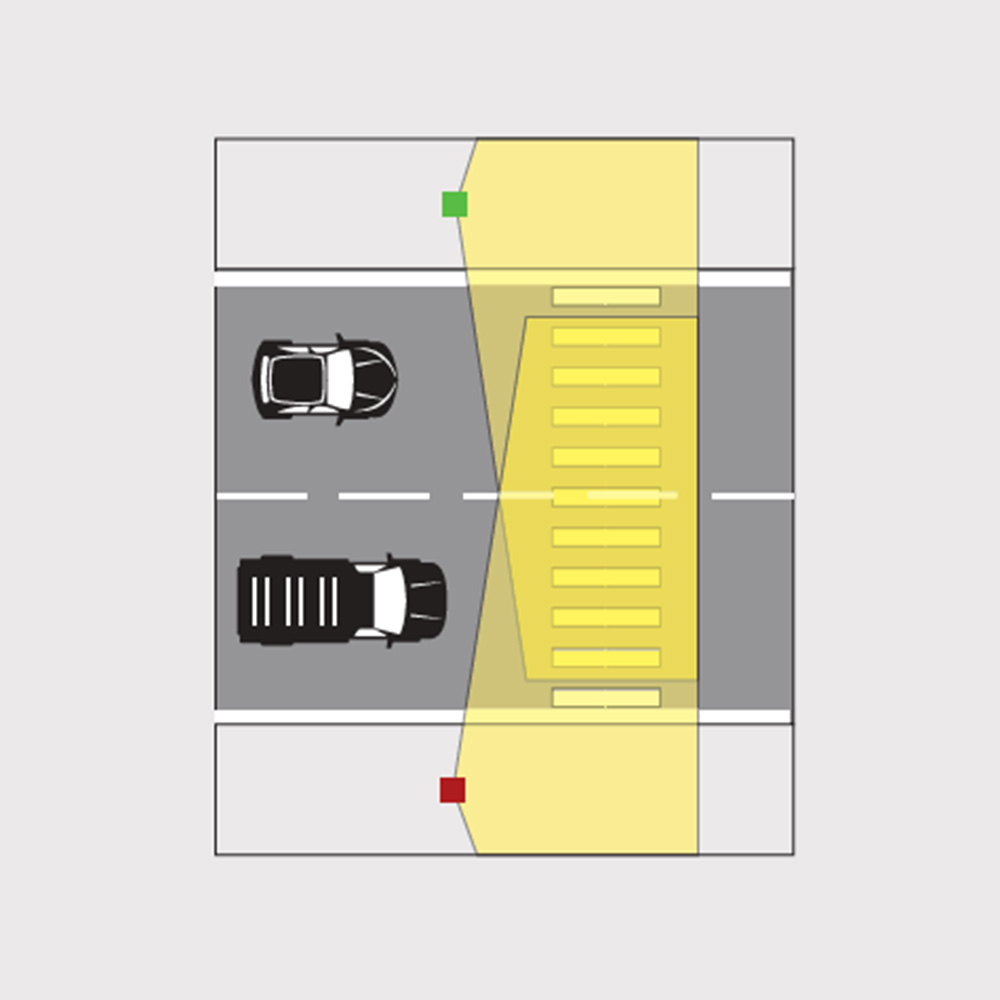

One-way street with two lanes

Traffic direction ->

OP optics to highlight the crossing areas and guarantee the correct vertical illuminance required by the UNI/TS 11726 standard.

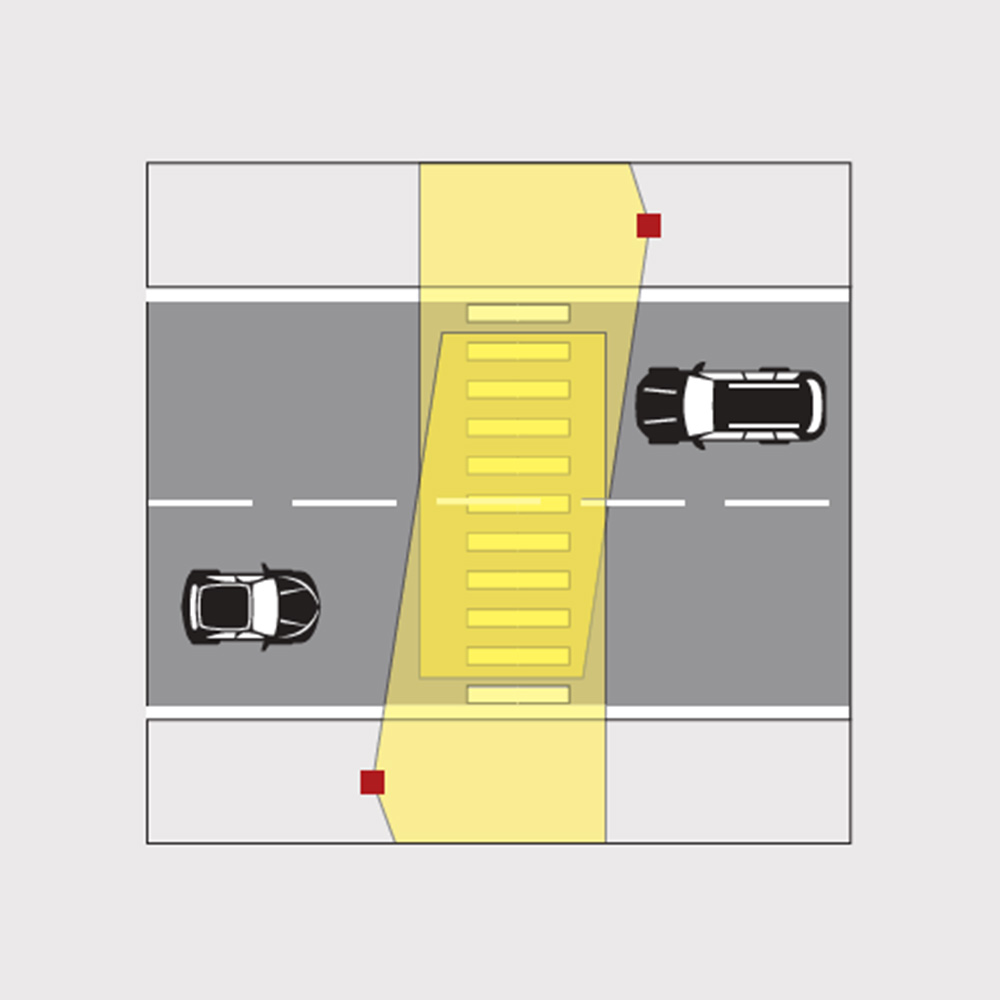

Two-way street

Traffic direction <->

OP optics to highlight the crossing areas and guarantee the correct vertical illuminance required by the UNI/TS 11726 standard.

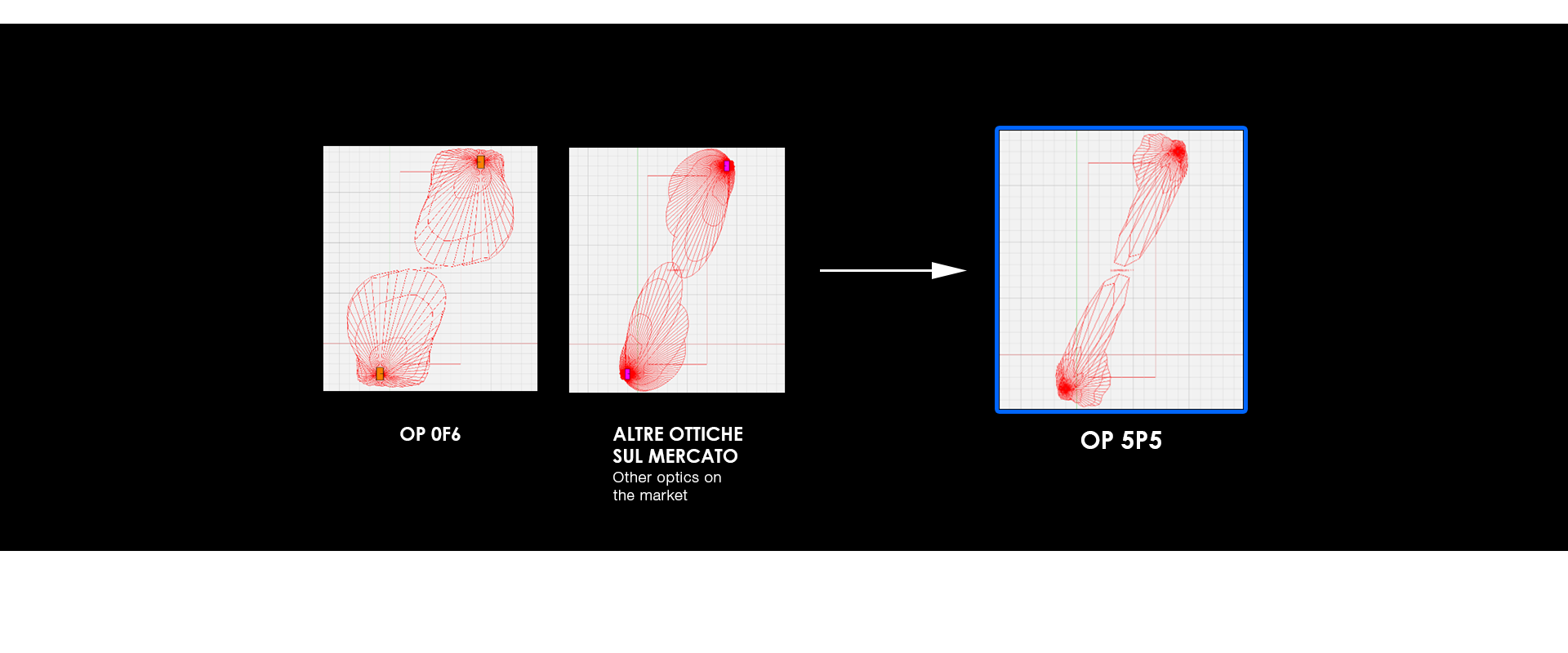

Photometries OP 5P5 optics

The OP 5P5 optic is available in the right and left configurations, whose photometries are mirror images of each other: this allows each pedestrian crossing to be adequately illuminated, regardless of the direction of traffic.

Cutting-edge systems and machinery

rn

rn

Inline assembly

The modern technologies used by AEC in the production lines allow it to control all optical assembly steps. The assembly phases are monitored with IoT systems that allow the management of the bidirectional information flow to support operators and the measurement of production/quality KPIs, ensuring correct compliance with production phases and times.

Discover the products designed for pedestrian optics

This innovative optical system will progressively update all the products in the AEC catalog but is already available on:
ITALO 1 – ITALO 2 – I-TRON ZERO – ITRON 2
