Poles

PH series

Design steel pole

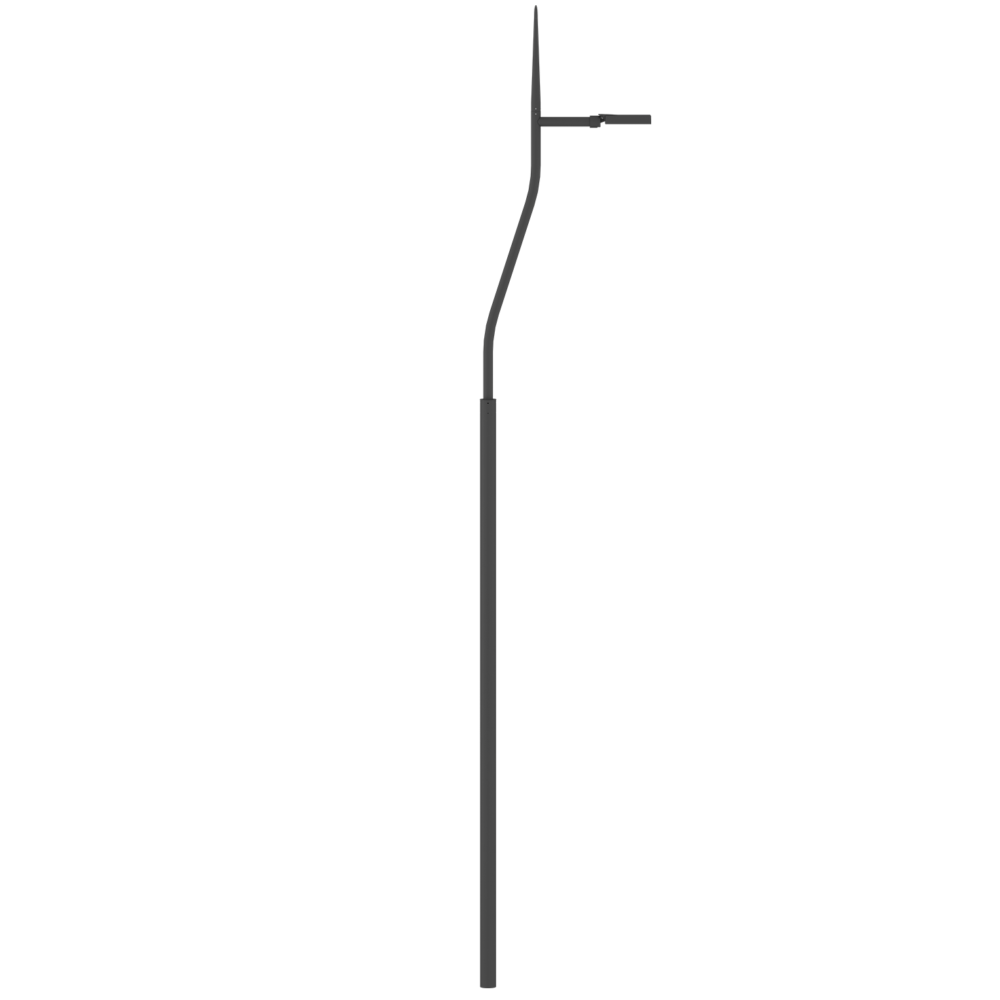

PH pole for public lighting in steel is composed of two distinguished elements. The first part is a circular tubular section made in a single section. The second upper part is a circular tubular section with a curved profile.

Go to download
Circular section Made in Italy

PH pole for public lighting in steel is composed of two distinguished elements. The first part is a circular tubular section made in a single section. The second upper part is a circular tubular section with a curved profile.

Design pole for public lighting

It characterizes the urban streets of the city with a couple of designs such as the PH series, with a curved top section.

PH street urban lighting pole

Perfect design pole for both street and urban lighting

Download the dwg
Discover the 4 available heights

PH 6

Height 6000 mm
Tip length 850 mm
Dimension at the base 127 mm
Bracket diameter Ø 76 mm
Bracket projection 880 mm
In-ground 800 mm

PH 7

Height 7000 mm
Tip length 850 mm
Dimension at the base Ø 127 mm
Bracket diameter 76 mm
Bracket projection 880 mm
In-ground 800 mm

PH 8

Height 8000 mm
Tip length 850 mm
Dimension at the base Ø 127 mm
Bracket diameter 76 mm
Bracket projection 880 mm
In-ground 800 mm

PH 9

Height 9000 mm
Tip length 850 mm
Dimension at the base Ø 139 mm
Bracket diameter 76 mm
Bracket projection 880 mm
In-ground 800 mm

The available colours

Hot dip galvanizing according to ISO 1461 and subsequent brushing to ensure a perfect surface finish. Polyester powder coating.

Graphite

Code 01

Black

Code 02

Silver

Code 03

Sand

Code 04

Colore RAL

RAL colours

On request

Discover all the cities we lit up

AEC case studies

LED lamps compatible with the PH pole

Combine the PH urban pole with uminaires that can be installed on Ø 76mm brackets

ITALO 2 URBAN

Q-DROME

ITALO

You could also learn more…

The advantages of  Smart lighting

Click here

Enter the AEC lighting world

Click here

How to correctly illuminate large areas

Click here

Download

Download the technical documentation of the PH lighting pole.

Product sheet

PH lighting pole

Download

2D dwg drawing

PH lighting pole

The file is reserved for registered users

Mounting instructions

BA pattern decorative bases

The file is reserved for registered users
