COMPASS TS

Urban spirit, extreme performance.

The tapered version of COMPASS has been designed to illuminate larger urban streets, intersections and city junctions. The tapered application allows the luminaire to be more freely modular in the space, guaranteeing high performance and visual comfort.

Go to download
Zhaga D4i Visual comfort

The tapered version of COMPASS has been designed to illuminate larger urban streets, intersections and city junctions. The tapered application allows the luminaire to be more freely modular in the space, guaranteeing high performance and visual comfort.

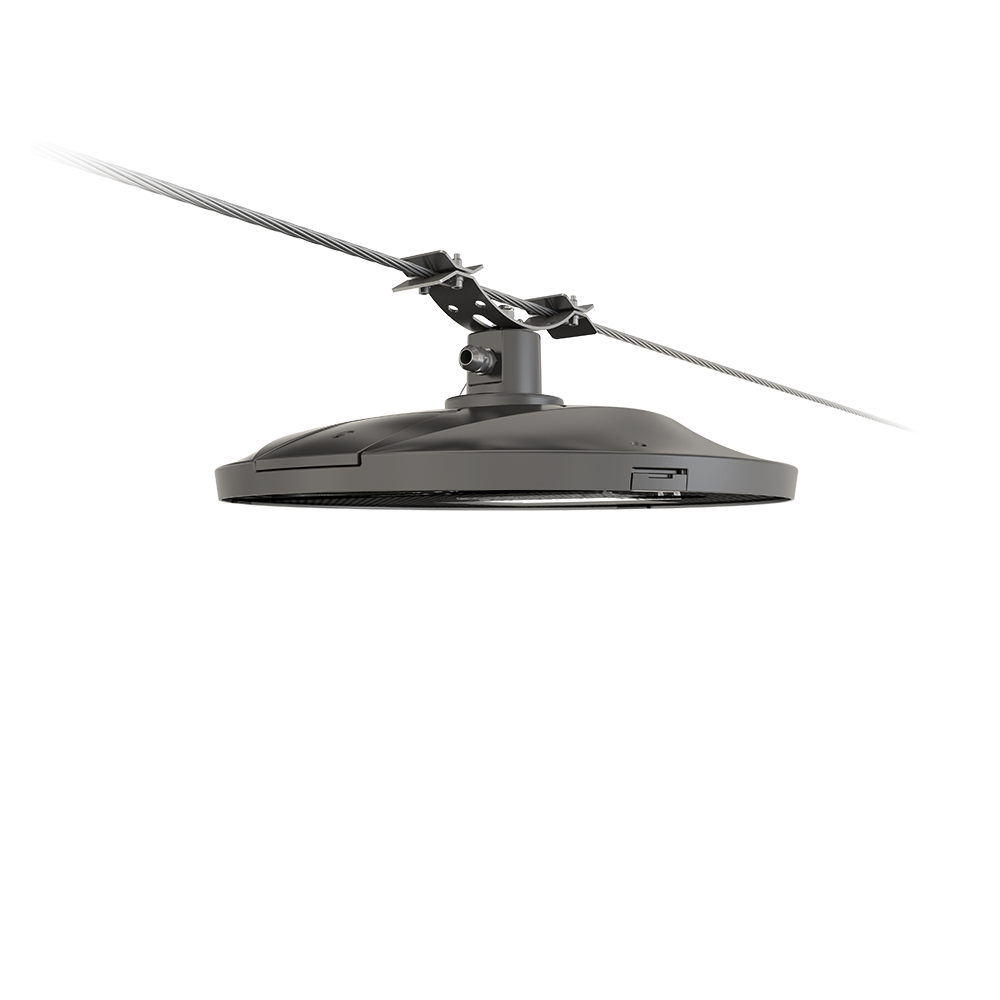

The perfect solution for catenary street lighting

COMPASS TS was created for suspended installations on a steel cable. For all those situations in which it is not possible to choose road poles, COMPASS TS makes itself perfect with its simple and linear design.

Let’s find out the two versions

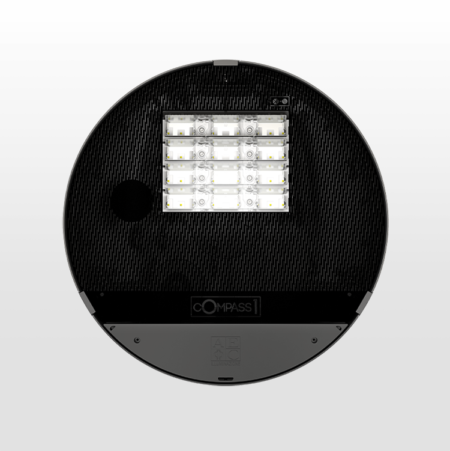

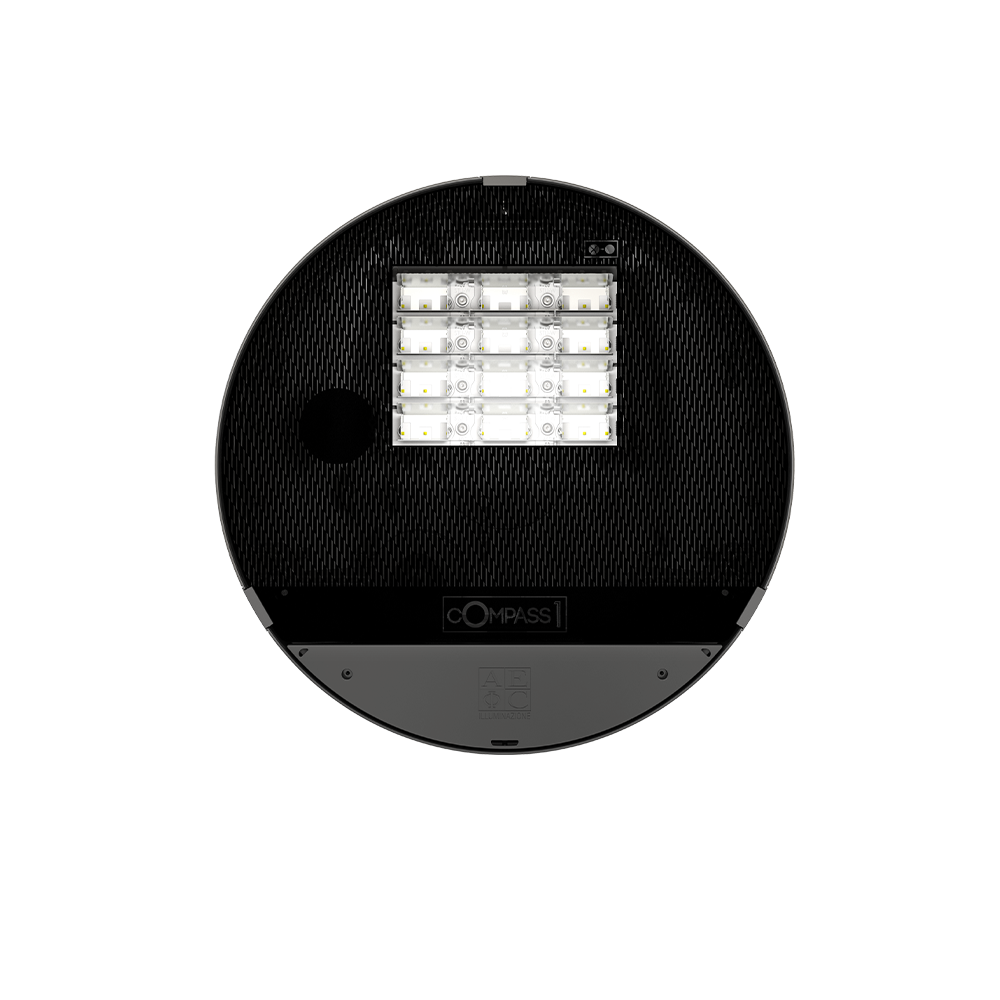

COMPASS 1 TS

Ø540 mm

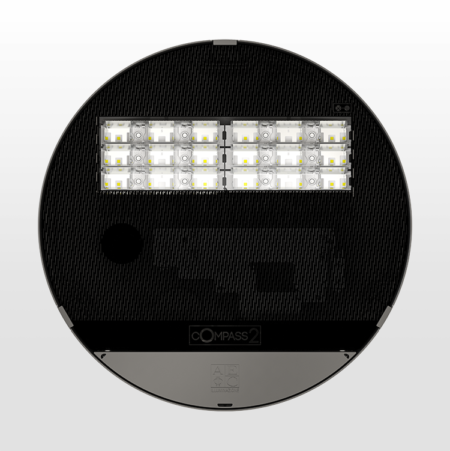

COMPASS 2 TS

Ø640 mm

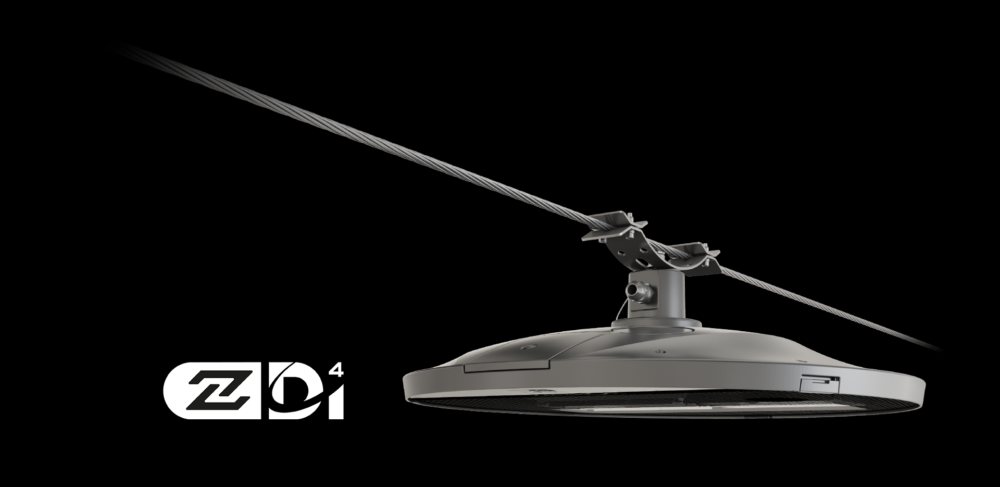

COMPASS TS is Zhaga D4i certified

A future-proof plug & play technology

The important Zhaga-D4i certification guarantees interoperability between lighting fixtures and control nodes: an advantage for buyers, installers and end-users who are faced with future-proof plug & play technology.

Discover the certification

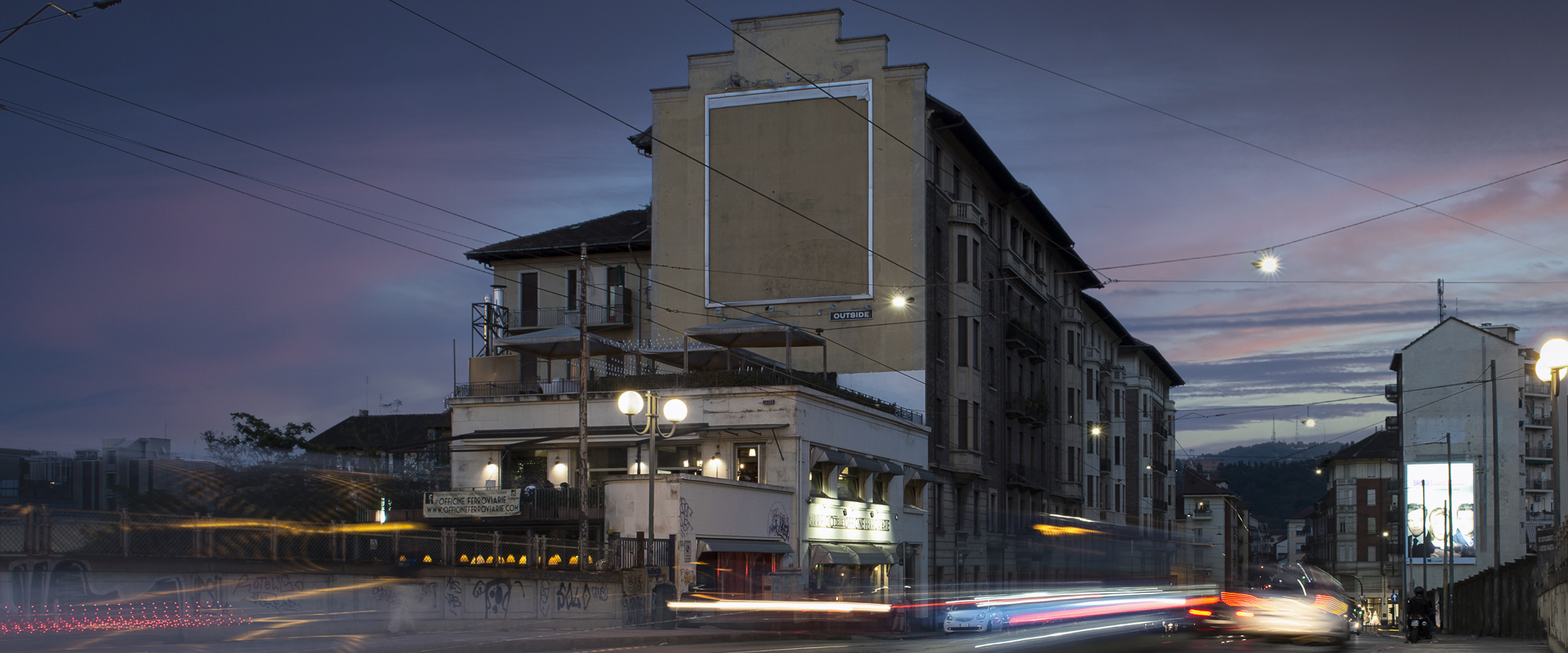

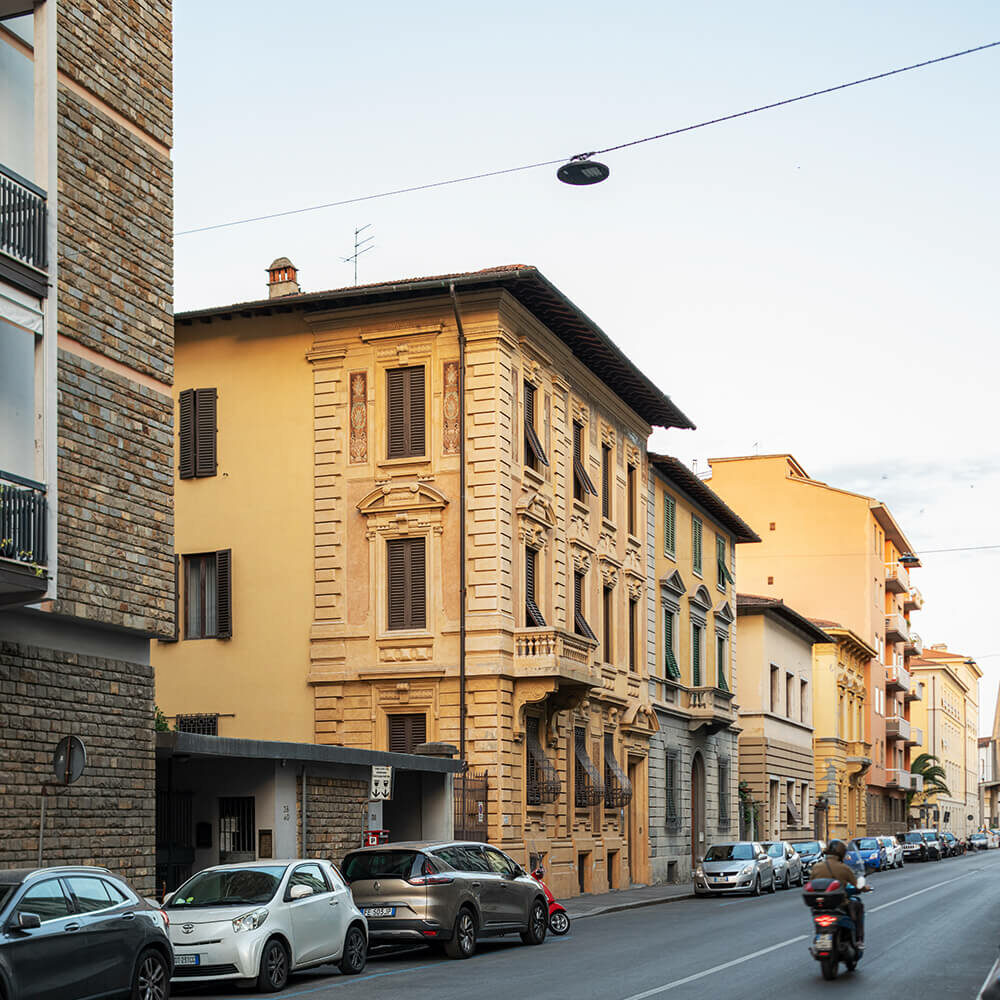

The versatility of catenary installations

COMPASS TS has been specially designed for suspended installations in the middle of the road

The versatility of catenary installations

COMPASS TS has been specially designed for suspended installations in the middle of the road

What the model includes

  • Modular optical system.

  • LED source colour temperature: 4000K (3000K optional).

  • PIXLED optical system with aluminium reflector.

  • Flat tempered glass protection screen.

  • CRI ≥70 CRI ≥80 optional.

  • Degree of protection IP66.

  • Mechanical resistance IK08.

  • Zhaga D4i certified appliance.

When is suspension useful?

A catenary luminaire is particularly suitable in historic centers where, due to lack of space or the structure of the place, it is not possible to install street poles. The suspended installation on cable is also very useful in the case of very wide city avenues.

COMPASS TS

The perfect solution for catenary street lighting

COMPASS TS

The perfect solution for catenary street lighting

You may also want to learn more…

The advantages of LED public lighting

Let’s explore it

All the solutions for urban lighting

Discover the possibilities

Increase energy savings with dimming the luminous flux

Find out how it works

The product is part of the COMPASS series

A versatile design series for any street and urban context

COMPASS

Download

Download the COMPASS TS series documentations. Authentication is required for some files.

Product sheet

COMPASS 1 TS

Download

Product sheet

COMPASS 2 TS

Download

Zhaga D4i certifications

COMPASS

Download

Mounting instructions

COMPASS

The file is reserved for registered users

Photometric database

COMPASS series

The file is reserved for registered users

3DS files

COMPASS TS

The file is reserved for registered users

2D dwg drawings

COMPASS TS

The file is reserved for registered users

RELATED
PRODUCTS

COMPASS

Urban, Street

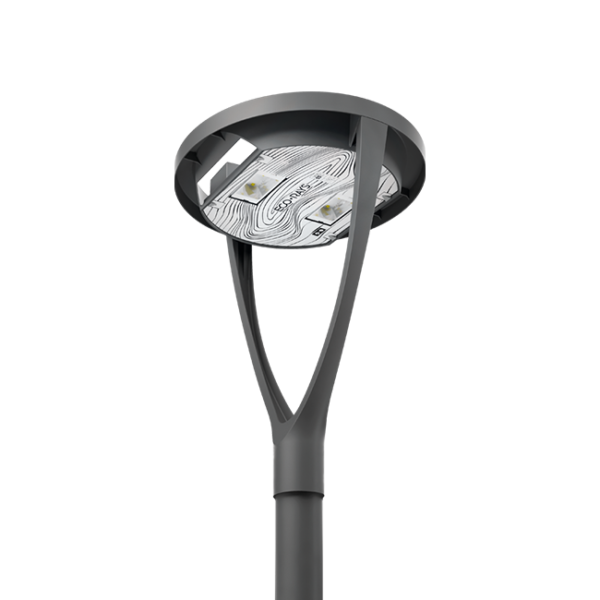

ECORAYS
